Zephyr Tempest II AK7500ASX Use, Care And Installation Manual page 13

PBI-1100A INTERNAL BLOWER COMPATIBLE WITH 10" ROUND VERTICAL DUCTING ONLY
Please turn to page 12 for instructions on installing CBI-xxxB in horizontal ducting mode.

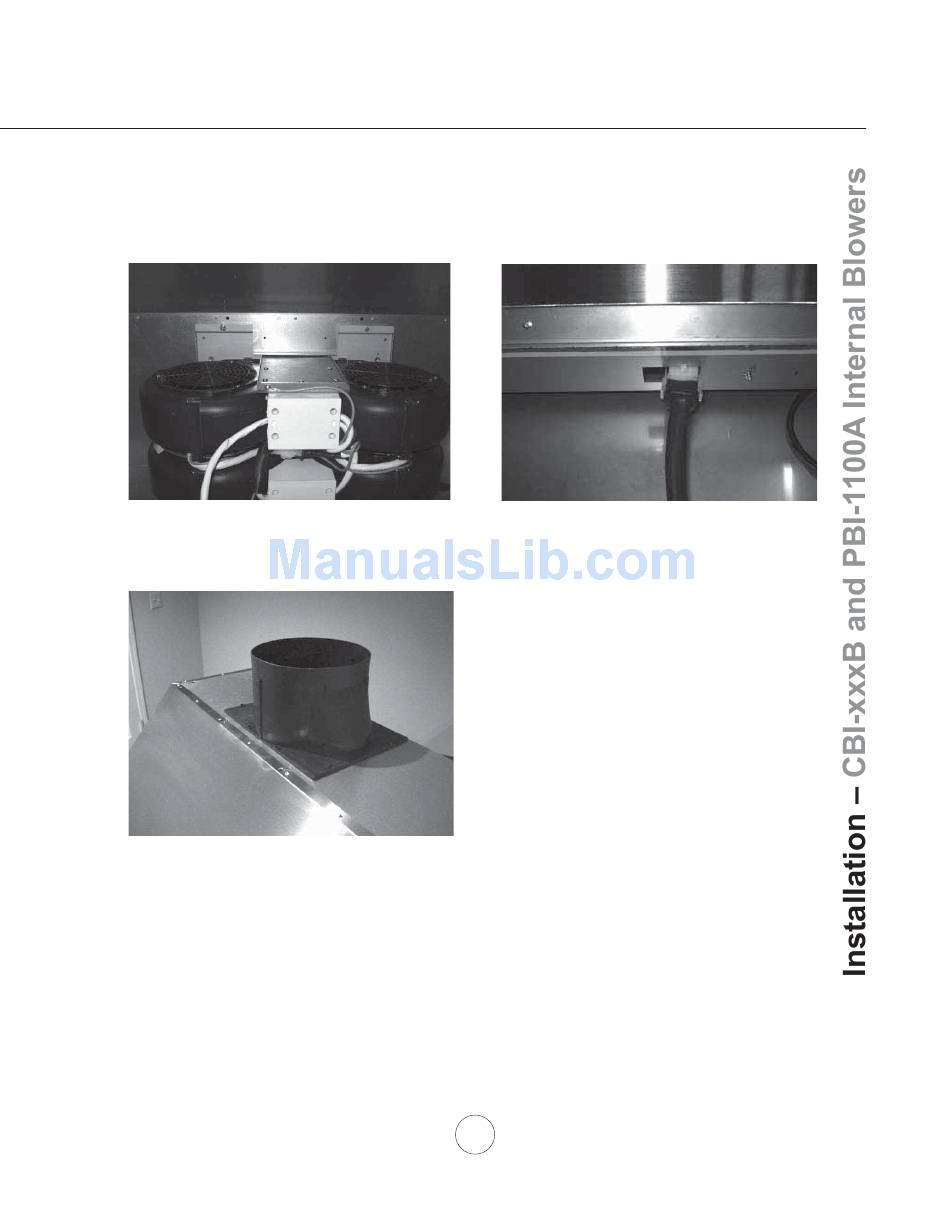

1. Position blower plate over bracket on inside
back of hood and pivot up. Secure plate to hood
with (2) 10x3/16" screws. (blower pictured is a
PBI-1100A)
3. CBI-xxxB Blower – Connect 6" round duct work
to blower collar.
PBI-110A Blower – Place 10" round adapter on
top of hood and secure with (4) M4x8 screws.
Connect 10" round duct work to 10" round
adapter.
2. Connect male end of blower wire to female plug
in the hood. (plug is located inside the hood
behind the control panel)
11
