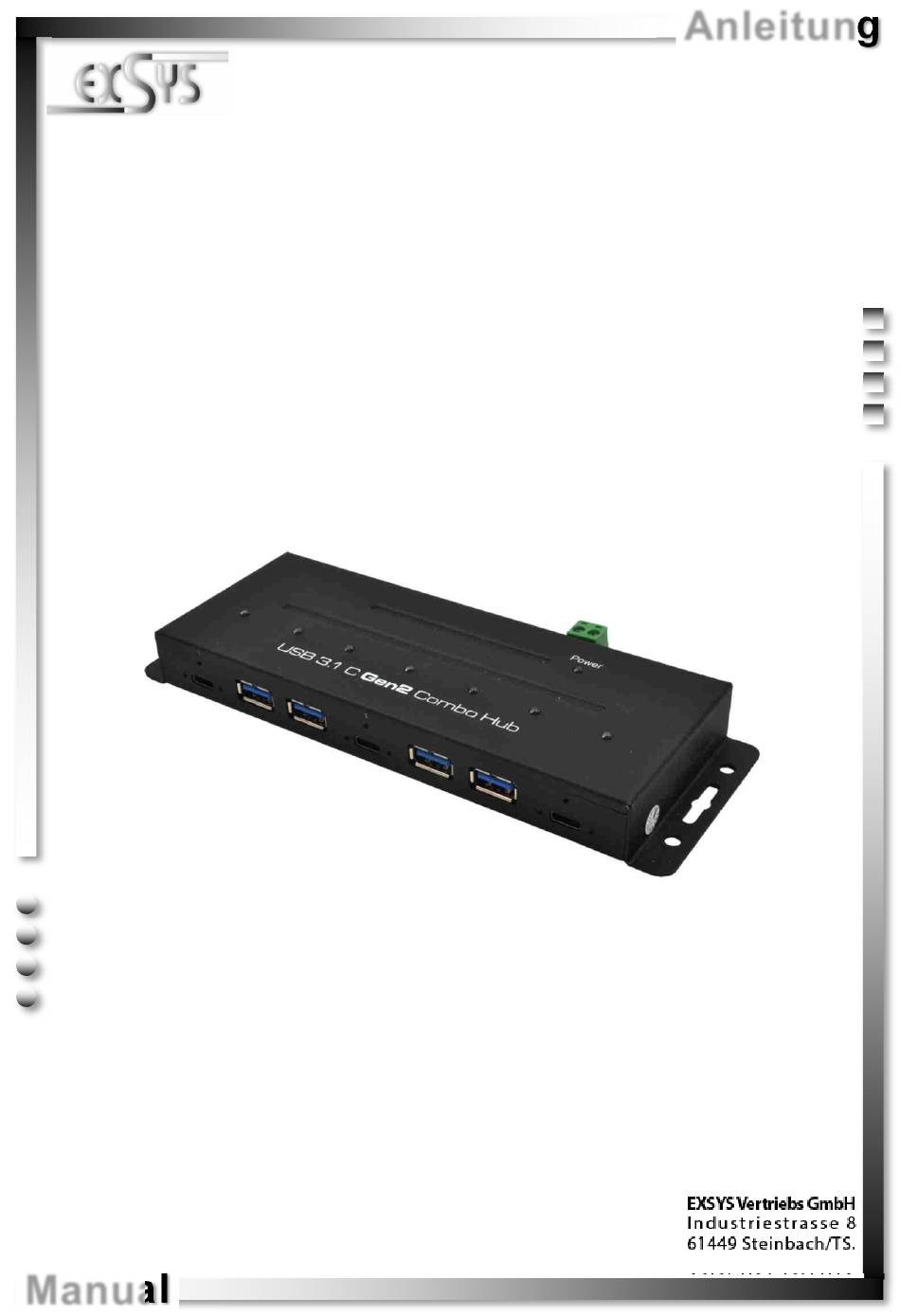

- Page 1 Anleitung EX-1247HMVS 7 Port USB 3.1 (Gen2) Metall HUB mit 15KV ESD Überspannungsschutz, verschraubbar 7 Port USB 3.1 (Gen2) Metal HUB with 15KV ESD Surge Protection, screw lock Vers. 1.0 / 15.11.18 Manual...
-
Page 2: Table Of Contents
Extent of Delivery ················································································ 8 Layout & Connections ······································································· 9-10 3.1 Layout ······································································································ 9 3.2 Connections ·························································································· 9-10 Hardware Installation ··········································································· 11 Driver Installation ················································································ 11 Cleaning ··························································································· 11 Technical Information ·········································································· 12 © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 3: Beschreibung
Deutsch 1. Beschreibung Der EX-1247HMVS ist ein USB 3.1 (Gen2) Metall HUB für bis zu 7 Endgeräte. Der Hub ist mit 4 USB-A Buchsen und 3 USB-C Buchse für Endgeräte und 1 USB-C Buchse für den Anschluss an den PC ausgestattet. Er unterstützt alle USB Anschlüsse von 1.1 bis 3.1. -
Page 4: Aufbau & Anschlüsse
Lieferumfang für optionales Upstream C-Buchse enthaltenem Netzteil externes Netzteil 3.2 Anschlüsse +12-24V T-Block: ACHTUNG!!! Schließen Sie niemals Strom an Ground an, dadurch kann Ihre Hardware zerstört werden!!! GND (Ground) +12-24V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 5 StdB_SSTX - Stecker niemals umgekehrt oder mit Gewalt einstecken. USB 3.1 (Gen2) C-Buchse: Hinweis! Durch die Doppelbelegung der Pins, kann der USB Typ-C Stecker beidseitig in die Buchse gesteckt werden. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Hardware Installation
Tuch und entfernen Sie die Verschmutzung mit leichtem Druck. Im Bereich der Anschlüsse bitte darauf Achten, dass keine Fasern des Tuchs in der Buchse hinterlas- sen werden. Verwenden Sie bitte zu Reinigung in keinem Fall ein feuchtes oder nasses Tuch! © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Technische Daten
Betriebssystem: Alle Betriebssysteme Betriebstemperatur: 0° bis 55° Celsius Lagertemperatur: -20° bis 85° Celsius Rel. Luftfeuchtigkeit: 5% bis 95% Stromversorgung: +12-24 Volt Abmessung: 180,00 x 63,00 x 24,00 mm Gewicht: 800g © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Description

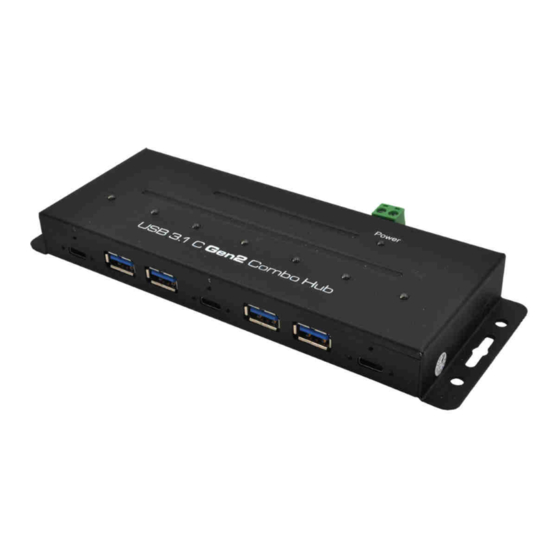

EX-1247HMVS 1. Description The EX-1247HMVS is a plug & play high-speed USB 3.1 (Gen2) metal hub for 7 USB devices. The EX-1247HMVS provides 4 USB-A Ports and 3 USB-C Ports for devices and 1 USB-C uplink Port for PC. It supports all USB connections from 1.1 to 3.1. Via a external power supply it is possible to provide a maximum of 900mA on each USB port. -
Page 9: Layout & Connections
1x USB 3.1 (Gen2) for included external optional external Upstream C-Port Power Supply Power Supply 3.2 Connections +12-24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12-24V © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved... - Page 10 Never plug in with force or in wrong direction. USB 3.1 (Gen2) C-Port: Note! By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both sides. © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 11: Hardware Installation
4. Hardware Installation Because there are large differences between PC’s, we can give you only a general in- stallation guide for the EX-1247HMVS. Please refer your computer’s reference manual whenever in doubt. 1. Connect the USB 3.1(Gen2) cable with the USB 3.1(Gen2) Upstream C-Port at the EX-1247HMVS. -
Page 12: Technical Information
All Operating Systems Operating Temperature: 32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +12-24 Volt Size: 180,00 x 63,00 x 24,00 mm Weight: 800g © Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved...
