Exsys EX-12277HMS Manual

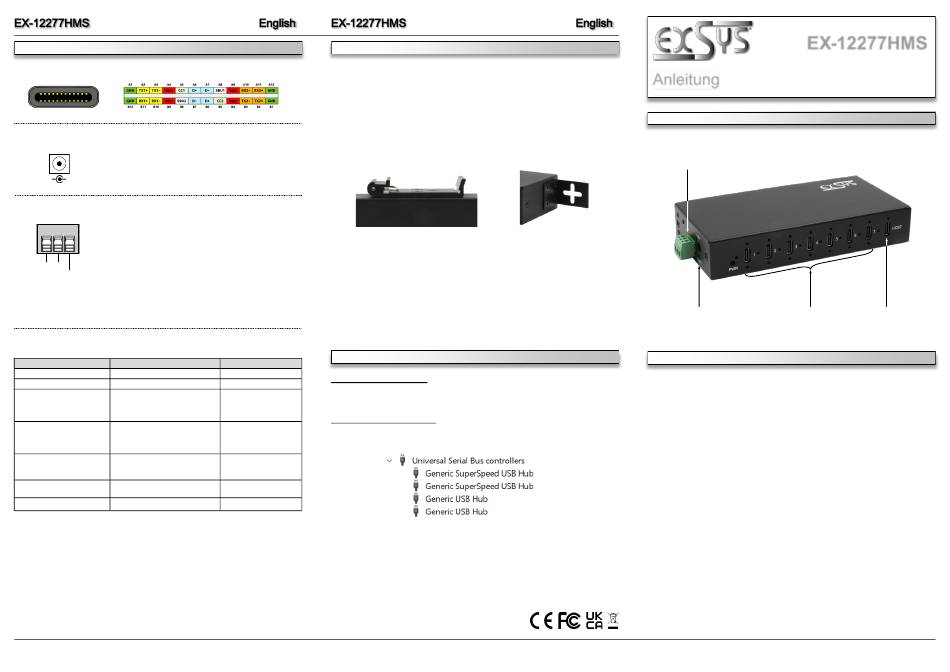

CONNECTORS
USB 3.2 Gen 2x1 C-Port:
+9V to +24V DC-Connector (5.5 x 2.1mm):
ATTENTION!
Only for use with the power supply included in the
scope of delivery or another compliant power supply!
-
+
+9V to +24V T-Block:
ATTENTION!
Please pay attention to the correct polarity!
Never connect power to GND it will destroy your
Hardware!
+V -V
Never connect the power supply to the terminal block
GND
while it is switched on!
(Ground)
Redundant power supply is possible by simultaneous use of DC-Connector and Terminal
Block. Both power supplies must use the same voltage!
USB versions overview:
USB-Version Naming
USB 1.0 Full Speed
USB 2.0 Hi-Speed
USB 3.2 Gen 1 USB 5Gbps
formerly: formerly:
USB 3.1 Gen 1 SuperSpeed USB
USB 3.0
USB 3.2 Gen 2x1 USB 10Gbps
formerly: formerly:
USB 3.2 Gen 2 SuperSpeed USB 10 Gbps
USB 3.1 Gen 2
USB 3.2 Gen 2x2 USB 20Gbps
formerly:
SuperSpeed USB 20 Gbps
USB 4 (Version 1) USB 40Gbps
USB 4.0
USB 4 Version 2 USB 80Gbps
5
HARDWARE INSTALLATION
Because there are large differences between PC's, we can give you only a general installation
guide for the EX-12277HMS. Please refer your computer's reference manual whenever in
doubt.
1. Install the EX-12277HMS on a mounting rail by using the DIN-Rail Kit or on the wall using
the Wall Mounting Brackets.
Mounting of the DIN-Rail Kit with
three screws on the rear side
2. Connect the USB 3.2 Gen 2x1 cable with the USB 3.2 Gen 2x1 Upstream C-Port at the EX-
12277HMS.
4. Now connect the power connector of the supplied power supply to the DC socket of the
hub or connect a compatible DIN-Rail power supply to the terminal block. Then plug the
mains plug of the power supply unit into a wall socket.
5. Now connect the other end from the USB 3.2 Gen 2 cable (C-Plug) to the USB C-Port at
your PC.
DRIVER INSTALLATION
Max. data rate
12 Mbit/s
All Operating Systems
480 Mbit/s
5 Gbit/s
After the hardware installation the Operating System will recognize the EX-12277HMS
automatically and install the drivers.
CHECK INSTALLED DRIVER
10 Gbit/s
Open the >Device manager<. Now you should see at „USB-Controller" the following new entry:
20 Gbit/s
40 Gbit/s
80 Gbit/s
If you see this or a similar information the hub is installed correctly.
Germany: Switzerland:
EXSYS Vertriebs GmbH EXSYS Vertriebs GmbH
Industriestrasse 8 Dübendorfstrasse 17
61449 Steinbach 8602 Wangen
www.exsys.ch
www.exsys.de
Mounting the Wall Mounting
Bracket with four screws on
each side
Italy:
EXSYS Italia Srl
Via Belvedere, 45/B
I-22100 Como
www.exsys.it
6
EX-12277HMS
Anleitung Anleitung
Vers. 1.1, 23.10.24
AUFBAU
9-24V T-Block für
optionales Netzteil
9-24V DC-Buchse für 7x USB 3.2 Gen 2x1
mitgeliefertes Netzteil Downstream C-Ports
BESCHREIBUNG & TECHNISCHE DATEN
Der robuste und industrietaugliche EX-12277HMS ist ein USB 3.2 Gen 2x1 Metall-Hub für bis
zu sieben Endgeräte, der an der Wand oder auf einer Hutschiene montiert werden kann. Er wird
über ein USB-C Kabel mit dem Host-PC verbunden und verfügt über sieben USB-C 3.2 Gen
2x1 Ports für Endgeräte mit einer hervorragenden Performance von bis zu 10 Gbit/s
(SuperSpeed USB 10Gbps). Über die externe Stromversorgung können bei einer
Maximalleistung von 57 Watt bis zu 2.4 A pro Port zur Verfügung gestellt werden. Dies
ermöglicht das problemlose Aufladen von iPhone, iPad, Smartphone und Tablet. Die
Stromversorgung erfolgt über das mitgelieferte Steckernetzteil oder ein optional erhältliches DIN
-Rail Netzteil (Self-Power).
Kompatibilität: USB 1.1, 2.0 & 3.0/ 3.1/ 3.2
Betriebssysteme: Alle Betriebssysteme
Anschlüsse: 8x USB 3.2 Gen 2x1 C-Buchse, 1x DC-Buchse 9-24V,
1x Terminal Block 9-24V
Lieferumfang: EX-12277HMS, Netzteil (12V/5A),
USB 3.2 Gen 2x1 Kabel (verschraubbar) 1m,
DIN-Rail Kit, Wandmontagehalterung, Anleitung
1
1x USB 3.2 Gen 2x1
Upstream C-Port
