EX-1247HMVS
3. Layout & Connections

3.1 Layout

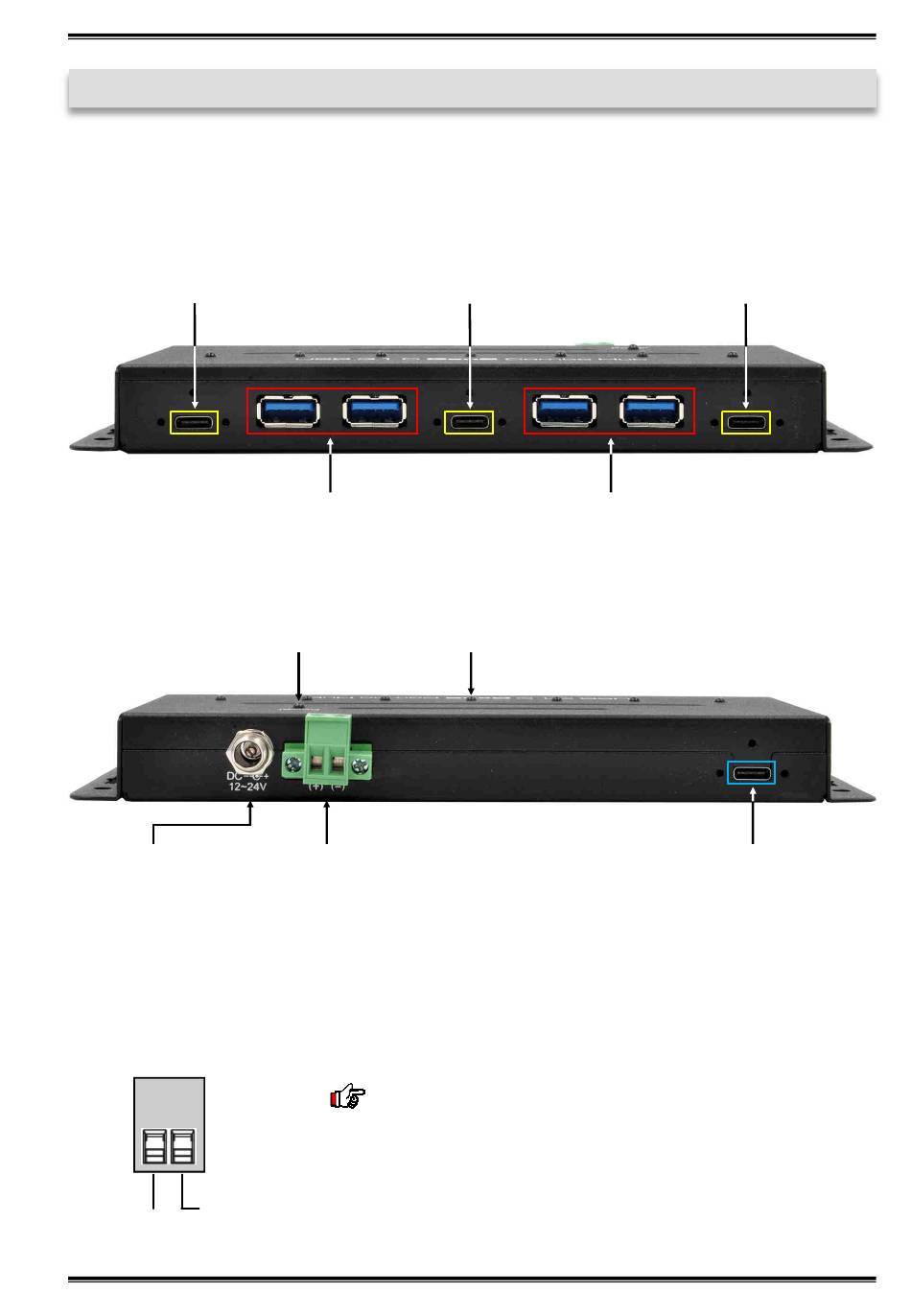

Front:
1x USB 3.1 (Gen2)
Downstream C-Port
Back:
12-24V Connector
for included external
Power Supply

3.2 Connections

+12-24V T-Block:
GND (Ground)
+12-24V
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
1x USB 3.1 (Gen2)
Downstream C-Port
2x USB 3.1 (Gen2)
Downstream A-Port
for each Port
Power LED
12-24V T-Block for
optional external
Power Supply
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
2x USB 3.1 (Gen2)
Downstream A-Port
Status LED
