BEA VIO-D User Manual

User's Guide for product version 0200 and higher
See product label for serial number
DESCRIPTION

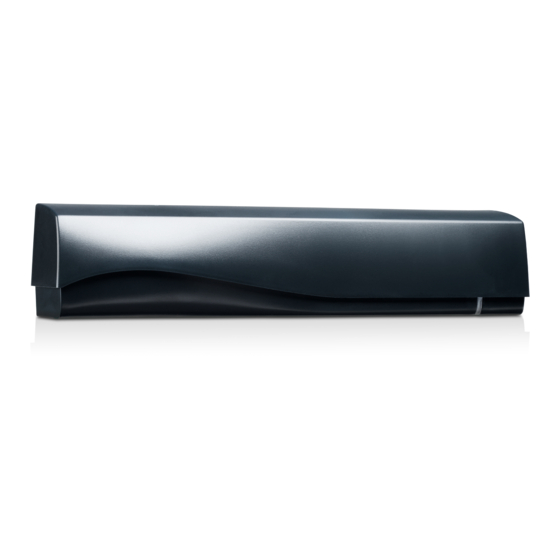

The VIO-DT 1&2 are opening and safety sensors for automatic sliding doors. They combine a motion radar sensor for opening
the door with a double failsafe active infrared curtain for the protection of users.
1
2
3
4
TECHNICAL SPECIFICATIONS
Supply voltage:
Power consumption:
Mounting height:
Sensitivity of the test input:
Temperature range:
Degree of protection:
Noise:
Expected lifetime:
Conformity:
Detection mode:
Technology:
Angle:
Output:
Hold time output signal:
Response time on test request:

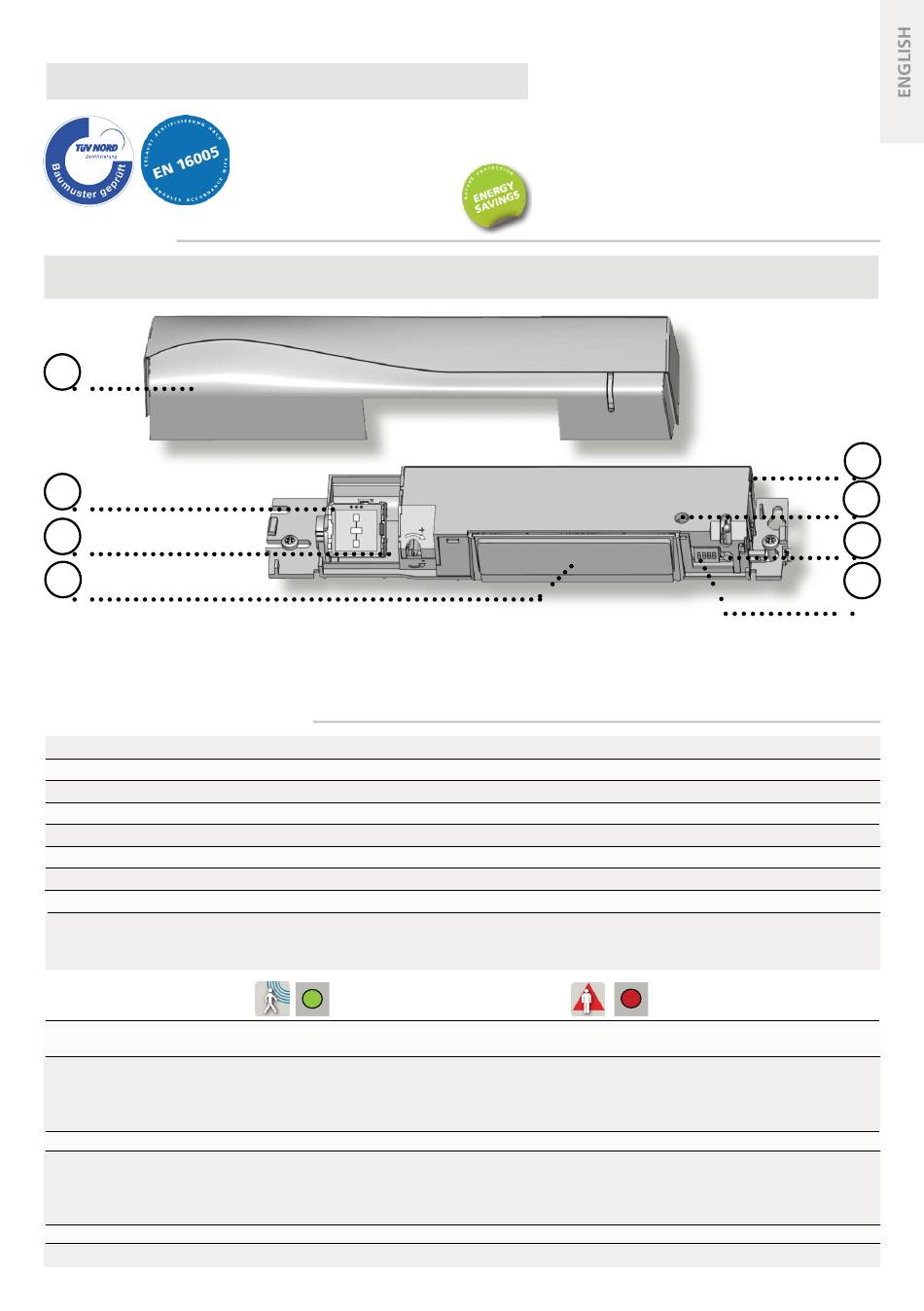

1. cover
2. radar antenna
(wide field)
3. radar field size adjustment
4. IR-prism (2 m)
12 V - 30 V DC -5%/+10%
< 2.2 W
1.8 m to 3 m
< 1 V : Log. L; > 10 V: Log. H (max. 30 V)
-25 °C to +55 °C
IP54
< 70 dB
20 years
EN 300 440; EN 301 489-1; EN 301 489-3; EN 62311; EN ISO 13849-1
(under the condition that the door control system monitors the sensor at least once per door cycle);
61496-1 ; EN 12978; EN 16005
(ESPE Type 2)
GREEN
LED
Motion
Min. detection speed: 5 cm/s
Microwave doppler radar
Transmitter frequency: 24.150 GHz
Transmitter radiated power: < 20 dBm EIRP
Transmitter power density: < 5 mW/cm2
From 15 ° to 50 ° vertical (adjustable)
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.5 s
Specifications are subject to changes without prior notice. All values measured in specific conditions.
VIO-DT 1&2
OPENING & SAFETY SENSOR
FOR AUTOMATIC SLIDING DOORS
VIO-DT1: energy-saving unidirectional sensor
VIO-DT2: bidirectional sensor
5. main connector
6. IR-angle adjustment
7. push button for setup or DIP-setting confirmation
8. DIP-switch
(to be operated from SELV compatible power supplies only)
Presence
Typical response time: <256 ms
Active infrared with background analysis
Spot diameter: 0.1 m (typ)
Number of spots: 24
Number of curtains: 2
From -4 ° to +4 ° (adjustable)
Solid-state-relay
(free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
0.3 s to 1 s (not adjustable)
Typical: < 5 ms
Performance level «c»
EN 61508 ; EN
(SIL2)
RED
LED
5
6
7
8
CAT2
