BEA VIO-M1 User Manual

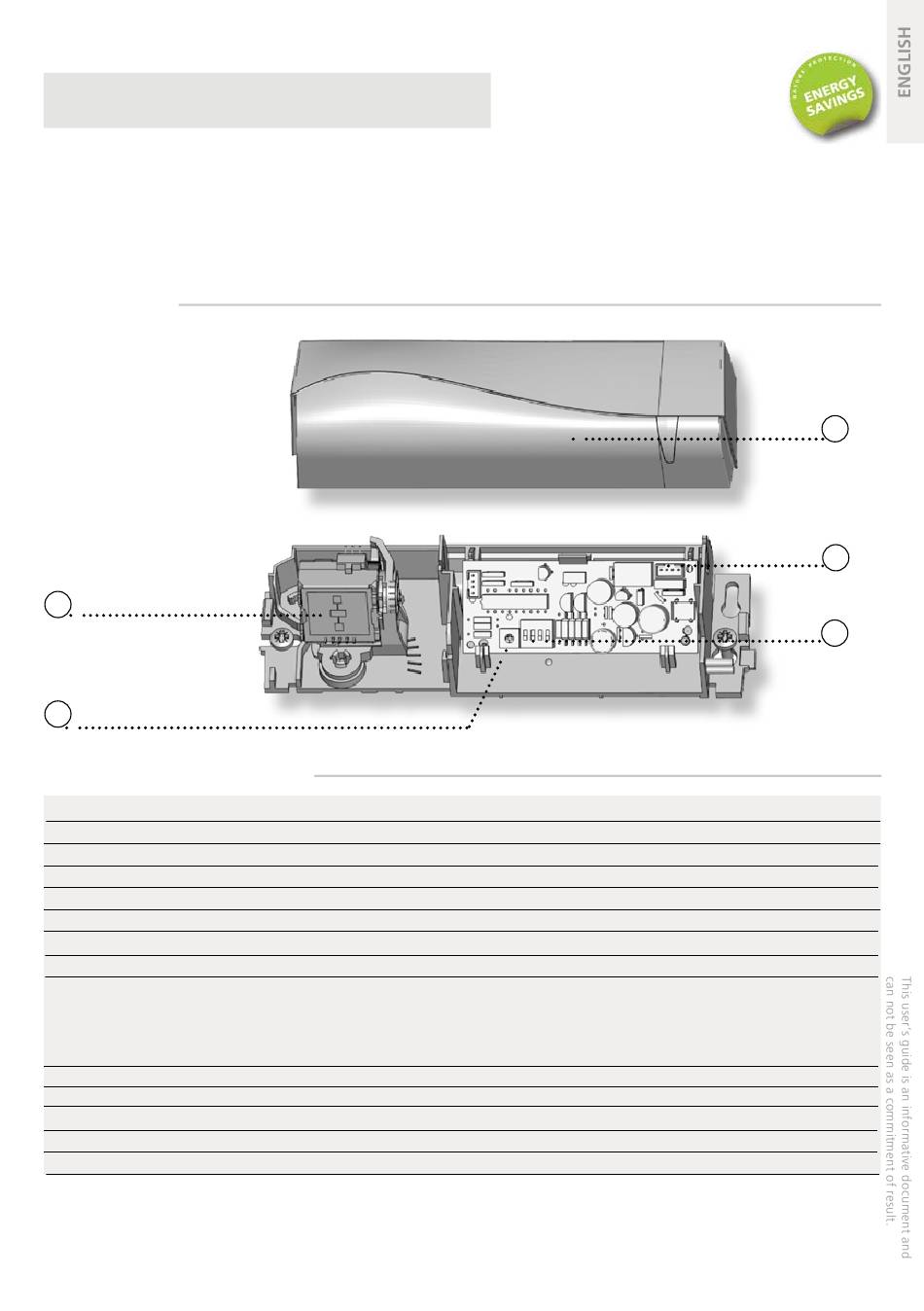

DESCRIPTION
1. radar antenna
2. potentiometer
3. cover
4. main connector
5. DIP-switch
1
2
TECHNICAL SPECIFICATIONS
Technology:
Transmitter frequency:
Transmitter radiated power:
Transmitter power density:
Detection mode:
Min. detection speed:
Supply voltage*:
Max power consumption:
Output*:
Max. contact voltage:
Max. contact current:
Max. switching power:
Mounting height:
Degree of protection:
Temperature range:
Dimensions:
Tilt angles:
* External electrical sources must be within specified voltages, max 15W and ensure double insulation from primary voltages.
microwave doppler radar
24.150 GHz
< 20 dBm EIRP
< 5 mW/cm²
motion
5 cm/s (measured in sensor axis)
12 V to 24 V AC ±10% (50 - 60 Hz); 12 V to 24 V DC +30% / -10%
< 2 W
relay (free of potential change-over contact)
42 V DC/AC peak
1 A (resistive)
15 W
from 1.8 m to 3 m
IP54 (IEC/EN 60529)
from -20 °C to + 55 °C
180 mm (L) x 58 mm (H) x 50 mm (W)
15° to 45° vertical; -15° to +15° lateral
Specifications are subject to changes without prior notice. Measured in specific conditions.

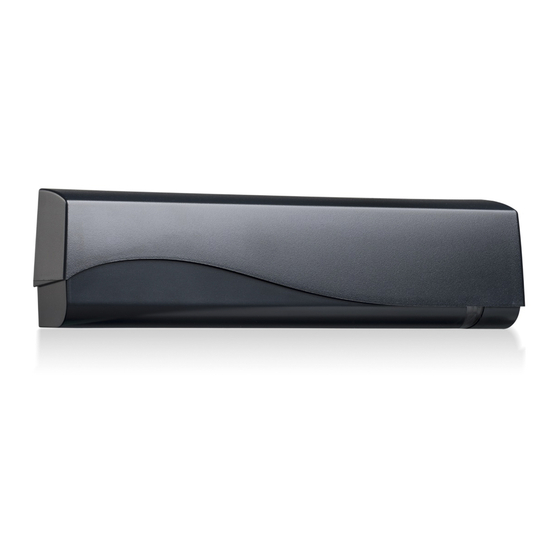

VIO-M1
UNIDIRECTIONAL OPENING SENSOR
FOR AUTOMATIC SLIDING DOORS
User's Guide for software version 0100 and higher
(refer to tracking label on product)
3
4
5
