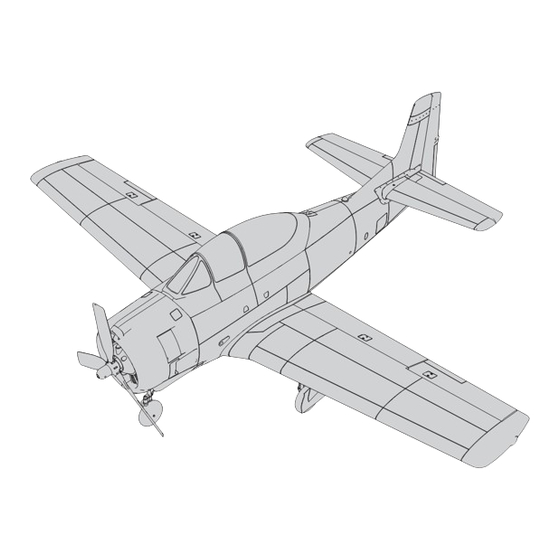

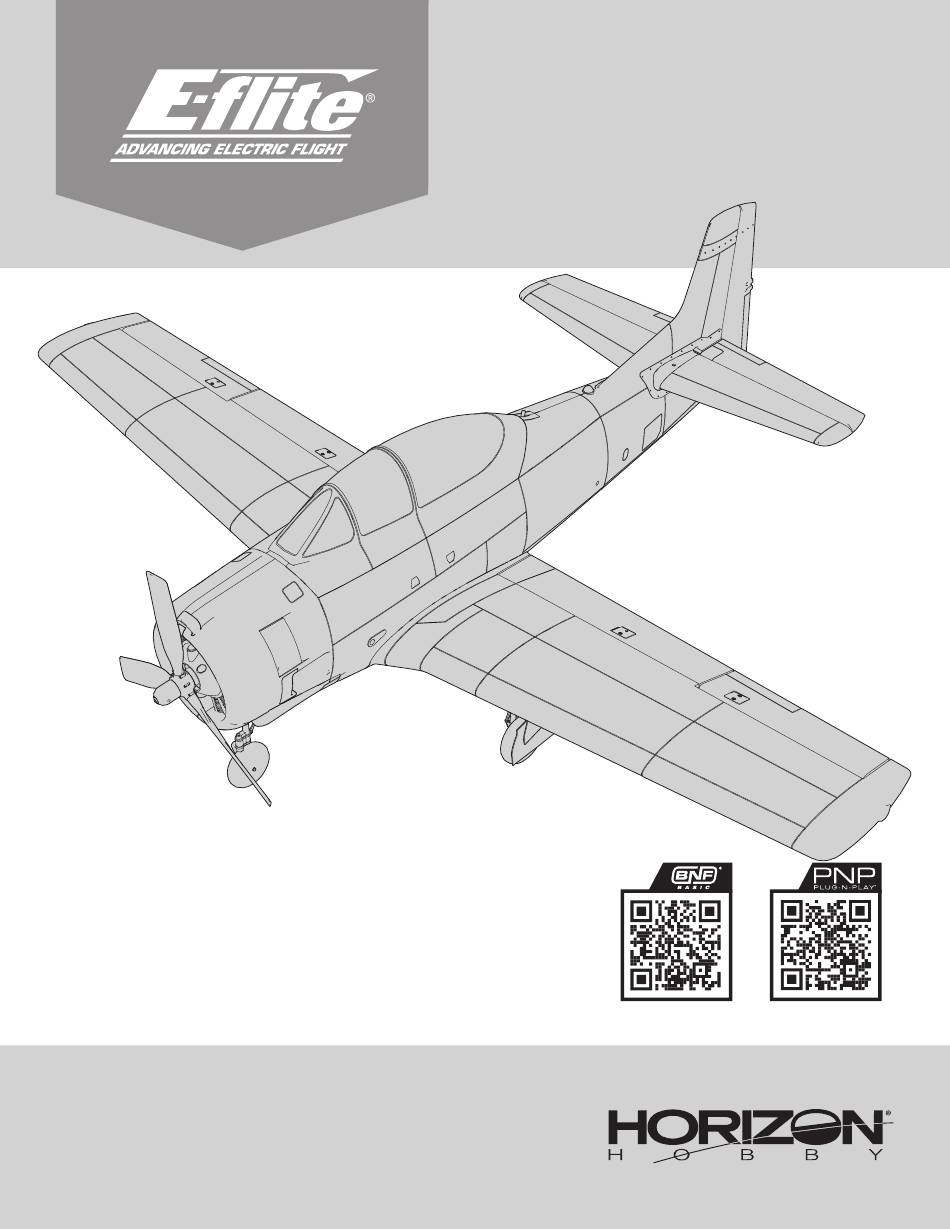

T-28 1.2m
Scan the QR code and select the Manuals and Support quick links from
the product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite
die Quicklinks Handbücher und Unterstützung, um die aktuellsten
Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support
sur la page du produit pour obtenir les informations les plus récentes sur
le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto
EFL18350
EFL18375
dalla pagina del prodotto per le informazioni manuali più aggiornate.
Instruction Manual
Bedienungsanleitung
Manuel d'utilisation
Manuale di Istruzioni
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Horizon Hobby E-flite T-28 Trojan 1.2m EFL18350
Summary of Contents for Horizon Hobby E-flite T-28 Trojan 1.2m EFL18350
- Page 1 T-28 1.2m Scan the QR code and select the Manuals and Support quick links from the product page for the most up-to-date manual information. Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
- Page 2 This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance.
-
Page 3: Table Of Contents
Box Contents Quick Start Information 1. Blank (Acro) Model 2. Wing Type: 1 Aileron, 1 Flap Transmitter Setup 3. Servo Reversing: Gear Reversed, All Others Normal 4. Travel Adjust (All Surfaces): 100% High Rate Low Rate Aileron p = 16mm p = 9mm (at root) q = 16mm... -
Page 4: Select Technology
SAFE Select Technology ® The BNF Basic version of this airplane includes SAFE Select technology which can SAFE Select can be configured three ways: offer an extra level of protection in flight. Use the following instructions to make the • SAFE Select Off: Always in AS3X mode SAFE Select system active and assign it to a switch. -
Page 5: Model Assembly
WARNING: Assemble the aircraft, program your radio control system, bind the aircraft, and verify correct operation before installing the propeller. Never attempt to program the radio components, assemble the aircraft or perform maintenance of any kind without removing the propeller or engaging throttle cut. Serious injury could result if the motor starts inadvertently with the propeller still attached. -
Page 6: Receiver Selection And Installation Pnp
Wing Installation M3 x 20mm counter sunk 1. Connect the Y harnesses as shown. machine screw Flaps Main Gear Retracts Nose Gear Retract Ailerons Note: Verify polarity when connecting servo leads. The included Y-harnesses have a yellow signal wire which connects to the white wire on the servo lead. •... - Page 7 Connect the Pushrods to the Control Surfaces Control Horn and Servo Arm Settings Horns Arms The table to the right shows the factory settings for the control horns and servo arms. Fly the aircraft at factory settings before making changes. NOTICE: If control throws are changed from the factory settings, the AR631 Elevator gain values may need to be adjusted.
-
Page 8: General Binding Tips And Failsafe Bnf
General Binding Tips and Failsafe BNF • The included receiver has been specifically programmed for operation of this • Once bound, the receiver will retain its bind settings for that transmitter until aircraft. Refer to the receiver manual for correct setup if the receiver is replaced. you re-bind. -
Page 9: Select Switch Designation
SAFE Select Switch Designation BNF ® Forward Programming Once SAFE Select is enabled, you can choose to fly in SAFE mode full-time, or assign a switch. Any switch on any channel between 5 and 9 can be used on your Assign the SAFE Select channel through forward programming on your compatible transmitter. -
Page 10: Battery Installation And Esc Arming
Battery Installation and ESC Arming The Spektrum Smart 2200mAh 4S 30C Li-Po battery (SPMX22004S30) is ™ recommended for best performance. Refer to the Optional Parts List for other recommended batteries. If using a battery other than those listed, the battery should be within the range of capacity, dimensions and weight of the Spektrum Li-Po battery pack to fit in the fuselage. -
Page 11: Control Response Test
AS3X Control Response Test ® WARNING: Do not perform any testing or maintenance with the propeller Aircraft movement AS3X Reaction installed on the aircraft. Serious injury or property damage could result from the motor starting inadvertently. This test ensures that the AS3X control system is functioning properly. Assemble the aircraft and bind your transmitter to the receiver before performing this test. -
Page 12: Propeller Installation
Propeller Installation WARNING: Do not install the propeller until the aircraft has been completely assembled, all the systems have been checked thoroughly and you are located at a suitable flying site. WARNING: Never install a cracked, nicked or otherwise damaged propeller. -
Page 13: In Flight Trimming
In Flight Trimming During your first flight, trim the aircraft for level flight at 3/4 throttle with flaps up. Make small trim adjustments with your transmitter’s trim switches to straighten the aircraft’s flight path. 3 Seconds After adjusting the trim, do not touch the control sticks for 3 seconds. This allows the receiver to learn the correct settings to optimize AS3X performance. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Throttle not at idle and/or throttle trim too high Reset controls with throttle stick and throttle trim at lowest setting Aircraft will not Throttle servo travel is lower than 100% Make sure throttle servo travel is 100% or greater respond to throttle but responds to other Throttle channel is reversed... -
Page 15: Replacement Parts
Replacement Parts Recommended Items Part # Description Part # Description EFL1228 Motor X-Mount: Rare Bear SPMAR631 AR631 6CH AS3X/SAFE Receiver EFL8302 Prop Adapter Hex 27mm: T-28 1.2 SPMR6775 NX6 6 Ch Transmitter Only EFL8307 Wheel Set: T-28 1.2 SPMX223S30 2200mAh 3S 11.1V Smart G2 30C; EFL8312 Servo Wire Tape: T-28 1.2 SPMX224S30... -
Page 16: Limited Warranty
What this Warranty Covers to better answer your questions and service you in the event that you may need Horizon Hobby, LLC, (Horizon) warrants to the original purchaser that the product any assistance. For questions or assistance, please visit our website at www. -
Page 17: Fcc Information
Champaign, IL 61822 USA Directive - Amending 2011/65/EU Annex II 2015/863. EU Importer of Record: T-28 1.2m BNF Basic (EFL18350); Hereby, Horizon Hobby, LLC declares that the Horizon Hobby, GmbH device is in compliance with the following: EU Radio Equipment Directive 2014/53/ Hanskampring 9 EU;... - Page 18 E-flite, Avian, DSM, DSM2, DSMX, Bind-N-Fly, BNF, the BNF logo, Plug-N-Play, AS3X, SAFE, the SAFE logo, ModelMatch, IC3, EC3, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc.
