Exsys EX-6069 User Manual

EX EX- EX - - 6069 6069 6069
HARDWARE INSTALLATION :
Because the designs of computers are different, only general installation instructions are
given. Please refer your computer's reference manual whenever in doubt.
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available & correct expansion slot ( see compatibility at technical informa-
tion above) and remove its covers from the rear panel of your computer.
4. Align the card with the expansion slot, and then gently but firmly, insert the card. Make
sure the card is seated and oriented correctly.
5. Then connect the card with a screw to the rear panel of the computer.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION :
Windows
After starting Windows it recognizes a new "Controller" and opens the hardware assis-
tant. Please choose manual installation and put the driver CD into your CD-Rom drive.
Now enter the Path "D:\LAN\Realtek\RTL8110SC" and then the directory of your
operating system "98SE_ME_2K_XP_XP64" or "Vista_Vista64" into the box for the
Path/Source and click at >next/continue<. For Server 2003 please also choose
"98SE_ME_2K_XP_XP64" and for Server 2008 choose "Vista_Vista64". Now Win-
dows searches for the drivers in the specified directory. Follow the hardware assistant
and finish the installation. If Windows recognizes other new devices repeat the above
described steps. If you experience any problems installing the drivers you may also use
the "Setup.exe" from the same folder. Attention! Restart Windows in any case after
installing the drivers.
CHECK INSTALLED DRIVER:
Open the >Device manager< . Now you should see at "Network" the following new entry:
<Realtek 8110 Family PCI Gigabit Ethernet Controller>.
If you see this or a similar information the card is installed correctly.
MAC:
The drivers are located in the following folder on our driver CD:
"D:\LAN\Realtek\8110SC\MacOS"
Because each individual version of MacOS is different, sadly we cant provide a installa-
tion instruction. Please refer to the installation manual for Ethernet ports from your
MacOS version! In some newer versions the card will even be installed automatically
after starting the OS.
Unix/Linux:
The drivers are located in the following folder on our driver CD:
"D:\LAN\Realtek\8110SC\Unix(LINUX)"
Because each individual version/distribution and kernel version of Unix/Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual for
Ethernet ports from your Unix/Linux version! In some newer versions the card will even
be installed automatically after starting the OS.
5
English English English EX EX- EX - - 6069 6069 6069 English English English
Bedienungsanleitung
AUFBAU :
Status LED´s
RJ45 Anschluss
BESCHREIBUNG & TECHNISCHE DATEN :

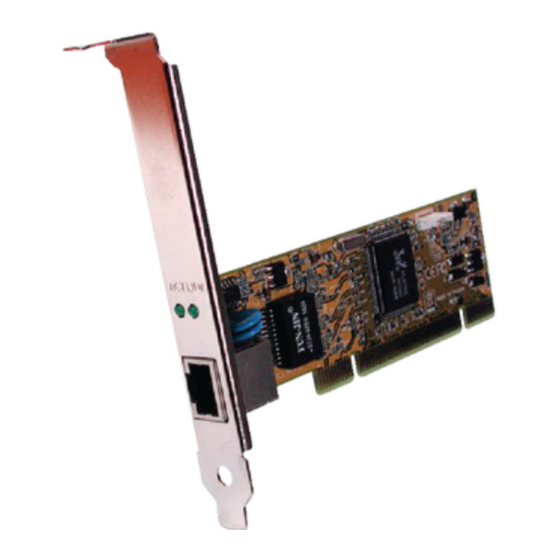

Die EX-6069 ist eine high speed Gigabit Ethernet PCI Karte. Sie ist mit einem externen
Port ausgestattet. Sie unterstützt alle PCI und PCI-X Slots mit 33Mhz. Der PCI Bus
unterstützt optimal die Leistung des schnellen RealTek Chip-Sets. Die EX-6069 gewähr-
leistet so eine sichere Datenübertragung und exzellente Performance von bis zu
1000Mbit pro Sekunde! Es ist nicht möglich die I/O Adressen und Interrupts manuell
einzustellen. Die Einstellungen werden vom System (BIOS) und beim Installieren des
Betriebssystems automatisch vorgenommen. Bei der EX-6069-L handelt es sich um eine
LowProfile Karte mit 8cm Bügel für schmale Server Gehäuse.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
JUMPER EINSTELLUNG & ANSCHLÜSSE:
RJ45 Anschluss:
Status LED´s:
6
Bedienungsanleitung
Vers. 1.0 / 05.03.09
PCI & PCI-X, 32bit, 33Mhz
98SE/ME/2000/XP/Vista/Server 2003/2008/CE/MAC/Linux/Unix
1 x RJ45 Gigabit Ethernet Anschluss
EX-6069, Anleitung, Treiber CD
CE
/ FCC / RoHS / WEEE DE97424562 / WHQL
RJ45 Anschluss:
Pin Signal Pin
1 BI_DA+ 4 BI_DC+
2 BI_DA- 5 BI_DC-
3 BI_DB+ 6 BI_DB-
LINK / Verbunden
ACT LAN Daten
1
Realtek
Chipset
Signal Pin Signal
7 BI_DD+
8 BI_DD-
