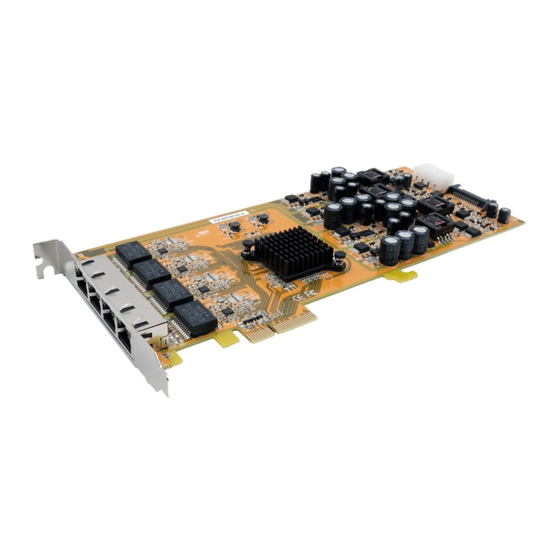

4-Port PoE (PSE) Gigabit Ethernet PCIe Card
1. Introduction
Thank you for purchasing this Quad Channel PoE (PSE) Gigabit Ethernet PCI
Express Card. It is the fastest LAN host adapter available in the market that is
specially designed to connect 4 channel gigabit LAN interface to any computer with
PCIe (PCI Express, 4-lane) slots. It delivers isolated 48V DC power over Ethernet
cable for PoE (PD) devices. It also supports crossover detection and
auto-correction feature for the easy network cabling.
Features:
✓
Supports 4 PoE (PSE) Gigabit Ethernet Ports
✓
Integrated 10/100/1000 Transceiver
✓
Supports PoE Specifications IEEE 802.3at Type 1 and 2
✓
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and
Segmentation Task-offload (Large send v1 and v2) support
✓
Supports Jumbo Frame to 9K bytes
✓
Fully Compliant with IEEE 802.3 IEEE 802.3u, IEEE 802.3ab
✓
Supports Win98SE, ME, 2K, XP, XP64, Vista, Win7, 8 and others

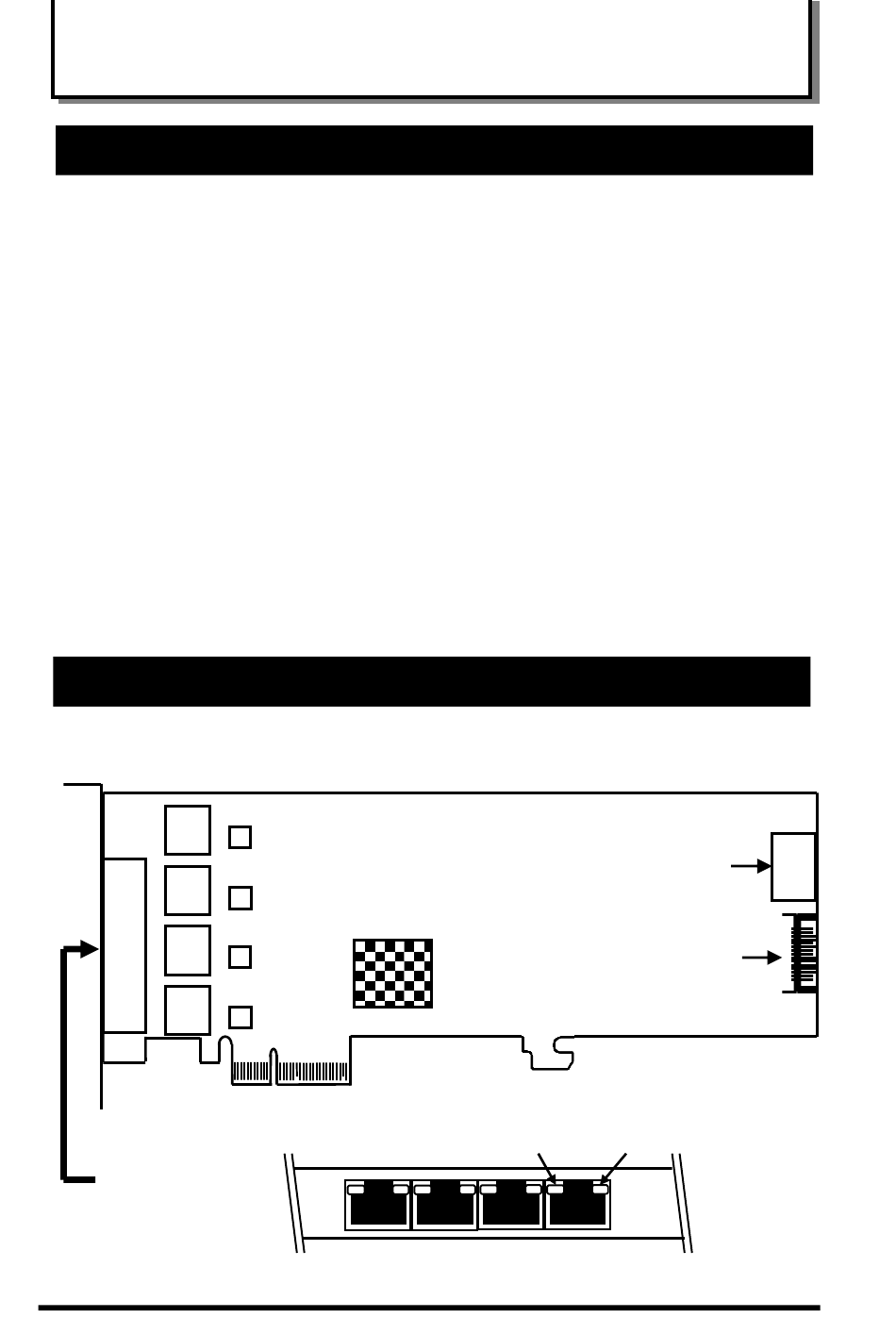

2. Board and Bracket Layout
RJ45 Connectors:
EX-6074PoE
PoE On LEDs
(Yellow)
CH1
CH2
CH3
1
J2:
Large 4-pin AUX
Power Connector
J3:
SATA15-pin AUX
Power Connector
Link (Activity) LEDs
(Green)
CH4
Advertisement
Table of Contents
Related Manuals for Exsys EX-6074PoE
Summary of Contents for Exsys EX-6074PoE
- Page 1 EX-6074PoE 4-Port PoE (PSE) Gigabit Ethernet PCIe Card 1. Introduction Thank you for purchasing this Quad Channel PoE (PSE) Gigabit Ethernet PCI Express Card. It is the fastest LAN host adapter available in the market that is specially designed to connect 4 channel gigabit LAN interface to any computer with PCIe (PCI Express, 4-lane) slots.
- Page 2 4-Port PoE (PSE) Gigabit Ethernet PCIe Card 3. Installing the Gigabit Ethernet PCIe Card Due to the hot-plug feature of the PCI Express, the installation of the PCIe Quad Channel Gigabit Ethernet card is quite straightforward. Turn the system power OFF before installation! Use static electricity discharge precautions.
- Page 3 4-Port PoE (PSE) Gigabit Ethernet PCIe Card 4. Windows Driver Installation The Gigabit Ethernet drivers are shipped in the following folder of the driver CD. Please browse to the corresponding driver folder when Windows ask you to specify the driver location. Then follow the on-screen instructions of the Windows to complete the installation.
- Page 4 4-Port PoE (PSE) Gigabit Ethernet PCIe Card 4 PCI-to-PCI bridge devices appeared...
