Dual Channel Gigabit Ethernet PCIe Card,
1. Introduction
Thank you for purchasing this Dual Channel Gigabit Ethernet PCI Express Card with
4KV Isolation. It is the fastest LAN host adapter available in the market that is
specially designed to connect dual channel 4KV isolated gigabit LAN channels to
any computer with PCIe (PCI Express) slots. It supports crossover detection and
auto-correction feature for the easy network cabling.
Features:
✓
Fully PCI Express Base Specifications 1.1 Compliant
✓
Supports Dual 4K VAC Gigabit Ethernet Ports over a PCIe Switch
✓
Supports Full Duplex Flow Control (IEEE 802.3x)
✓
Fully Compliant with IEEE 802.3 IEEE 802.3u, IEEE 802.3ab
✓
Supports IEEE 802.1Q VLAN tagging, Crossover Detection & Auto-Correction
✓
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and Segmentation
Task-offload (Large send v1 and v2) support
✓
Supports Jumbo Frame to 9K bytes
✓
Supports Win98SE, ME, 2K, XP, XP64, Vista, Win7, 8.x, 10 and others

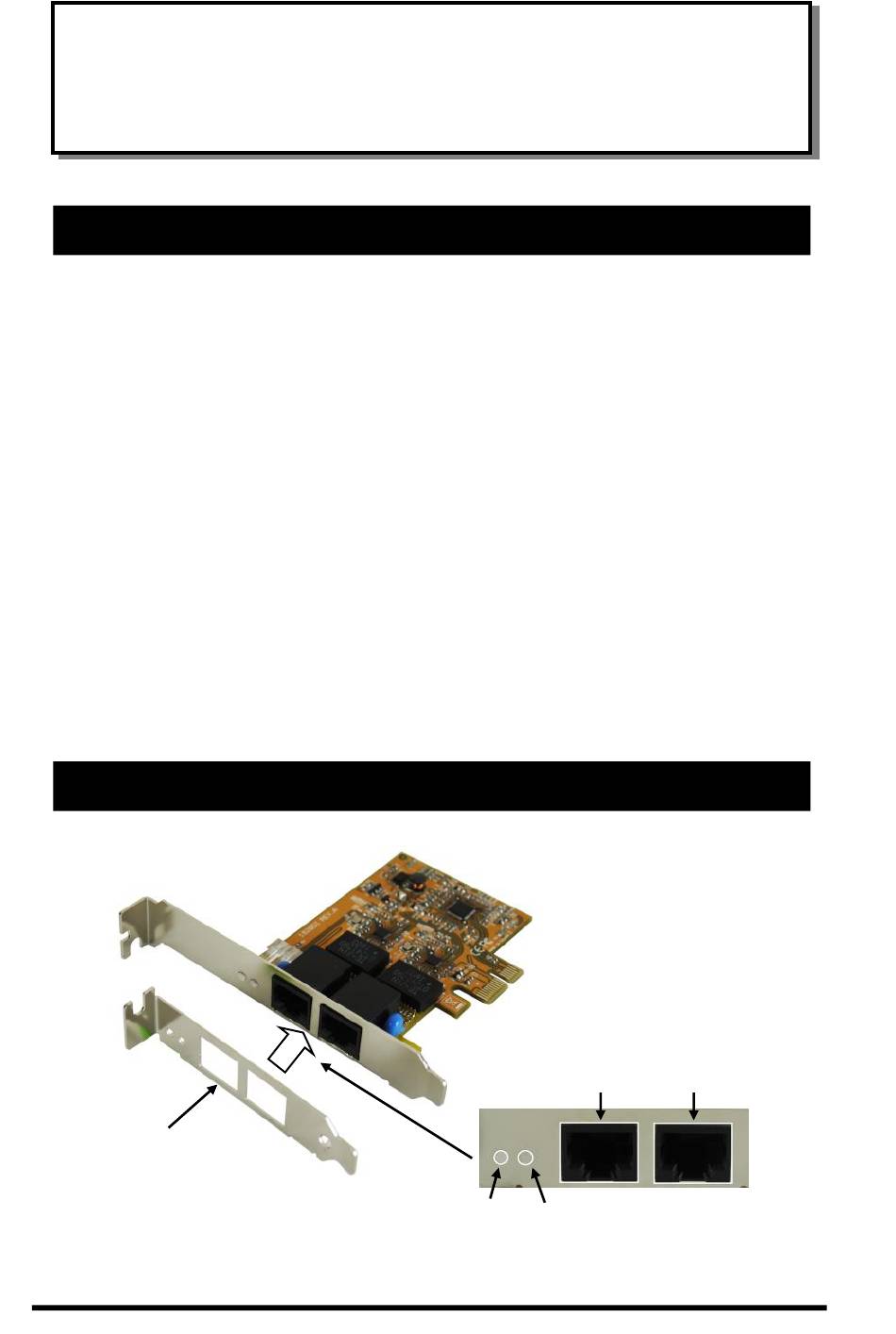

2. Board and Bracket Layout
Short bracket will be
assembled if the low profile
model is shipped
EX-6072-4K
w/ 4KV Isolation
CH2 CH1
LINK (ACT) LEDs
1
RJ45 Connectors:
CH2
CH1
Advertisement
Table of Contents
Related Manuals for Exsys EX-6072-4K
Summary of Contents for Exsys EX-6072-4K
- Page 1 EX-6072-4K Dual Channel Gigabit Ethernet PCIe Card, w/ 4KV Isolation 1. Introduction Thank you for purchasing this Dual Channel Gigabit Ethernet PCI Express Card with 4KV Isolation. It is the fastest LAN host adapter available in the market that is specially designed to connect dual channel 4KV isolated gigabit LAN channels to any computer with PCIe (PCI Express) slots.
- Page 2 Dual Channel Gigabit Ethernet PCIe Card, w/ 4KV Isolation 3. Installing the Gigabit Ethernet PCIe Card Due to the hot-plug feature of the PCI Express, the installation of the PCIe Dual Channel Gigabit Ethernet card is quite straightforward. Turn the system power OFF before installation! Use static electricity discharge precautions.
- Page 3 Dual Channel Gigabit Ethernet PCIe Card, w/ 4KV Isolation 4. Windows Driver Installation The Gigabit Ethernet drivers are shipped in the following folder of the driver CD. Please browse to the corresponding driver folder when Windows ask you to specify the driver location.
- Page 4 Dual Channel Gigabit Ethernet PCIe Card, w/ 4KV Isolation 2 Gigabit Ethernet ports shown here PCI-to-PCI bridge devices appeared...
