Exsys EX-6072PoE Quick Start Manual

2-Port PoE (PSE) Gigabit Ethernet PCIe Card

1. Introduction

Thank you for purchasing this Dual Channel PoE (PSE) Gigabit
Ethernet PCI Express Card. It is the fastest LAN host adapter available
in the market that is specially designed to connect dual channel
gigabit LAN interface to any computer with PCIe (PCI Express) slots. It
delivers isolated 48V DC power over Ethernet cable for PoE (PD)
devices. It also supports crossover detection and auto-correction
feature for the easy network cabling.
Features:
Supports Tow PoE (PSE) Gigabit Ethernet Ports
Integrated 10/100/1000 Transceiver
Supports PoE Specifications IEEE 802.3at Type 1 and 2
Microsoft NDIS5, NDIS6 Checksum Offload (IPv4, IPv6, TCP, UDP) and
Segmentation Task-offload (Large send v1 and v2) support
Supports Jumbo Frame to 9K bytes
Fully Compliant with IEEE 802.3 IEEE 802.3u, IEEE 802.3ab
Supports Win98SE, ME, 2K, XP, XP64, Vista, Win7 and others

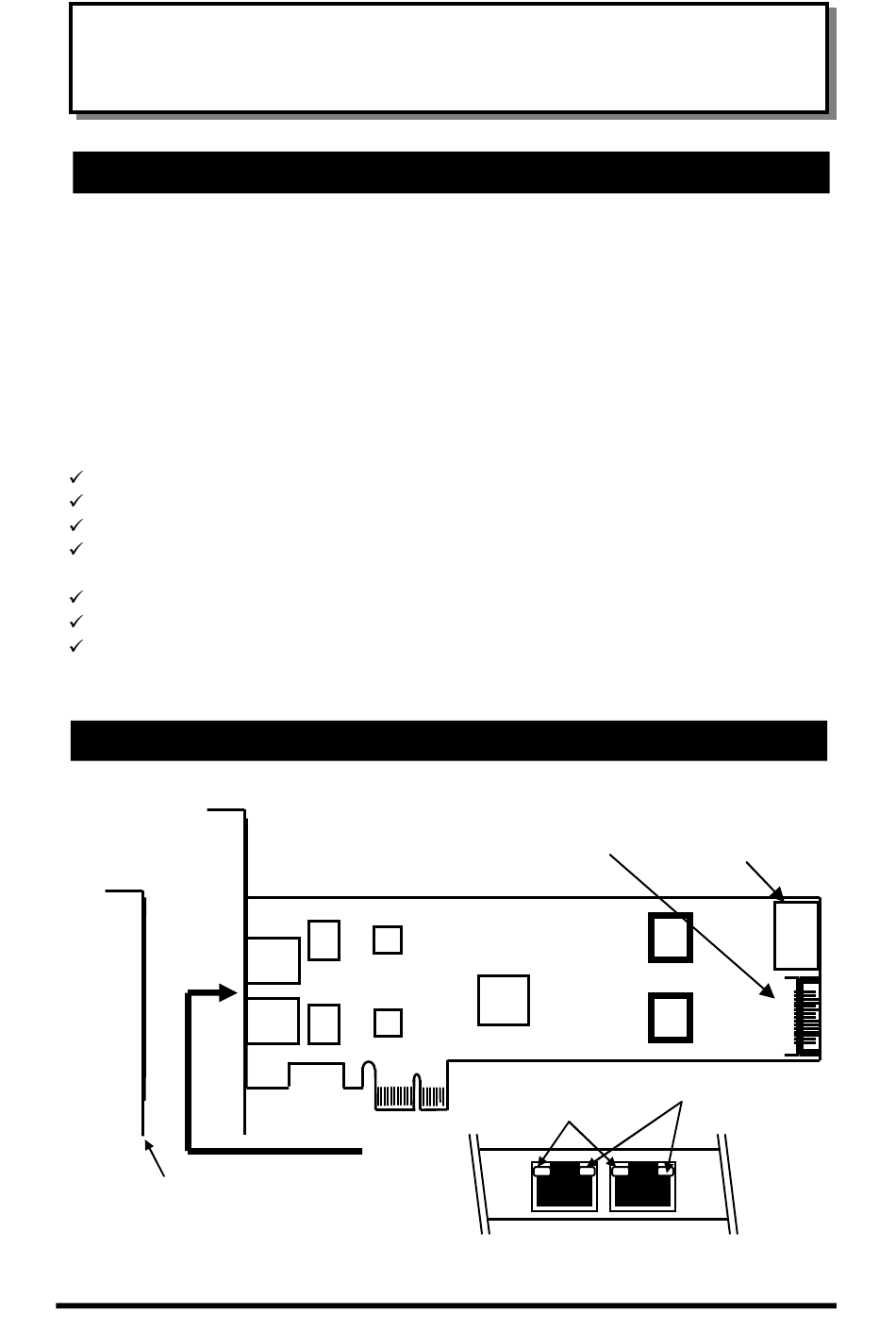

2. Board and Bracket Layout

Short bracket will be
assembled if the low
profile model is shipped
EX-6072PoE
J4:
SATA15-pin AUX
Power Connector
PoE On LEDs
(Yellow)
1
J3:
Large 4-pin AUX
Power Connector
Link (Activity) LEDs
(Green)
