Item #1004 105 594
USE AND CARE GUIDE

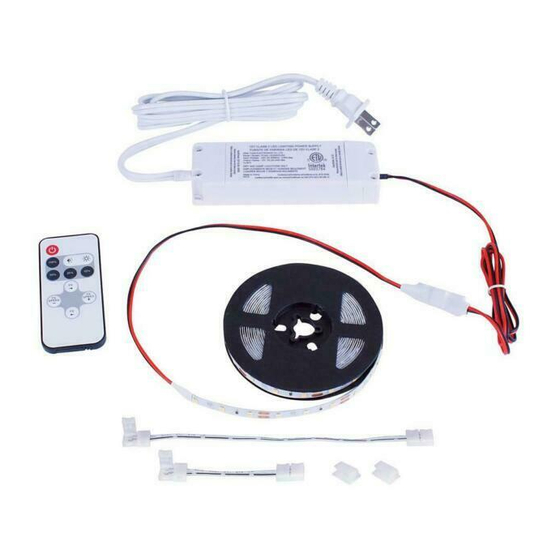

16 FT. WHITE LED TAPE LIGHT WITH REMOTE
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this flexible
tape like kit. We strive to continually create quality products designed to enhance your home. Visit us online to see
our full line of products available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Commercial Electric 1004 105 594
Summary of Contents for Commercial Electric 1004 105 594
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this flexible tape like kit. We strive to continually create quality products designed to enhance your home. Visit us online to see...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Installation ..............4 Safety Information .............2 Mounting Options ............8 Warranty..............2 Operation..............9 What is covered .............2 Care & Cleaning ............11 What is not covered ..........2 Troubleshooting ............11 Pre-Installation ............3 FCC Statement ............11 Planning Installation ..........3 Safety Information Please read and understand the user manual to ensure DANGER: Danger of eye damage. -
Page 3: Pre-Installation
Pre-Installation PLANNING INSTALLATION It is important to read these guidelines completely to understand how white LED tape lighting works with the included RF wireless remote. INSTALLATION CONSIDERATIONS □ Where will you locate your power supply? □ How will you run and conceal the wires to your LED tape lighting? □... -
Page 4: Installation
Installation Cutting the tape light (optional) IMPORTANT: Make sure to observe polarity when making connections, positive to positive and negative to negative. Check to see that the wire colors and the polarity markings printed on the tape line up. □ This tape light can be cut every three LEDs at 5 cm intervals (approx. - Page 5 Installation (continued) How to use included connectors □ The wire lead (AA) and corner connectors (BB) are used to join two sections of LED tape. □ Open the lid of the connector opposite the wire. □ Peel about ¼ inch of the paper from the LED strip adhesive backing at the connection point. □...
- Page 6 Installation (continued) Preparing the assembly location □ Power the LED tape lighting and temporarily hold or tape into position with painter’s tape or masking tape – do not remove the adhesive paper backing. □ Adjust the lighting to various angles and positions to get the desired level of illumination and lighting appearance.
- Page 7 Installation (continued) Direct wiring the power supply (optional) WARNING: Disconnect power by unplugging the power cord or turning off the circuit breaker before removing the power supply end caps. WARNING: Do not use standard 120-volt AC dimmers with this power supply. Only use the integrated RF dimmer supplied with this kit.
-
Page 8: Mounting Options
Mounting Options Creating above cabinet Installing under a cabinet uplighting □ To surface mount the LED tape light under a □ Most cabinet tops have uneven surfaces. To set of cabinets in one continuous run, you may create indirect uplighting over cabinets, simply need to drill a 1/2 in. -
Page 9: Operation
Operation Functions of the remote □ Pull out the plastic battery barrier sheet from the battery compartment located on the bottom of the remote (C). □ The remote (C) does not require line-of-sight to operate the lights. Range will vary depending on your building structure and where the receiver on the tape light is mounted. - Page 10 Operation (continued) Pairing Multiple Kits Changing the Battery □ The remote (C) in each kit comes paired with the tape To replace the battery, push in the tab on the light (B). For larger installations, multiple kits can be side of the battery tray, and pull the tray out paired together for control by a single remote (C).
-
Page 11: Care & Cleaning
Care and Cleaning □ To clean the light, use a clean dry or slightly damp cloth. □ Do not use cleaners with chemicals, solvents or harsh abrasives as damage to the light strip may occur. Troubleshooting Problem Possible Cause Solution The power supply does not have Make sure the plug is fully inserted into a live 120 V The LED strip will... - Page 12 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
