GENERATOR
SOME PARTS OF CHANGES
Applicable Information
EU10i
CHANGE LOCATION
The changed instructions are shown in

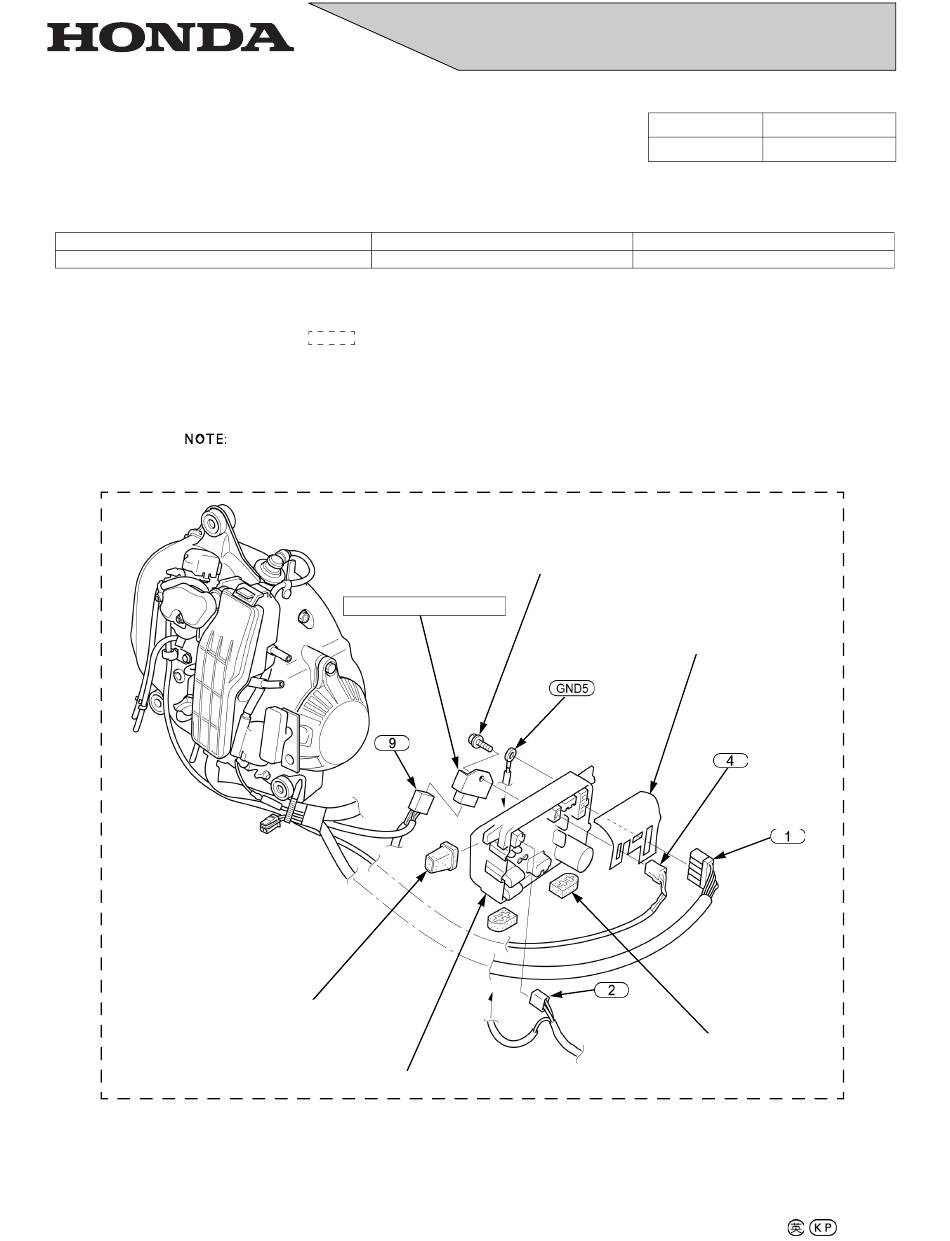

INVERTER UNIT REMOVAL/INSTALLATION
Remove the fuel tank (page 6-3).
• When installing, route the wire harness properly (page 2-8).
Honda Motor Co., Ltd.
Service Publication Office
.
RECTIFIER
INSPECTION: page 8-9
INVERTER MOUNTING
RUBBER B
INVERTER UNIT
Shop Manual News
Publication No.
62Z4000
BOLT (6 x 12 mm)
WATER PROOF SEAT
INVERTER MOUNTING
RUBBER A (2)
1
Power Equipment
News No.
Issue Date
P/P-388
Mar. 2014
Applicable Page
8-9, 8-10
2014.03
