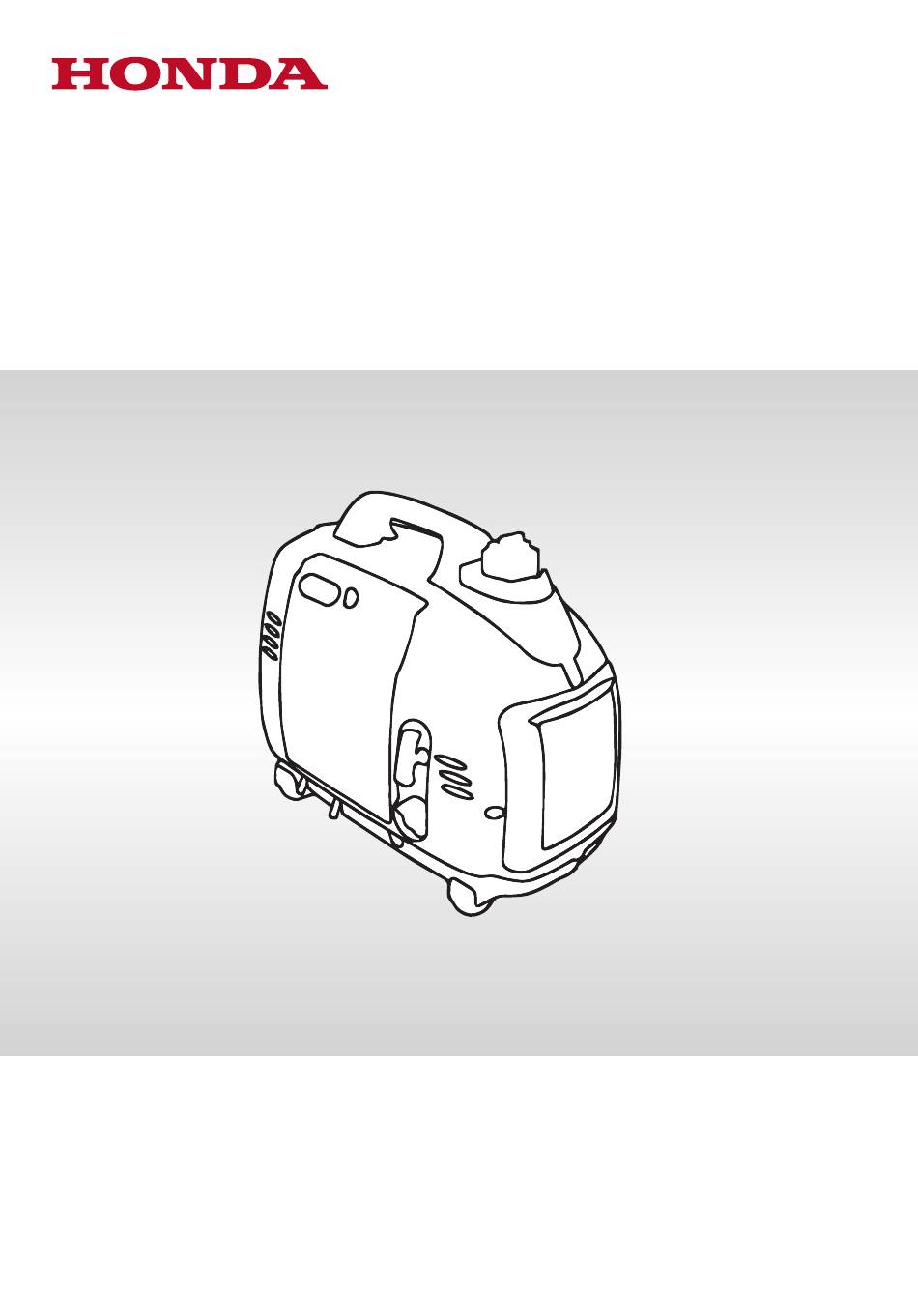

  • Page 1 GENERATOR EU10i OWNER'S MANUAL MANUEL DE L'UTILISATEUR BEDIENUNGSANLEITUNG MANUAL DEL PROPIETARIO MANUALE DELL'UTENTE...
  • Page 2 Honda EU10i OWNER’S MANUAL Original instructions MANUEL DE L’UTILISATEUR Notice originale BEDIENUNGSANLEITUNG Originalbetriebsanleitung MANUAL DEL PROPIETARIO Manual original MANUALE DELL'UTENTE Traduzione delle istruzioni originali...
  • Page 3 All information in this publication is based on the latest product information available at the time of approval for printing. Honda Motor Co., Ltd. reserves the right to make changes at any time without notice and without incurring any obligation.

  • Page 4: Table Of Contents

    7.STOPPING THE ENGINE ............37 8.MAINTENANCE..............39 9.TRANSPORTING/STORAGE ............. 44 10.TROUBLESHOOTING ............47 11.SPECIFICATIONS ..............49 12.WIRING DIAGRAM ............... 51 RECEPTACLE ............... 52 MAJOR Honda DISTRIBUTOR ADDRESSES ..... inside back cover ‘‘EC Declaration of Conformity’’ CONTENT OUTLINE..inside back cover...

  • Page 5: Safety Instructions

    1. SAFETY INSTRUCTIONS IMPORTANT SAFETY INFORMATION Honda generators are designed for use with electrical equipment that has suitable power requirements. Other uses can result in injury to the operator or damage to the generator and other property. Most injuries or property damage can be prevented if you follow all instructions in this manual and on the generator.
  • Page 6 Carbon Monoxide Hazards Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing exhaust can cause loss of consciousness and may lead to death. If you run the generator in an area that is confined, or even partially enclosed area, the air you breathe could contain a dangerous amount of exhaust gas.
  • Page 7 Fire and Burn Hazards Do not use the generator in areas with a high risk of fire. The exhaust system gets hot enough to ignite some materials. – Keep the generator at least 1 meter (3 feet) away from buildings and other equipment during operation.
  • Page 8 Observe the local laws or regulations or consult your authorized Honda generator dealer to dispose of these parts. Please dispose of used motor oil in a manner that is compatible with the environment.

  • Page 9: Safety Label Locations

    Read the labels and safety notes and precautions described in this manual carefully. If a label comes off or becomes hard to read, contact your Honda servicing dealer for a replacement. For European model: G, GW1, B, F, W, CL types...
  • Page 10 • Honda generator is designed to give safe and dependable service if operated according to instructions. Read and understand the Owner’s Manual before operating the generator. Failure to do so could result in personal injury or equipment damage. • Exhaust contains poisonous carbon monoxide, a colorless, odorless gas.
  • Page 11 • Gasoline is highly flammable and explosive. Turn the engine off and let it cool before refueling. • Connect and remove the receptacle box for parallel operation with the engine stopped. • For single operation, the receptacle box for parallel operation must be removed. •...
  • Page 12 U type and CL type [CL type] [U type]...

  • Page 13: Ce Mark And Noise Label Locations

    • CE mark and noise label locations G, GW1, B, F, W, CL types • CE MARK NOISE LABEL Performance class Quality class IP code Dry mass (weight) Manufacturer and address Name and address of authorized Year of manufacture representative and importer Name and address of manufacturer, authorized representative and importer are written in the “EC Declaration of Conformity”...

  • Page 14: Component Identification

    3. COMPONENT IDENTIFICATION FUEL FILLER CAP VENT LEVER CHOKE LEVER FUEL FILLER CAP CONTROL PANEL MAINTENANCE COVER STARTER GRIP ENGINE SWITCH FRAME SERIAL NUMBER SPARK PLUG MAINTENANCE COVER MUFFLER Record the frame serial number in the space below. You will need this serial number when ordering parts.
  • Page 15 CONTROL PANEL G, B, W, CL types F, GW1 types AC RECEPTACLE AC RECEPTACLE PARALLEL OPERATION SOCKETS ECO THROTTLE SWITCH GROUND TERMINAL OIL ALERT INDICATOR OVERLOAD INDICATOR OUTPUT INDICATOR DC RECEPTACLE DC CIRCUIT PROTECTOR...
  • Page 16 U type AC RECEPTACLE PARALLEL OPERATION SOCKETS ECO THROTTLE SWITCH GROUND TERMINAL OIL ALERT INDICATOR OVERLOAD INDICATOR OUTPUT INDICATOR DC RECEPTACLE DC CIRCUIT PROTECTOR...
  • Page 17 Eco Throttle ECO: Engine speed is kept at idle automatically when the electrical appliance is disconnected and it returns to the proper speed by the electrical load when electrical appliance is connected. This position is recommended to minimize the fuel consumption while in operation. NOTE: •...

  • Page 18: Pre-Operation Check

    SAE 10W-30 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range. Lubrication oil specifications necessary to maintain the performance of the emissions control system: Honda genuine oil.
  • Page 19 (1) Loosen the maintenance cover screw and remove the maintenance cover (see page 40). (2) Remove the oil filler cap. (3) Check the oil level. If it is below the upper limit, fill with the recommended oil (see page 16) to the upper limit. (4) Reinstall the oil filler cap securely.
  • Page 20 2. Check the fuel level. If the fuel level is low, refuel the fuel tank until the level as specified. After refueling, tighten the fuel filler cap securely. Use automotive unleaded gasoline with a Research Octane Number of 91 or higher (a Pump Octane Number of 86 or higher). Fuel specification(s) necessary to maintain the performance of the emissions control system: E10 fuel referenced in EU regulation.
  • Page 21 Gasolines Containing Alcohol If you decide to use a gasoline containing alcohol (gasohol), be sure its octane rating is at least as high as that recommended by Honda. There are two types of ‘‘gasohol’’: one containing ethanol, and the other containing methanol.
  • Page 22 3.Check the air cleaner. Check the air cleaner element to be sure it is clean and in good condition. Loosen the maintenance cover screw and remove the maintenance cover. Press the latch tab on the top of the air cleaner body, remove the air cleaner cover, check the element.

  • Page 23: Starting The Engine

    5. STARTING THE ENGINE Before starting the engine disconnect any load from the AC receptacle. 1.Turn the fuel filler cap vent lever fully clockwise to the ON position. NOTE: Turn the fuel filler cap vent lever to the OFF position when transporting the generator.
  • Page 24 3.Move the choke lever to the CLOSED position. NOTE: Do not use the choke when the engine is warm or the air temperature is high. CHOKE LEVER CLOSED CLOSED 4.Pull the starter grip lightly until you feel resistance, then pull the starter grip briskly toward in the direction of the arrow as shown below.
  • Page 25 5.Move the choke lever to the OPEN position as the engine warms up. CHOKE LEVER OPEN OPEN NOTE: If the engine stops and will not restart, check the engine oil level (see page 17) before troubleshooting in other areas.

  • Page 26: Carburetor Modification For High Altitude Operation

    • Carburetor Modification for High Altitude Operation At high altitude, the standard carburetor air-fuel mixture will be too rich. Performance will decrease, and fuel consumption will increase. A very rich mixture will also foul the spark plug and cause hard starting. Operation at an altitude that differs from that at which this engine was certified, for extended periods of time, may increase emissions.

  • Page 27: Generator Use

    6. GENERATOR USE The generator produces enough electric power to cause a serious shock or electrocution if misused. Be sure to ground the generator when the connected appliance is grounded. To ground the terminal of the generator, use a copper wire with same or larger diameter than the cord of the EARTH connected appliance.
  • Page 28 CAUTION: • Do not exceed the current limit specified for any one receptacle. • Do not modify or use the generator for other purposes than it is intended for. Also observe the following when using the generator. • Do not connect an extension to the exhaust pipe. •...
  • Page 29 AC applications 1.Start the engine and make sure the green Output indicator comes 2.Confirm that the appliance to be used is switched off, and plug in the appliance. OUTPUT INDICATOR OVERLOAD INDICATOR PLUG (GREEN) (RED) CAUTION: • Substantial overloading that continuously lights the Overload indicator (red) may damage the generator.
  • Page 30 Output and Overload Indicators The Output indicator (green) will remain ON during normal operating conditions. In addition, the Output indicator has a simplified hour meter function. When you start the engine, the indicator blinks according to the generator’s cumulative operating hours as follows: •...
  • Page 31 Parallel operation Please read the item ‘‘GENERATOR USE’’ before connecting any equipment to be used. Use only a special cable for parallel operation (sold separately). PARALLEL OPERATION SOCKETS SPECIAL CABLE FOR PARALLEL OPERATION (SOLD SEPARATELY) Most appliance motors require more than their rated wattage for startup.
  • Page 32 • Never connect the different generator models and types. • Never connect a cable other than the special cable for parallel operation. • Connect and remove the special cable for parallel operation with the engine stopped. • For single operation, the special cable for parallel operation must be removed.
  • Page 33 2.Be sure to ground the generator when the connected equipment is grounded. GROUND TERMINAL GROUND TERMINAL 3.Start each engine according to ‘‘STARTING THE ENGINE’’. • When the Output indicator (green) does not light and the Overload indicator (red) lights instead, set the engine switch to the OFF position, stop the engine once, and then start the engine again.
  • Page 34 5.Switch on the equipment to be used. The Output indicator (green) will light. In case of normal operation In case of overload operation or short-circuit OUTPUT INDICATOR (GREEN) OVERLOAD INDICATOR (RED) • In case of overload operation (refer to page 29) or when trouble occurs for the equipment being used, the Output indicator (green) will go out, the Overload indicator (red) will light continuously, and no power will be put out....
  • Page 35 NOTE: • When equipment requiring a large starting power, like a motor etc., is used, the Overload indicator (red) and the Output indicator (green) may light together for a short time (about 4 seconds), but this is no abnormality. After start of the equipment, the Overload indicator (red) will go out and the Output indicator (green) will stay lit.
  • Page 36 DC Application The DC receptacle may be used for charging 12 volt automotive-type batteries only. NOTE: In DC operation, turn the Eco Throttle switch to the OFF position. 1.Connect the charging cable to the DC receptacle of the generator and then to the battery terminals.
  • Page 37 • Batteries produce explosive gases: If ignited, and explosion can cause serious injury or blindness. Provide adequate ventilation when charging. • CHEMICAL HAZARD: Battery electrolyte contains sulfuric acid. Contact with eyes or skin, even through clothing, may cause severe burns. Wear a face shield and protective clothing. •...
  • Page 38 Oil Alert system The Oil Alert system is designed to prevent engine damage caused by an insufficient amount of oil in the crankcase. Before the oil level in the crankcase falls below a safe limit, the Oil Alert system will automatically shut down the engine (the engine switch will remain in the ON position).

  • Page 39: Stopping The Engine

    7. STOPPING THE ENGINE To stop the engine in an emergency, turn the engine switch to the OFF position. IN NORMAL USE: 1.Turn off or disconnect all appliances that are connected to the generator. PLUG 2.Turn the engine switch to the OFF position. ENGINE SWITCH...
  • Page 40 3. Allow the engine to cool, and then turn the fuel filler cap vent lever to the OFF position. FUEL FILLER CAP VENT LEVER CAUTION: Be sure the fuel filler cap vent lever and the engine switch are in the OFF position when stopping, transporting and/or storing the generator.

  • Page 41: Maintenance

    (1) For commercial use, log hours of operation to determine proper maintenance intervals. (2)Service more frequently when used in dusty areas. (3) These items should be serviced by your servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures.
  • Page 42 1.CHANGING OIL Drain the oil while the engine is still warm to assure rapid and complete draining. CAUTION: Make sure to turn the engine switch and the fuel filler cap vent lever to the OFF position before draining. 1.Loosen the maintenance cover screw and remove the maintenance cover.
  • Page 43 2. AIR CLEANER SERVICE A dirty air cleaner will restrict air flow to the carburetor. To prevent carburetor malfunction, service the air cleaner regularly. Service more frequently when operating the generator in extremely dusty areas. Do not use gasoline or low flash point solvents for cleaning. They are flammable and explosive under certain conditions.
  • Page 44 3.SPARK PLUG SERVICE RECOMMENDED SPARK PLUG: LR4C-E (NGK) To ensure proper engine operation, the spark plug must be properly gapped and free of deposits. 1.Remove the spark plug maintenance cover. SPARK PLUG MAINTENANCE COVER 2.Remove the spark plug cap. 3.Clean any dirt from around the spark plug base. 4.Use a spark plug wrench to remove the spark plug.
  • Page 45 5.Visually inspect the spark plug. Discard it if the insulator is cracked, chipped, or fouled. Clean the spark plug with a wire brush if it is to be reused. 6.Measure the plug gap with a feeler gauge. Correct as necessary by carefully bending the side electrode.  The gap should be: 0.6–0.7 mm (0.024–0.028 in) 0.6–0.7 mm...

  • Page 46: Transporting/Storage

    9. TRANSPORTING/STORAGE To prevent fuel spillage when transporting or during temporary storage, the generator should be secured upright in its normal operating position, with the engine switch OFF. The fuel filler cap vent lever is turned fully counterclockwise to the OFF position.
  • Page 47 Before storing the unit for an extended period: 1.Be sure the storage area is free of excessive humidity and dust. 2.Drain the fuel. Gasoline is extremely flammable and is explosive under certain conditions. Perform this task in a well ventilated area with the engine stopped.
  • Page 48 3.Change the engine oil (see page 40). 4.Remove the spark plug and pour about a tablespoon of clean engine oil into the cylinder. Crank the engine several revolutions to distribute the oil, then reinstall the spark plug. 5.Reinstall the spark plug cap and spark plug maintenance cover securely.

  • Page 49: Troubleshooting

    10. TROUBLESHOOTING When the engine will not start: Is there fuel in Refill the fuel the tank? tank. Is the engine Turn the engine switch in the ON switch to the ON position? position. Is there enough Add the oil in the engine? recommended oil (see pages 16 and 17).
  • Page 50 Appliance does not operate: Is the output indicator ON? Take the Is the Overload generator to your indicator ON? servicing dealer. Check the Take the NO DEFECTS electrical generator to your appliance or servicing dealer. equipment for any defects. • Replace the electrical appliance or equipment.

  • Page 51: Specifications

    Spark plug LR4C-E (NGK) [Carbon dioxide (CO2) emissions*] Please refer to "CO2 Information List" on www.honda-engines-eu.com/co2 * The CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
  • Page 52 Noise Model EU10iT1 Type G, GW1, B, F, W, CL Sound pressure level at 67 dB (A) * – the workstation (with Eco throttle ON) (2006/42/EC) Microphone point CONTROL PANEL Center 1.60 m 1.0 m Uncertainty – – Measured sound power level 84 dB (A) –...

  • Page 53: Wiring Diagram

    12. WIRING DIAGRAM INDEX (See inside back cover) G, GW1, B, F, W, CL Types ............W–1 U Type .................. W–2 ABBREVIATIONS WIRE COLOR CODE Symbol Part name BLACK ACOR AC Output Receptacle YELLOW B Type BLUE CL Type GREEN Composite Socket Control Panel Block WHITE...

  • Page 54: Receptacle

    RECEPTACLE Type Shape Plug GROUND PIN GROUND PIN GROUND PIN GROUND PIN G, CL GROUND PIN GROUND PIN...
  • Page 55 Honda Motor Co., Ltd. 2019 英 仏 独 西 伊 3QZ40602 00X3Q-Z40-6020 Printed in Thailand...
