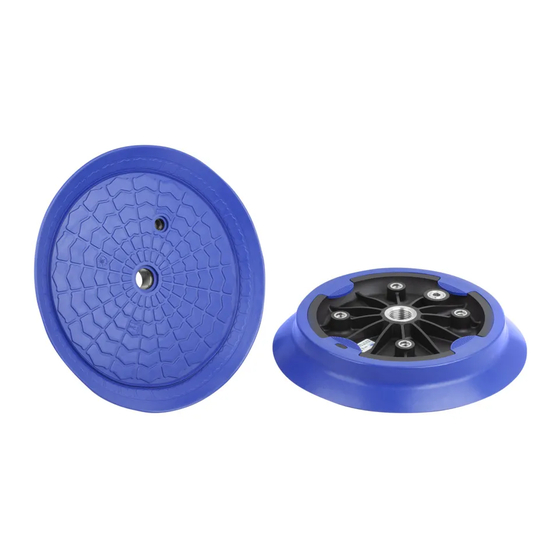

Suction Plate SUF
Operating Instructions
Note
The Operating instructions were originally written in German. Store in a safe place for future reference. Subject
to technical changes without notice. No responsibility is taken for printing or other types of errors.
Published by
© J. Schmalz GmbH, 07/20
This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of
the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any mod-
ifications to or abridgments of the document are prohibited without explicit written agreement from
J. Schmalz GmbH.
J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0
schmalz@schmalz.de
EN-US · 30.30.01.02210 · 01 · 07/20
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schmalz SUF Series
Summary of Contents for Schmalz SUF Series
- Page 1 Any mod- ifications to or abridgments of the document are prohibited without explicit written agreement from J. Schmalz GmbH. J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0 schmalz@schmalz.de EN-US · 30.30.01.02210 · 01 · 07/20...
-
Page 2: Note On Using This Document
ð Failure to follow the instructions in these Operating instructions may result in injuries! ð Schmalz is not liable for damage or malfunctions that result from failure to heed these instructions. If you still have questions after reading the technical documentation, contact Schmalz Service at: www.schmalz.com/services... -
Page 3: Fundamental Safety Instructions
2.2 Non-Intended Use Schmalz does not accept any liability for any direct or indirect losses or damages that result from using the product. This applies, in particular, to any use of the product that is not in accordance with the intended purpose and to any use that is not described or mentioned in this documentation. -
Page 4: Near Field Communication (Nfc)
Read access only can be obtained via a website viewed in a browser. This does not require an additional app. It re- quires only that NFC and the internet connection are enabled. However, we suggest using the Schmalz Control- Room app as it allows additional information to be made available. The app is available in the Google Play Store. -
Page 5: Technical Data
5 Technical Data 5.1 General Parameters Parameter Unit Values Max. ambient temperature °C Max. relative humidity Max. workpiece temperature °C Operating medium Use only well-maintained compressed air (air or neutral gas according to EN 983, filtered to 40 µm, oiled or unoiled). Mass SUF 210 SUF 160... -
Page 6: Transport And Storage
1. Compare the entire delivery with the supplied delivery notes to make sure nothing is missing. 2. Damage caused by defective packaging or occurring in transit must be reported immediately to the carrier and J. Schmalz GmbH. 6.2 Storage of Suction Cups and Other Elastomer Products... -
Page 7: Mechanical Attachment
CAUTION Noise pollution due to incorrect installation of the pressure and vacuum connections Hearing damage 4 Correct installation. 4 Wear ear protectors. Take note of the following when mounting: • Use only the provided connections and mounting threads. • Dirt particles or foreign bodies in the suction plate connections, hoses or pipelines can lead to malfunctions or failure. - Page 8 7.3 Connecting the Vacuum Use a PTFE strip, PA ring, aluminum ring or O-ring to seal the screw unions. Option A: 4 Connection to the centered G1 female thread us- ing a hollow bolt: — Observe the max. tightening torque of 25 Nm for the SUF 160 and 210, G1/2"...
-
Page 9: Maintenance And Cleaning
7.5 Installing the Touch Valve (optional) 1. Remove the plug in the G2 thread. 2. For sealing, prepare the male thread in the area displayed on the touch valve with a PTFE strip or low-strength thread lock before mounting. 3. Screw the touch valve into the G2 thread until it stops (SW11 hexagonal mid section). - Page 10 t he groove shown to facilitate the joining of the components. 2. Lift the tab on the sealing ring and push the suc- tion cup connection disc with the raised Schmalz logo under the tab. 10 / 12...
- Page 11 3. Simultaneously fit the sealing ring into the slot and recess on the suction cup connection disc. 4. Continue pulling the sealing ring from this location over the suction cup connection disc and insert it into the slot until the suction cup connection disc is completely inserted into the sealing ring and the sealing ring does not protrude over the suction cup connection disc at any point, i.e.
-
Page 12: Warranty
12 EC Declaration of Conformity EC declaration of conformity The manufacturer Schmalz confirms that the product Suction plate SUF described in these operating instructions fulfills the following applicable EC directives: 2014/53/EU Harmonization of the laws of the Member States relating to the making available...
