Operating Instructions
Suction Plate SUF
WWW.SCHMALZ.COM
EN-US · 30.30.01.02210 · 02 · 12/22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Suction Plate SUF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Schmalz Suction Plate SUF

  • Page 1 Operating Instructions Suction Plate SUF WWW.SCHMALZ.COM EN-US · 30.30.01.02210 · 02 · 12/22...
  • Page 2 Published by © J. Schmalz GmbH, 12/22 This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Repro- duction of the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any modifications to or abridgments of the document are prohibited without explicit writ- ten agreement from J. Schmalz GmbH.
  • Page 3: Table Of Contents

    Intended Use ............................ 6 Non-Intended Use.......................... 6 Warnings in This Document ........................  6 Modifications to the Product ...................... 6 3 Design of the Suction Plate SUF ........................ 7 4 Interface NFC.............................. 8 5 Technical Data.............................. 9 General Parameters .......................... 9 Suction Plates Technical Data ......................
  • Page 4: Important Information

    ð Failure to follow the instructions in these Operating instructions may result in injuries! ð Schmalz is not liable for damage or malfunctions that result from failure to heed these instructions. If you still have questions after reading the technical documentation, contact Schmalz Service at: www.schmalz.com/services...
  • Page 5: Symbols

    1 Important Information 1.4   Symbols This symbol indicates useful and important information. ü This symbol represents a prerequisite that must be met prior to an operational step. 4 This symbol represents an action to be performed. ð This symbol represents the result of an action. Actions that consist of more than one step are numbered: 1.
  • Page 6: Fundamental Safety Instructions

    The round vacuum suction plate SUF is designed to handle flat, smooth workpieces, such as sheet metal, plastics, coated wood, granite, or concrete. To generate holding force, the vacuum suction plate is con- nected to a vacuum supply at the customer’s premises.
  • Page 7: Design Of The Suction Plate Suf

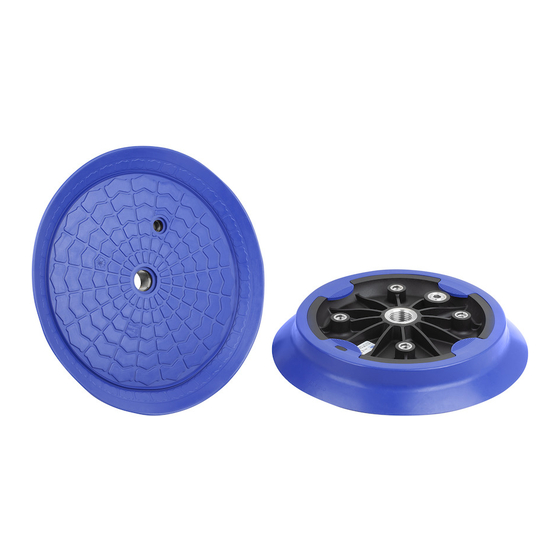

    3 Design of the Suction Plate SUF 3   Design of the Suction Plate SUF Sealing ring Suction cup connection disc Disassembly tab (4x) M8 mounting thread (4x) (for SUF 210 and 160) Type plate (for SUF 210 and 160) Central vacuum connection and mounting...
  • Page 8: Interface Nfc

    In addition to pure read access, the app allows you to ac- tively write the parameters of the device via NFC. The “Schmalz ControlRoom” app is available in the Google Play Store or Ap- ple App Store.
  • Page 9: Technical Data

    5 Technical Data 5   Technical Data 5.1   General Parameters Parameter Unit Values Max. ambient temperature °C Max. relative humidity Max. workpiece temperature °C Operating medium Use only well-maintained compressed air (air or neutral gas according to EN 983, filtered to 40 µm, oiled or unoiled). Mass SUF 210 SUF 160...
  • Page 10: Dimensions

    5 Technical Data 5.3   Dimensions Type Dmax(s) SUF 210 172.9 46.5 SUF 160 32.5 SUF 125 Type SUF 210 G1/2" fe- G1/4" fe- 11.8 M8, fe- 11.1 male male male thread thread SUF 160 G1/2" fe- G1/4" fe- 11.8 66.5 M8, fe- 11.1 male male...
  • Page 11: Transportation And Storage

    1. Compare the entire delivery with the supplied delivery notes to make sure nothing is missing. 2. Damage caused by defective packaging or occurring in transit must be reported immediately to the carrier and J. Schmalz GmbH. 6.2   Storage of Suction Cups and Other Elastomer Products...
  • Page 12: Installation

    7 Installation 7   Installation 7.1   Installation Instructions CAUTION A strong vacuum is produced on the suction cup and suction lines. Hair, skin, body parts and items of clothing can be sucked in. 4 Wear protective glasses and tight-fitting clothing. 4 Use a hairnet if necessary. 4 Do not look or reach into the suction cup openings.
  • Page 13: Connecting The Vacuum

    7 Installation Option B (for SUF 160 and 210): 4 Use the four G3 female threads (M8) with a max. tightening torque of 10 Nm. Ensure that the suction plate is always at- tached with four screws and observe the thread depth of 11 mm when selecting the screws.
  • Page 14: Installing The Touch Valve (Optional)

    7 Installation ü Disassemble the sealing ring in accordance with the instructions (> See ch. 8.2 Replacing the Sealing Ring, p. 15). 4 Insert the screen in the slot around the hole. 7.5   Installing the Touch Valve (optional) 1. Remove the plug in the G2 thread. 2.
  • Page 15: Maintenance And Cleaning

    8 Maintenance and Cleaning 8   Maintenance and Cleaning 8.1   Cleaning the Suction Plate 1. For cleaning, do not use aggressive cleaning agents such as industrial alcohol, white spirit or thin- ners. Only use cleaning agents with pH 7–12. 2. Remove dirt on the exterior of the device with a soft cloth and soap suds at a maximum tempera- ture of 60° C.
  • Page 16 2. Lift the tab on the sealing ring and push the suction cup connection disc with the raised Schmalz logo under the tab. 3. Simultaneously fit the sealing ring into the slot and recess on the suction cup connection disc.
  • Page 17: Replacement Interval For The Suction Cup Connection Disc

    8 Maintenance and Cleaning 5. Check the tightness of the seal between the sealing ring and the suction cup connection disc. 8.3   Replacement Interval for the Suction Cup Connection Disc The suction cup connection disc is subject to wear depending on the operating conditions. The main contributory factors include: •...
  • Page 18: Accessories, Spare Parts And Wearing Parts

    9 Accessories, Spare Parts and Wearing Parts 9   Accessories, Spare Parts and Wearing Parts Maintenance work may only be carried out by qualified personnel. Designation Part no. Type Sealing ring SUF, suction plate 210 10.01.01.13846 DR-SUF 210 NBR-60 Sealing ring SUF, suction plate 160 10.01.01.14327 DR-SUF 160 NBR-60 Sealing ring SUF, suction plate 125...
  • Page 19: Warranty

    10 Warranty 10   Warranty Schmalz guarantees this system pursuant to our General Terms and Conditions of Sale and Delivery. The same applies to spare parts, provided that these are original parts supplied by us. Wearing parts are not covered by the warranty.
  • Page 20: Disposing Of The Product

    For proper disposal, please contact a company specializing in the disposal of technical goods and instruct the company to observe the applicable disposal and environmental regulations. Schmalz is happy to assist you in finding a suitable company. 20 / 22...
  • Page 21: Declarations Of Conformity

    12   Declarations of Conformity 12.1   EC Declaration of Conformity EC Declaration of Conformity The manufacturer Schmalz confirms that the product Suction plate SUF described in these operating in- structions fulfills the following applicable EC directives: 2014/53/EU Harmonization of the laws of the Member States relating to the making...
  • Page 22 At Your Service Worldwide Vacuum automation Handling systems WWW.SCHMALZ.COM/AUTOMATION WWW.SCHMALZ.COM/EN-US/VACUUM-LIFTERS- AND-CRANE-SYSTEMS J. Schmalz GmbH Johannes-Schmalz-Str. 1 72293 Glatten, Germany T: +49 (0) 7443 2403-0 schmalz@schmalz.de WWW.SCHMALZ.COM...
