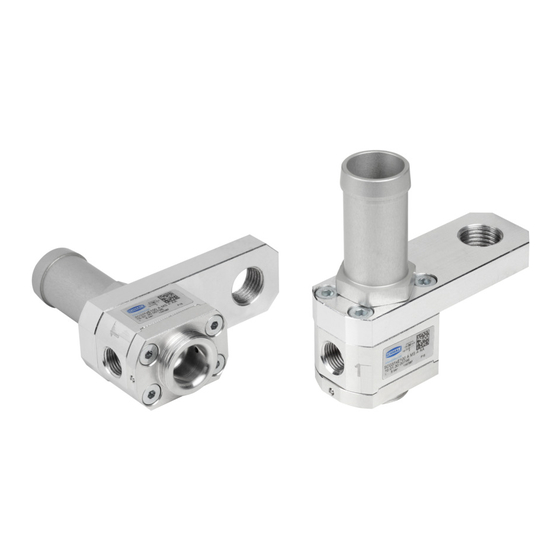

Flow Gripper SCGS
Assembly Instructions
Note
The assembly instructions were originally written in German. Store in a safe place for future reference. Subject
to technical changes without notice. No responsibility is taken for printing or other types of errors.
Published by
© J. Schmalz GmbH, 02/19
This document is protected by copyright. J. Schmalz GmbH retains the rights established thereby. Reproduction of
the contents, in full or in part, is only permitted within the limits of the legal provisions of copyright law. Any mod-
ifications to or abridgments of the document are prohibited without explicit written agreement from
J. Schmalz GmbH.
J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0
schmalz@schmalz.de
EN-US · 30.30.01.01918 · 00 · 02/19
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schmalz SCGS
Summary of Contents for Schmalz SCGS
- Page 1 Any mod- ifications to or abridgments of the document are prohibited without explicit written agreement from J. Schmalz GmbH. J. Schmalz GmbH · Johannes-Schmalz-Str. 1 · 72293 Glatten, Germany · T: +49 7443 2403-0 schmalz@schmalz.de EN-US · 30.30.01.01918 · 00 · 02/19...
-
Page 2: Fundamental Safety Instructions
ð Failure to follow the instructions in this manual can lead to life-threatening injuries! ð Schmalz is not liable for damage or malfunctions that result from failure to heed these instructions. If you still have questions after reading the technical documentation, contactSchmalz-service at: www.schmalz.com/services... -
Page 3: Non-Intended Use
Compressed air must be connected to the appropriate interfaces in order to operate the Flow gripper SCGS, i.e. to generate the vacuum and blow off. -
Page 4: Technical Data
“Blow off” compressed air connection (12), M5 female Optional: Suction pad Optional: Suction area 4 Technical Data 4.1 General Parameters Parameter Unit SCGS 1xE100 “Suction” operating pressure 1.0 – 5.0 “Blow-off” operating pressure 1.0 – 5.0 Temperature range ° C +5 – +75 Recommended internal hose Ø for “suction”... -
Page 5: Checking The Delivery
1. Compare the entire delivery with the supplied delivery notes to make sure nothing is missing. 2. Damage caused by defective packaging or in transit must be reported immediately to the carrier and J. Schmalz GmbH. 6 Installation 6.1 Installation Instructions... -
Page 6: Mechanical Attachment
Use only the connections, mounting holes and attachment materials that have been provided. The flow gripper may be installed in any position. The flow gripper SCGS can be adapted to your handling system using the thread integrated in the holder. 1. Use the G4 female thread of size G¼" to mechani- cally fasten the SCGS. - Page 7 The compressed air connection (inlet) for supplying the blow-off function is labeled with the number 12, as shown in the figure. 4 Connect the compressed air for the “blow-off” function to the M5 thread labeled with the num- ber 12. 7 ...
-
Page 8: Spare And Wearing Parts
4 Sort and dispose of all components according to the country-specific regulations. For proper disposal, please contact a company specializing in the disposal of technical goods and in- struct the company to observe the applicable disposal and environmental regulations. Schmalz is happy to assist you in finding a suitable company.
