CyberPower HT705GR User Manual

7-Outlet Surge Protector 7-Outlet Surge Protector
HT705GR HT705GR
1
3
2
8
4
5
8
7
USER'S MANUAL
Copyright © 2017 Cyber Power Systems, Inc. All rights reserved.
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower HT705GR Surge Protector. The
information contained in this brochure explains the features and operation
of the HT705GR. Please take a few moments to read this manual.
QUICK START GUIDE
1. Connections - Connect infra-red (IR) controller to main surge protector
via small input jack. Then connect all power-saving controlled and
non-controlled equipment to surge protector and assure all equipment is
powered o or on standby mode. Plug surge protector into wall outlet
and turn on using green rocker switch. LED indicators (protected &
grounded) will illuminate.
2. Power-Saving Detection - The HT705GR will detect the connected
equipment and Energy Saving LED will illuminate. To reset the power-saving
outlets, press and hold the IR Sensor button for more than 10 seconds,
release and this will trigger re-detection of the connected equipment.
3. The Energy Saving Timer - When the IR Sensor receives IR signals within
the energy saving time window, the Energy Saving outlets will power on.
When the IR Sensor no longer receives signals, the Energy Saving outlets
will power o after a specific time period. The energy saving timer default
setting is 1 hour. If you want to change the energy saving time window,
you need to press the IR Sensor button for more than 3 seconds (LED will
flash 3 times), release, and surge protector will default into the settings
mode. Follow the setting table below:
To set energy saving Press the button
time to power o on the IR Sensor
1 hour Once (one second)
(Default settting) then release
2 times or more
2 hours
(one second each) then release
4. Timer Shut-Down - When the timer expires, the IR Sensor will continue to
flash for 15 minutes, then the Energy Saving outlets will power o . If you
want to reset timer, press the IR Sensor button or use your standard
device remote controller.

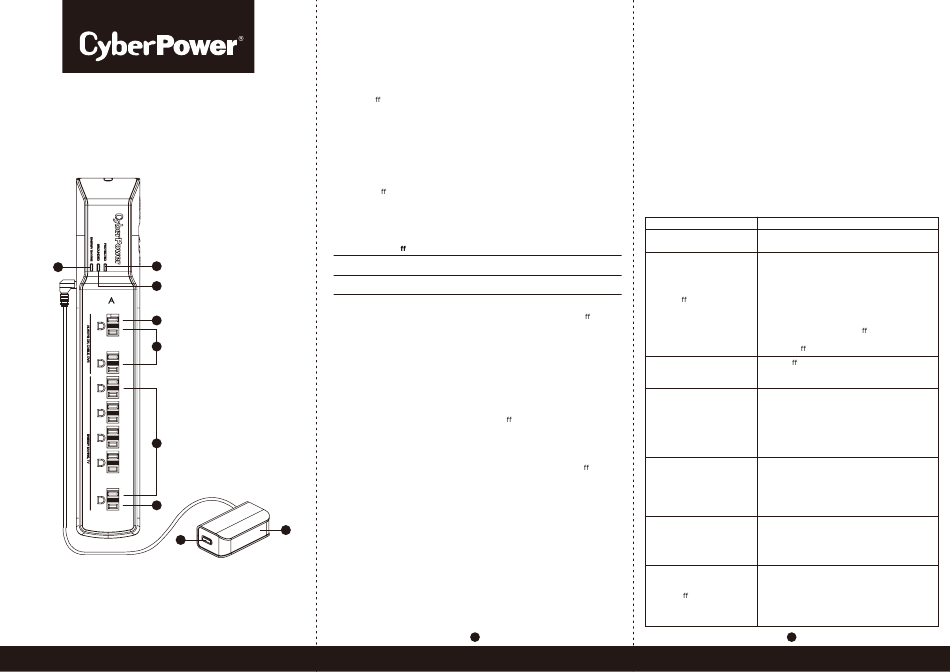

FEATURES
1. Surge Protected Indicator LED
Illuminated when the surge protection feature is working properly.
2. Ground Indicator LED
Illuminated when the ground protection feature is working properly.
3. Energy Saving Indicator LED
Illuminated when the Energy Saving outlet is powered on. Not illuminated
when the Energy Saving outlet is powered o .
4. Always On Outlets
The outlet power is always on.
5. Energy Saving Outlets
When the energy saving timer expires, the IR Sensor will continue to
flash for 15 minutes, then the Energy Saving outlets will power o . If you
want to turn on the Energy Saving outlets, you can press the IR Sensor
button or use your device remote controller.
6. IR Sensor
The Sensor for receiving the IR signals.
7. IR Sensor Button
Use the button to turn on the Energy Saving outlets or to place surge
6
protector into the setting mode.
8. 2 Wide Spaced Outlets
For transformer-sized plugs.
SPECIFICATIONS
• Model Number: HT705GR
• Outlets: 2 Always On outlets & 5 Energy Saving outlets (5 Standard Outlets
and 2 transformer spaced outlets )
• Surge Protection: 1500 Joules
• Electrical Rating: 125V/15A/1875W
• UL Clamping Voltage: UL 1449 3rd/500V (H-N, H-G, N-G)
• Maximum Peak Current: 60,000A
• 3 AC Lines Protected: H-N: 30,000A, H-G: 15,000A, N-G: 15,000A; (The
maximum surge possible on household Wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 43dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• IR Detection Range / Degree: 17 ft/ 70 degrees
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only in dry locations
and only indoors. DO NOT plug into another relocatable power tap. DO
NOT "daisy chain" surge protectors. DO NOT use with any aquarium
equipment. DO NOT use if properly grounded outlets are not available. DO
NOT install this device if there is not at least 10 meters (30 feet) or more of
wire between the electrical outlet and electrical service panel. This device
features an internal protection that will disconnect the surge protective
component at the end of its useful life, but will maintain power to the load
– now unprotected.
TROUBLESHOOTING
Problem
The Always On outlets are
To confirm the setting, the LED
not receiving the power
on the IR Sensor will flash:
1 time
2 times
The HT705GR does not
power o the connected
equipment in standby
mode.
The IR Sensor is not
operating.
The IR Sensor flashes
frequently during normal
operation.
The surge protected LED
of the HT705GR is on, but
my IR Sensor LED does
not work (when the IR
Sensor is plugged in and
powered on).
The HT705GR is not
working / the protected
LED is not illuminated.
The connected equipment
turned o after 1 hour.
1
To Check
• Ensure plug connections are secure and
power switch is set to on/reset position.
• Ensure the equipment is plugged into the
Energy Saving outlets, not into the
Always On outlets.
• The HT705GR has not detected the
connected equipment in standby. Please
press the IR Sensor button for more than
3 seconds (LED will flash 3 times) and
release to enter into the setting mode.
When switching surge o /on again assure
all connected equipment are placed in
power-o or standby mode.
• Turn o the HT705GR power, re-plug the
IR Sensor cable, then turn on the
HT705GR.
• It may be radio frequency interference.
Check for other devices that may be
causing interference in the area.
• Move the IR Sensor to another location
that is within line of sight and normal
operation range of connected equipment
remote controls.
• Ensure the IR Sensor cable is safely and
securely connected to the HT705GR, and;
• Press the IR Sensor button, the Energy
Saving outlets will turn on.
• Remove all the connected equipment and
power cord from the wall outlet. Reset
surge protector by pressing and hold the
IR Sensor button for more than 10
seconds, then release.
• The default setting for the energy saving
time is 1 hour.
• If you want to change the energy saving
time, please check the quick start guide
section to change default energy saving
time from 1 or 2 hours.
2
