CyberPower HT1206UC2 User Manual

12-Outlet Surge Protector 12-Outlet Surge Protector
HT1206UC2 HT1206UC2
3
1
2
4
5
ADVANCED CLEAN
PROTECTION POWER
6
Network
7
4.8A
8
9
USER'S MANUAL
Copyright © 2017 Cyber Power Systems (USA), Inc. All rights reserved.
CONGRATULATIONS ON YOUR PURCHASE

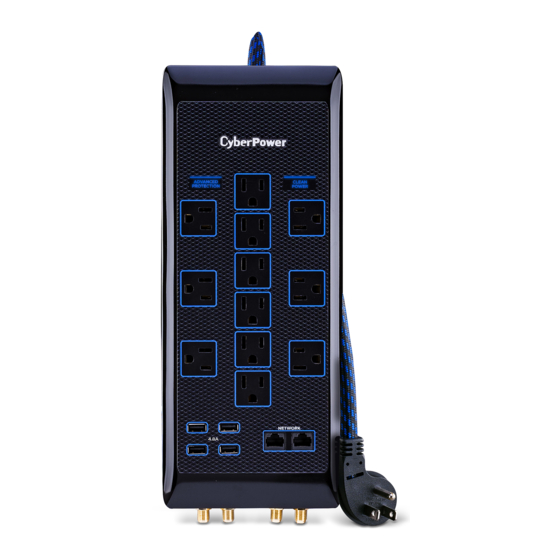

Thank you for selecting the CyberPower HT1206UC2
Premium Surge Protector. The information contained in this
manual explains the features and operation of the
HT1206UC2. Please take a few moments to read this manual.
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15A
breaker. When an overload occurs, it will automatically
switch o . To resume operation, ensure the overload
condition is removed and reset the surge protector by
switching the unit ON.
2. Firestop Design Advanced Metal-Oxide Varistor
(MOV) with Built-In Fuses
Encased component dissipates surge events and
potential flame, sparks and heat.
3. Wrapped Cord and Right Angle Plug
Easy to coil; kink and abrasion-resistant cord with low
profile right angle plug for easy cord management.
4. Clean Power - Ground LED
Illuminated when properly grounded.
5. Advanced Protection - Surge Protected LED
Illuminated when protection is working properly.
6. Twelve Outlets
6 standard and 6 transformer spaced outlets
7. USB Charging Ports*
Connect and charge up to 4 USB devices using the
surge protected USB charging ports.
*USB outlets cannot be used as a USB hub. This device
does not transfer data.
8. Ethernet Cable Protection
Compatible with Gigabit Ethernet.
9. Coaxial Cable Protection
Protects coaxial lines from surges and spikes.
SPECIFICATIONS
• Model Number: HT1206UC2
• Outlets: 6 standard and 6 transformer spaced outlets
• Power Cord Length: 6 ft
• Surge Protection: 4,680 Joules
• Electrical Rating: 125V/15A/1875W
• UL Clamping Voltage: UL 1449 3rd/500V (H-N, H-G, N-G)
• Maximum Peak Current: 135,000A
• 3 AC Lines Protected: H-N: 105,000A, H-G: 15,000A, N-G:
15,000A (The maximum surge possible on household
Wiring is 6,000 volts)
• Response Time: Less than 1 nanosecond
1
• Attenuation: Up to 43dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• USB Charging Rating : 5V/4.8A total
• Circuit Breaker: Resettable 15 Amp
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only
in dry locations and only indoors. DO NOT plug into
another relocatable power tap. DO NOT "daisy chain"
surge protectors. DO NOT use with any aquarium
equipment. DO NOT use if properly grounded outlets are
not available. DO NOT install this device if there is not at
least 10 meters (30 feet) or more of wire between the
electrical outlet and electrical service panel. This device
features an internal protection that will disconnect the
surge protective component at the end of its useful life,
but will maintain power to the load – now unprotected.
TROUBLESHOOTING
If the grounded indicator does not light when you plug in
the surge protector, move the surge protector to a
di erent grounded three-prong AC outlet. If it still does
not light, return the product to dealer for assistance. If
the surge protector proves to be working properly, your
outlets may not be a properly grounded and need to be
repaired by a professional electrician. If the grounded
indicator turns o after a period of use, the surge
protection has been depleted. Replace your surge
protector. If the protected indicator does not light, the
surge protector's AC lines is no longer protected from
surge. The surge protector may have received a power
surge or spike beyond its specified limits that overloaded
the protection circuitry and rendered it inactive. The
surge protector has protected your connected
equipment as designed, but it will not protect against
future surges & spikes and should be replaced.
TECHNICAL SUPPORT
Please contact our Tech Support department with
installation, troubleshooting, or general product questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation:
Monday – Friday 7:00am – 6:00pm CST
2
