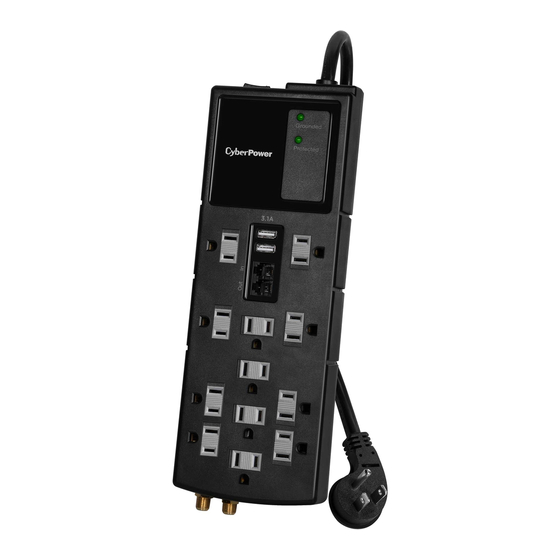

CyberPower HT1206TCU User Manual

12-Outlet Surge Protector 12-Outlet Surge Protector
HT1206TCU HT1206TCU
1
5
6
7
USER'S MANUAL
Copyright © 2017 Cyber Power Systems, Inc. All rights reserved.
CONGRATULATIONS ON YOUR PURCHASE
Thank you for selecting the CyberPower HT1206TCU Surge
Protector. The information contained in this brochure
explains the features and operation of the HT1206TCU.
Please take a few moments to read this manual.
FEATURES
1. ON/OFF Reset Control Switch and Circuit Breaker
Controls power to all outlets. The switch is also a 15A
breaker. When an overload occurs, it will automatically
switch o . To resume operation, ensure the overload
condition is removed and reset the surge protector by
switching the unit ON.
2. Ground Indicator LED
Illuminated when the Ground protection feature is
working properly.
2 3. Surge Protected Indicator
Illuminated when the surge protection feature is working
3
properly.
4. Eight Standard Outlets and Four Transformers
Safety Covers
Slide the plastic outlet cover over outlets that are not
used. This ensures the safety of children and prevents
potential electric shocks and damage caused by a highly
dusty environments.
5. USB Charging Ports*
Connect and charge up to two (2) USB devices using the
surge protected USB charging ports.
*USB outlets cannot be used as a USB hub. This device
does not transfer data.
6. Surge Protected Data Line Connections
Protects your equipment from surges along phone lines.
A. Connect the phone line from wall outlet into the "In"
port.
B. Connect the phone lines to the "Out" ports.
4
7. Surge Protected Cable and Satellite Connections
Protects coaxial lines from surges and spikes.
SPECIFICATIONS
• Model Number: HT1206TCU
• Outlets:
8 Standard Outlets and 4 Transformers
• Power Cord length: 6 ft
• Surge Protection: 4,500 Joules
• Electrical Rating: 125V/15A/1875W
• UL Clamping Voltage: UL 1449 3rd/500V (H-N, H-G, N-G)
• Maximum Peak Current: 165,000A
• 3 AC Lines Protected: H-N: 105,000A, H-G: 30,000A, N-G:
30,000A; (The maximum surge possible on household
Wiring is 6,000 volts)
1
• Response Time: Less than 1 nanosecond
• Attenuation: Up to 43dB
• EMI/RFI Filtration: 150 kHz to 100 MHz
• USB Charger Rating: 5V/3.1A total
• Circuit Breaker: Resettable 15 Amp
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK - Use only
in dry locations and only indoors. DO NOT plug into
another relocatable power tap. DO NOT "daisy chain"
surge protectors. DO NOT use with any aquarium
equipment. DO NOT use if properly grounded outlets are
not available. DO NOT install this device if there is not at
least 10 meters (30 feet) or more of wire between the
electrical outlet and electrical service panel. This device
features an internal protection that will disconnect the
surge protective component at the end of its useful life,
but will maintain power to the load – now unprotected.
TROUBLESHOOTING
If the Grounded indicator does not light when you plug in
the surge protector, move the surge protector to a
di erent grounded three-prong AC outlet. If it still does
not light, return the product to dealer for assistance. If
the surge protector proves to be working properly, your
outlets may not be a properly grounded and need to be
repaired by a professional electrician. If the Grounded
indicator turns o after a period of use, the surge
protection has been depleted. Replace your surge
protector.
If the Protected indicator does not light, the surge
protector's AC lines is no longer protected from surge.
Replace the surge protector. The surge protector may
have received a power surge or spike beyond its
specified limits that overloaded the protection circuitry
and rendered it inactive. The surge protector has
protected your connected equipment, but it will not
protect against future surges and spikes.
TECHNICAL SUPPORT
Please contact our Tech Support department with
installation, troubleshooting, or general product
questions.
• Phone: 1-877-297-6937
• Email: tech@cpsww.com
• Hours of Operation: Monday – Friday, 7:00am – 6:00pm
CST
