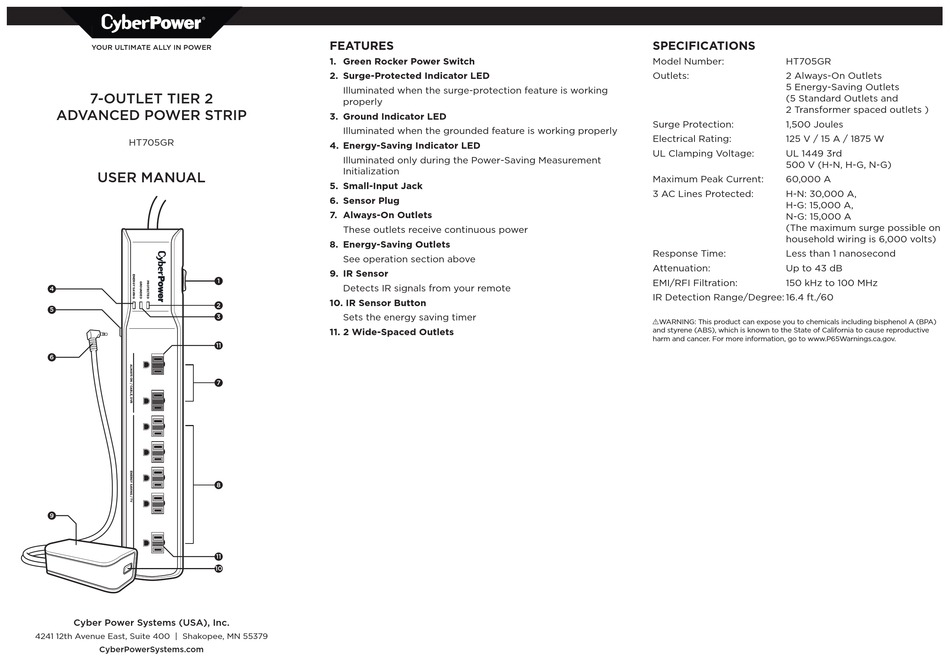

CyberPower HT705GR User Manual

YOUR ULTIMATE ALLY IN POWER
7-OUTLET TIER 2
ADVANCED POWER STRIP

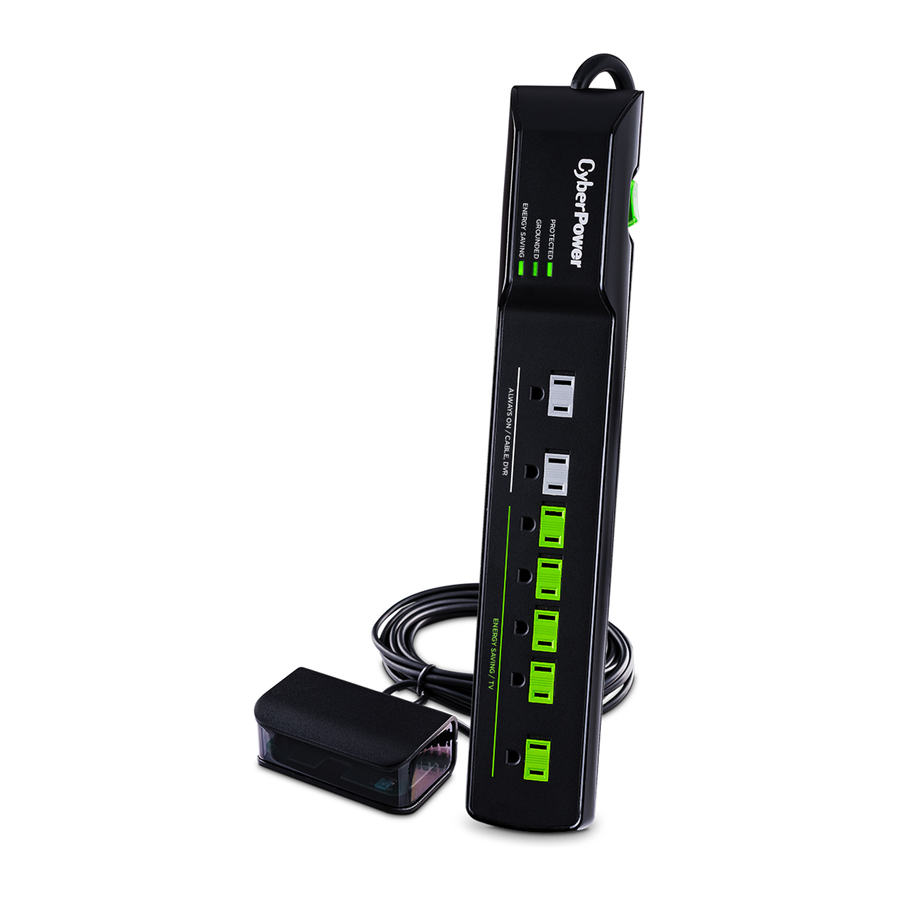

HT705GR
USER MANUAL
4
5
6
9
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379
CyberPowerSystems.com
FEATURES
1. Green Rocker Power Switch
2. Surge-Protected Indicator LED
Illuminated when the surge-protection feature is working
properly
3. Ground Indicator LED
Illuminated when the grounded feature is working properly
4. Energy-Saving Indicator LED
Illuminated only during the Power-Saving Measurement
Initialization
5. Small-Input Jack
6. Sensor Plug
7. Always-On Outlets
These outlets receive continuous power
8. Energy-Saving Outlets
See operation section above
9. IR Sensor
1
Detects IR signals from your remote
10. IR Sensor Button
2
Sets the energy saving timer
3
11. 2 Wide-Spaced Outlets
11
7
8
11
10
SPECIFICATIONS
Model Number: HT705GR
Outlets: 2 Always-On Outlets
5 Energy-Saving Outlets
(5 Standard Outlets and
2 Transformer spaced outlets )
Surge Protection: 1,500 Joules
Electrical Rating: 125 V / 15 A / 1875 W
UL Clamping Voltage: UL 1449 3rd
500 V (H-N, H-G, N-G)
Maximum Peak Current: 60,000 A
3 AC Lines Protected: H-N: 30,000 A,
H-G: 15,000 A,
N-G: 15,000 A
(The maximum surge possible on
household wiring is 6,000 volts)
Response Time: Less than 1 nanosecond
Attenuation: Up to 43 dB
EMI/RFI Filtration: 150 kHz to 100 MHz
IR Detection Range/Degree: 16.4 ft./60
i WARNING: This product can expose you to chemicals including bisphenol A (BPA)
and styrene (ABS), which is known to the State of California to cause reproductive
harm and cancer. For more information, go to www.P65Warnings.ca.gov.
