Summary of Contents for Resource Penelope 2

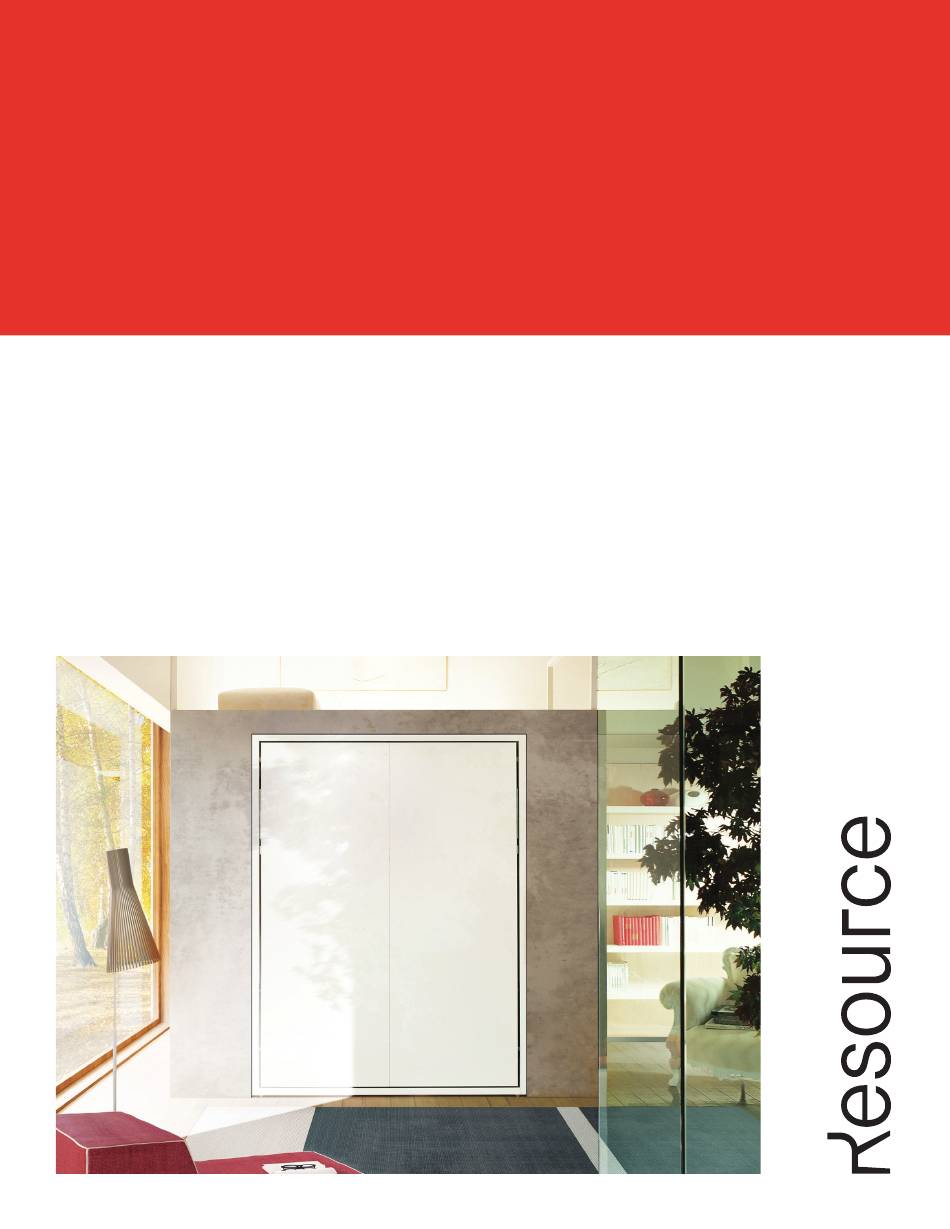

  • Page 1 Assembly Instructions Penelope 2...
  • Page 2 Warranties for all products purchased from Resource Furniture, LLC are only valid if the product has been properly assembled, Installed by a trained professional, and operated in accordance with the assembly instructions. Resource Furniture accepts no responsibility for any damage or injury caused by Improper Installation.
  • Page 3 PENELOPE 2 OVERVIEW PENELOPE 2 86 5/8 65 3/4 13 3/4 86 5/8 65 3/4 PENELOPE 2 MATTRESS SPECIFICATIONS MATTRESS Recommended weight: ~ 66 lbs weight: ~ 66lbs size: 78 x 59 x 7inches Recommended dimensions: 78 3/4 x 59 x 7”...
  • Page 4 PENELOPE 2 OVERVIEW...
  • Page 5 PENELOPE 2 OVERVIEW Note: Bed base comes fully assembled but can be disassembled if needed.
  • Page 6 PENELOPE 2 COMPONENTS CODE QTY. COMPONENTS Right vertical panel Left vertical panel Top horizontal panel Bottom horizontal panel Bed frame Back panels Back panels spline Mattress support bar PENELOPE 2 TOOLS QTY. DESCRIPTION Allen wrench 4 MM Allen wrench 5 MM...
  • Page 7 Hex screw - for attaching bed M8x30MM frame to structure Hex screw - for mattress 5MA x 20 TPSE support bar PENELOPE 2 WALL MOUNTING HARDWARE CODE QTY. DESCRIPTION Wall anchors supplied anchors are for solid concrete walls only. Wall brackets 3.5x20MM wood screw for attaching wall...
  • Page 8 STRUCTURE ASSEMBLY Screw 4 (A) pins into both the (1) right vertical and (2) left vertical panels. Attach the (3) horizontal top and (4) horizontal bottom panels to the vertical panels by inserting and tightening 8 (B) cams. Attach the (7) lower back panel to the structure with 14 (C) wood screws. Insert (8) back panel spline into lower back panel and place the (7) upper back panel on top of the spline attaching it to the structure using 14 (C) screws.
  • Page 9 OPTIONAL WAND LIGHTING Headboard must be installed on site before light fixture. Drill 1/2” hole at 10 1/4” above headboard and 1 1/2” in from the side. Install mounting Plate with provided wood screws, aligning the 1/2” drill holes. Wand Light Exploded Diagram Cord Length = 118”...
  • Page 10 LEVELING THE STRUCTURE Ensure that the structure is level and plumb. To compensate for any floor unevenness, use the adjustable feet on the bottom panel (det. 21a) to level the structure. detail 21a...
  • Page 11 WALL BED ATTACHMENT After the unit is level and plumb it should be securely attached to the wall using the metal angle mounting brackets as shown in the images below. A proper wall anchor suitable for the wall’s construction must be selected by the contractor or installer.
  • Page 12 MATTRESS BAR INSTALLATION Mattress bar must be installed before the bed base is inserted into the structure. Hex screw REF: P...
  • Page 13 BED BASE INSTALLATION Inserting the bed base into the structure.
  • Page 14 BED BASE INSTALLATION Attaching the bed base to the structure. Hex screw REF: O...
  • Page 15 HEADBOARD AND MATTRESS INSTALLATION Headboard is optional.
  • Page 16 BED OPERATION Opening the Unit.
  • Page 17 BED OPERATION Closing the Unit.
  • Page 18 Make sure to support the bed frame for the entire descent until both legs are resting on the fl oor. NOTE: The Penelope 2 will then be safely locked in place in the open position. Release the two mattress straps by squeezing the center of the clasp.
  • Page 19 This indicates that the bed is now fully locked. Have a great day! NOTE: Your Penelope 2 is designed so that most bedding can remain on the bed when closed. If you experience diffi culty closing the bed, your bedding might be too thick.
  • Page 20 ResourceFurniture.com...
