Resource Oslo Series Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Assembly
Instructions
Oslo

Advertisement

loading
Need help?

Need help?

Do you have a question about the Oslo Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Resource Oslo Series

Summary of Contents for Resource Oslo Series

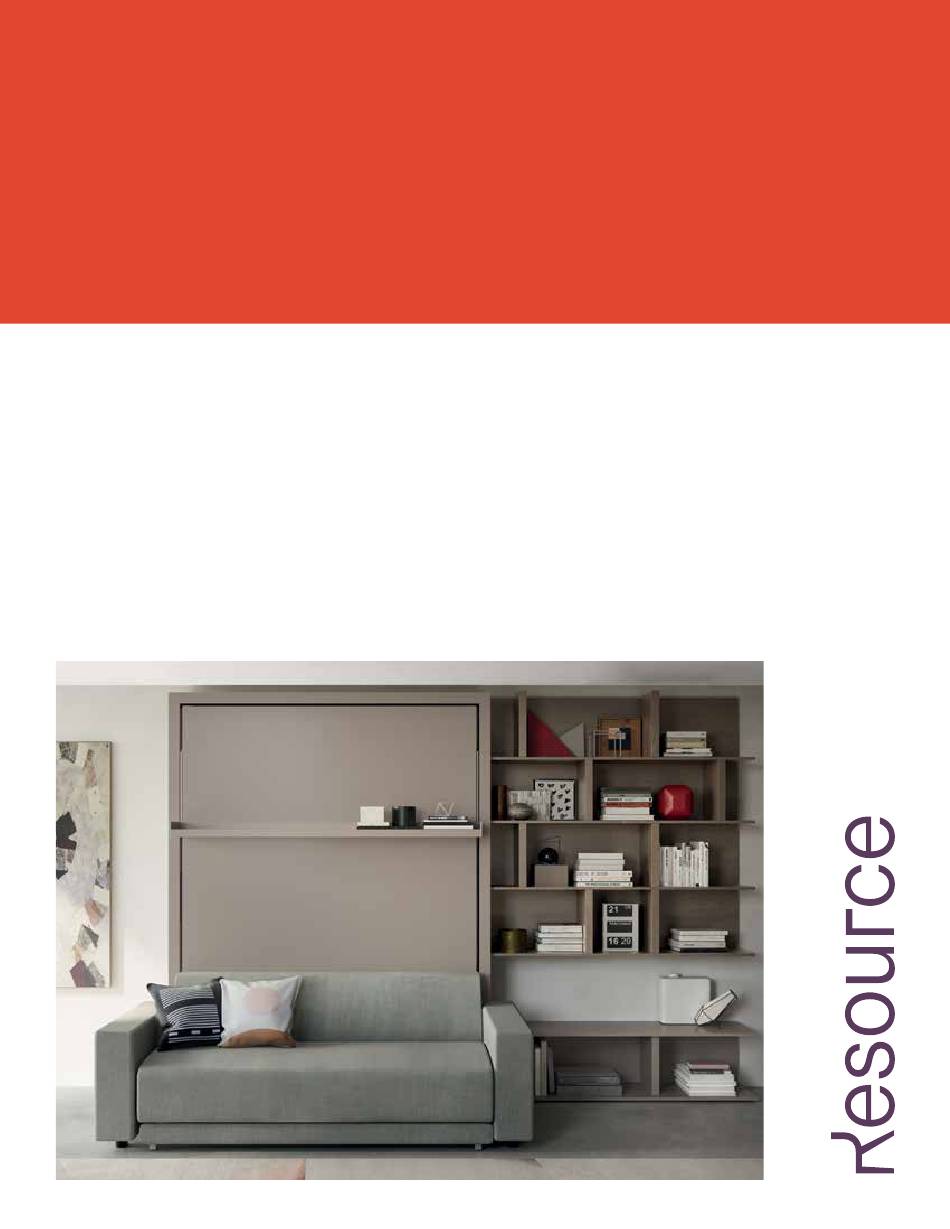

  • Page 1 Assembly Instructions Oslo...
  • Page 2 OSLO Oslo 173 Oslo 301 Oslo...
  • Page 3 X All hardware must be properly tightened. No parts of the model should be left loose or unstable Warranties for all products purchased from Resource Furniture, LLC are only valid if the product has been properly assembled , installed by a trained professional, and operated in accordance with the assembly instructions.
  • Page 4 STRUCTURAL PARTS - OSLO 301 CODE QUANTITY COMPONENT Right Side Panel Left Side Panel Top Horizontal Panel Base Left/Right Small Side Panels (already attached to parts 1 & 2) Right Back Panel Left Back Panel Bedframe Mattress Support Bar Shelf Sofa Underseat Storage Box Padded Sofa Seat Sofa Seat Extension...
  • Page 5 ASSEMBLY OF THE STRUCTURE Oslo 301 Oslo...
  • Page 6 STRUCTURAL PARTS - OSLO 173 CODE QUANTITY COMPONENT Right Side Panel Left Side Panel Top Horizontal Panel Base Left/Right Small Side Panels (already attached to parts 1 & 2) Right Back Panel Left Back Panel Bedframe Mattress Support Bar Shelf Sofa Underseat Storage Box Padded Sofa Seat Padded Sofa Backrest...
  • Page 7 ASSEMBLY OF THE STRUCTURE Oslo 173 Oslo...
  • Page 8 STRUCTURAL HARDWARE - ALL VERSIONS CODE QUANTITY COMPONENT DESCRIPTION 7 x 36 6MA Pins D15 L17 Cam Connectors 3.5 x 20 Screws for back panels 5MA x 50 TPSE Screws for side panels 4MA x 18 TBCE Screws for mattress support bar 4 x 40 Screws to attach top panel Screws to secure sofa levers...
  • Page 9 Boiserie Shelves (287mm) Boiserie Shelves ( Boiserie Panel Boiserie Box 327mm) BOISERIE PANEL HARDWARE CODE DESCRIPTION Metal Shelf Pins Boilts for Shelf Pins Boiserie Bar Wall Anchors Oslo...
  • Page 10 ASSEMBLY OF THE STRUCTURE IMAGE 1 Attach the left side panel to the base using 2 screws. These pieces are pre-assembled. IMAGE 2 Attach the left back panel to the left side panel using 3 pins and 3 cam connectors. Attach the right back panel to the left back panel with 3...
  • Page 11 ASSEMBLY OF THE STRUCTURE IMAGE 3 Attach the top horizontal panel to the left side panel with 2 pins and 2 cam connectors, and to the back panels with 4 screws. Oslo...
  • Page 12 ASSEMBLY OF THE STRUCTURE IMAGE 4 Attach the right side panel to the base using 2 screws, and to the top horizontal panel and back panels with 5 pins and 5 cam connectors Secure the back panels to the base using 7 screws.
  • Page 13 ASSEMBLY OF THE BED FRAME IMAGE 5 Unscrew the saftey plates fixed to the structure base, as shown in det. 5a. Oslo...
  • Page 14 ASSEMBLY OF THE BED FRAME IMAGE 6 Position the bed frame within the structure as shown. Place the levers located near the head of the bed frame into their slots as shown in det. 6a, and re-attach the safety plates from Image 5. Ensure that pins on the bedframe slide into the base of the structure as shown in det.
  • Page 15 ASSEMBLY OF THE BED FRAME IMAGE 7 Attach the mattress support bar to the bed frame using six screws. Oslo...
  • Page 16 ASSEMBLY OF THE BED FRAME IMAGE 8 Lift the bed frame into its upright vertical position. Screw the base pin to the lever cords, leaving the screw on the outer side. Pass the cord under the pulleys on the base and secure the pins on the appropriate seat.
  • Page 17 ATTACHING THE SHELF IMAGE 9 Attach the shelf to the feet of the bedframe, using the 6 screws attached to the shelf, as shown. Oslo...
  • Page 18 OPENING THE BED IMAGE 10 Grasp the handle in the center of the shelf and pull down the bed, gently accompanying the bed with both hands until it reaches the ground. Oslo...
  • Page 19 ASSEMBLY OF THE BED & HEADBOARD IMAGE 11 Attach the headboard (if purchased by client) to the back of the structure. Secure the mattress to the bedframe by fastening the two buckled straps. Oslo...
  • Page 20 ASSEMBLY OF THE BED IMAGE 12 To balance the bedframe, adjust the spring tension controllers with the 8mm allen wrench provided. Turn clockwise to adjust the tension in order to close the bed with ease. ensuring that each side of the bed- frame is adjusted equally.

  • Page 21: Led Lighting

    LED LIGHTING IMAGE 13 On the back of the cabinet, connect the two LED light wires to the electric driver (det.13a). Ensure that the power cord will be accessible when the bed is positioned against the wall - an extension cord may be necessary.
  • Page 22 ASSEMBLY OF THE STRUCTURE IMAGE 14 Ensure that the structure is level and plumb. To compensate for any floor unevenness, use the adjustable feet on the bottom panel (det. 14a) to level the structure. Oslo...
  • Page 23 ASSEMBLY OF THE BOISERIE PANELS IMAGE 15 Insert and fasten the metal shelf pins into the holes on the boiserie panel using 2 bolts each. IMAGE 16 IMAGE 17 Place the boiserie panel next to the bed and ensure Slide the boiserie shelves over the metal panel is level and plumb.
  • Page 24 ASSEMBLY OF THE BOISERIE PANELS IMAGE 18 & 19 Insert and fasten the bottom metal shelf pins into the holes on the boiserie panel. Slide the bottom boiserie shelves over the pins. Oslo...
  • Page 25 INSTALLATION OF THE SOFA IMAGE 20 Remove and rotate the sofa storage box, as shown. IMAGE 21 Attach the sofa storage box to the base using 4 screws. Oslo...
  • Page 26 INSTALLATION OF THE SOFA IMAGE 22 Position the padded sofa seat onto the base of the structure, as shown. IMAGE 23 Ensure that the holes in the metal sofa seat levers align with the predrilled holes in the base of the structure. Secure the levers on each side by inserting and tightening 2 screws.
  • Page 27 INSTALLATION OF THE SOFA IMAGES 24 - 27 Pass the screw through the levers as shown, placing a washer between each lever. Repeat on the opposite side. Oslo...
  • Page 28 INSTALLATION OF THE SOFA IMAGES 28 - 30 Tighten the screw as shown and secure the levers together using 1 nut. Repeat on the opposite side. Oslo...
  • Page 29 INSTALLATION OF THE SOFA IMAGE 32 Close the sofa seat, and attach the padded backrest to the structure by sliding it into the four tapers as shown. Oslo...

  • Page 30: Installing The Armrests

    INSTALLING THE ARMRESTS IMAGES 34 & 35 Attach the right and left armrests to the base of the structure by sliding them into the metal tapers, as shown. IMAGE 36 - 60mm ARMRESTS If the client ordered 60mm right and left armrests, slide the armrests into the metal tapers on the base of the structure and secure the armrest by to the side panels on...
  • Page 31 INSTALLING THE SEAT & ARMRESTS IMAGES 37-41 If the client ordered the Oslo with the extended sofa seat, attach the seat to the sofa structure by sliding the seat into the metal tapers, as shown. Then, attach the armrests to the structure. Oslo...

This manual is also suitable for:

Oslo 173Oslo 301Oslo
