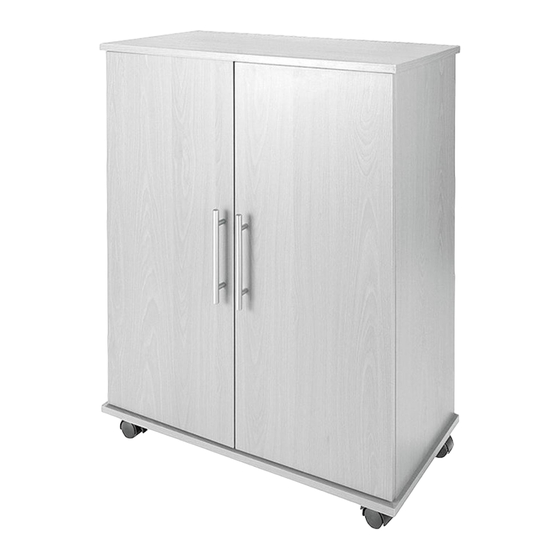

Storage Cupboard
Assembly Instructions
Dimensions
Width - 70.1cm
Depth - 35cm
Height - 86.5cm
Important
- Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
- Please keep for future reference
617/3113
617/3481
Verson 2 Date: 24/08/12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 617/3113
Summary of Contents for Argos 617/3113
- Page 1 Storage Cupboard Assembly Instructions 617/3113 - Please keep for future reference 617/3481 Dimensions Width - 70.1cm Depth - 35cm Height - 86.5cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Check you have all the • Do not stand on the product, • We do not components and tools listed on this could cause damage. recommend the pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the panels listed below Pilot holes for guidance only Pilot holes for guidance only Left side panel (78 x 32cm) Bottom panel (70 x 34.6cm) Pilot holes for guidance only...
- Page 4 Components - Fittings Note: The quantities below are the correct amount to complete the assembly. in some cases mor may be supplied than are required. (This screw is included in the door hing bag) 15mm Screw x 16 Door hinge x 4 14mm Screw x 17 30mm Screw x 4 50mm Screw x 4...
- Page 5 Assembly Instructions Step 1 Attaching hinges Insert Dowels into the Left side panel Right side panel Door hinges ‘back plates’onto the Left side panel and Right side panel Finished Finished front edge front edge Step 2 Attaching top panel Screw Locking pins into the Top panel Note: Insert Locking pins as far as shown.
- Page 6 Assembly Instructions Step 3 Attaching bottom Finished panel front edge Bottom panel onto the unit. Step 4 Fixing castors Front castors Castors onto the unit. Note: The Front castors feature a locking arm. We recommend you lock the castors when you have in place.
- Page 7 Assembly Instructions Step 6 Attaching door hinges Fix 2 Door hinges to each Doors using Screws Step 7 Hanging doors With help, slot Door hinges onto ‘hinge plates’. Tighten screw shown to lock hinges in position. Repeat opposite door. See ‘Hinge adjustment’ in step 9 if the doors need adjusting.
- Page 8 Assembly Instructions Step 8 Attaching shelf SIide Support covers onto Shelf supports lnsert Shelf supports (Support covers included) into the unit. before inserting the Shelf. Note: Set the shelf supports to the desired height. Slide the Shelf into the unit. Finished front edge...
- Page 9 Assembly Instructions Step 9 Hinge adjustment To move doors up or down: loosen screws shown and move doors to suit. once doors are aligned, re-tighten Screws Door To move doors in or out: loosen screw shown and move doors to suit. Re-tighten screws.
- Page 10 Assembly Instructions Step 10 Fixing to wall It is recommended that the a wall. Note: Wall plugs supplied are wall for solid wall only. Fix Wall strap to back of be used for your wall, seek top panel using Screws professional advice if in doubt With help, move storage cupboard into position.
-
Page 11: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings When drilling into walls always Important: Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
