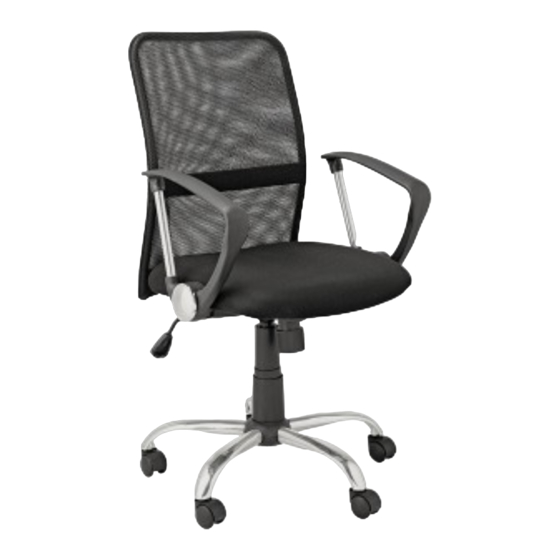

Mid Back Mesh Chair
Assembly Instructions
-
Please keep for future reference
6172846
Dimensions
Width -58cm
Depth - 57cm
Height - 92.5/102.5cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 0845 640 0800
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos 6172846
Summary of Contents for Argos 6172846
- Page 1 Mid Back Mesh Chair Assembly Instructions Please keep for future reference 6172846 Dimensions Width -58cm Depth - 57cm Height - 92.5/102.5cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the...
- Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly components and tools listed on the product during assembly, recommend the pages 3 and 4. this could cause damage. use of power drill/drivers for inserting screws, plastic bags and separate them to its nal position (in the same as this could damage the unit.
-
Page 3: Components - Parts
Components - Parts Please check you have all the parts listed below Backrest x1 Seat x 1 Left armrest x1 & Right armrest x 1 ( 59x45cm ) ( 46x46cm ) Base x 1 Gas lift x 1 Seat plate x 1 ( 320mm ) ( 100mm ) ( AJ19 A-2 ) - Page 4 Fittings Components - If you have damaged or missing components, call the Customer Helpline:0845 640 0800 Please check you have all the fittings listed below. Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. 20mm Bolts x 4 30mm Bolts x 4 25mm Bolts x6...
- Page 5 Assembly Instructions Step 1 Fitting the base Push all the five castors into the underside of the base Ensure all the castors NOTE: firmly located on the base. Insert the gas lift into base Put the gaslift cover on to the gaslift Ensure the gas lift is NOTE: fully...
- Page 6 Assembly Instructions Step 2 Fitting the Armrests Use bolts fix the left armrest and right armrest onto the unit It would be useful to NOTE: someone to help you at this stage. Step 3 Fitting the Backrest Use bolts C and to fix the backrest onto the seat plate...
- Page 7 Finishing the Unit Carefully place the unit in the desired location. Assembly is complete. If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 0800 489-499 Avebury Boulevard Milton Keynes MK9 2NW, Argos Limited...
