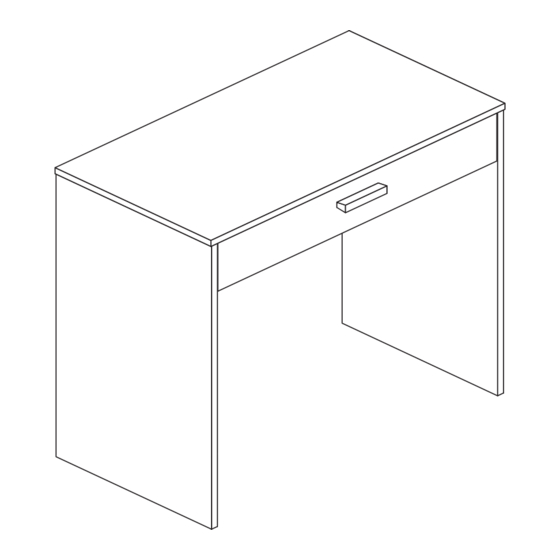

Attalia - Desk
Assembly Instructions -
Dimensions
Width - 74.5cm
Depth - 39.5cm
Height - 73.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
617/3742
MADE IN
BRITAIN
Issue 1 - 09/04/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Attalia 617/3742
Summary of Contents for Argos Attalia 617/3742
- Page 1 Attalia - Desk Assembly Instructions - 617/3742 Please keep for future reference Dimensions Width - 74.5cm Depth - 39.5cm MADE IN Height - 73.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 09/04/13...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 14.5kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D2317A) (D2170A) (D2171A) (745 x 395mm) (718 x 394mm) (718 x 394mm) Cross Rail...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Prepare the left side Place a runner the left side . Slide back the top of runner and use the 2nd hole from the front to fit the Finished 1st screw front edge Slide the runner back the other way and fit the 2nd screw into...
- Page 8 Assembly Instructions Step 8 Prepare the right side Place a runner the right side . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and Finished front edge fit the 2nd screw...
- Page 9 Assembly Instructions Step 9 Prepare the cross rail Tap 2 wooden dowels into the cross rail Insert 2 large locking Finished nuts into the cross rail front edge Step 10 Join the right side and cross rail Push the cross rail onto the right side p l a Use a screwdriver to...
- Page 10 Assembly Instructions Step 12 Note: The top edge of the modesty and right side must be flush. Fit the modesty Push the modesty onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the modesty Support the Note: Support the modesty...
- Page 11 Assembly Instructions Step 15 Fit the top Lower the top down onto the unit. Use a screwdriver to tighten the 4 large locking nuts fitted to the left side and right side Step 16 Fit the drawer Slide both of the runners forward and locate the drawer sides between them, lining...
- Page 12 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2859...
- Page 13 Attalia - Desk Assembly Instructions - 617/3742 Please keep for future reference Dimensions Width - 74.5cm Depth - 39.5cm MADE IN Height - 73.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 2 - 15/01/15...
- Page 14 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 14.5kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 15 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side Right Side (D2317A) (D2170A) (D2171A) (745 x 395mm) (718 x 394mm) (718 x 394mm) Cross Rail...
- Page 16 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 17 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer fronts Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten metal dowels up fully against...
- Page 18 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 19 Assembly Instructions Step 7 Prepare the left side Place a runner the left side . Slide back the top of runner and use the 2nd hole from the front to fit the Finished 1st screw front edge Slide the runner back the other way and fit the 2nd screw into...
- Page 20 Assembly Instructions Step 8 Prepare the right side Place a runner the right side . Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Slide the runner back the other way and Finished front edge fit the 2nd screw...
- Page 21 Assembly Instructions Step 9 Prepare the cross rail Tap 2 wooden dowels into the cross rail Insert 2 large locking Finished nuts into the cross rail front edge Step 10 Join the right side and cross rail Push the cross rail onto the right side p l a Use a screwdriver to...
- Page 22 Assembly Instructions Step 12 Note: The top edge of the modesty and right side must be flush. Fit the modesty Push the modesty onto the right side Use a screwdriver to tighten the 2 large locking nuts fitted to the modesty Support the Note: Support the modesty...
- Page 23 Assembly Instructions Step 15 Fit the top Lower the top down onto the unit. Use a screwdriver to tighten the 4 large locking nuts fitted to the left side and right side Step 16 Fit the drawer Slide both of the runners forward and locate the drawer sides between them, lining...
- Page 24 Lift with care. If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2859...
