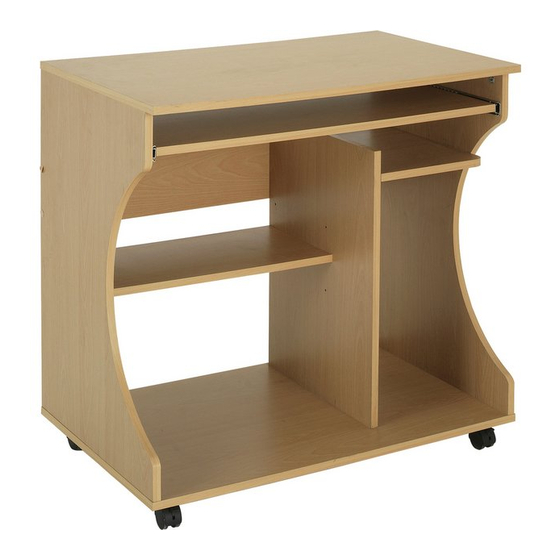

Curved PC Trolley
Dimensions
Width - 80cm
Depth - 48cm
Height - 76cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
617/9447
617/9674
issue 4 3/12/10
Advertisement
Table of Contents
Related Manuals for Argos 617/9447
Summary of Contents for Argos 617/9447
- Page 1 Curved PC Trolley Assembly Instructions - 617/9447 Please keep for future reference 617/9674 Dimensions Width - 80cm Depth - 48cm Height - 76cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 2 Safety and care advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand on the panels, this We do not components and tools listed on could cause damage. recommend the use pages 2 and 3.
- Page 3 Components - Panels If you have damaged or missing components, call the Customer Helpline:08456 400800 Please check you have all the panels listed below Keyboard (74.6 x 30cm) T op (80 x 48cm) Centre support (48 x 36.8cm) Left side (67.5 x 47.8cm) Back support (76.8 x 16.7cm)
- Page 4 Components - Fittings Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required. Locking pin x 4 Locking nut x 4 Dowel x 6 45mm Screw x 17 Shelf support x 4...
- Page 5 Assembly Instructions Step 1 Step 1 Fitting the runners Note: It would be useful to ask someone to help you at this stage. Use Screws to fix the Runner left , onto Left side 2 . Slide top of the runner to access the first hole.
- Page 6 Assembly Instructions Step 2 Fitting the centre support Note: It would be useful to ask someone to help you at this stage. Insert Dowels into Cross shelf Use Screws to fix Back support onto Centre support 5 . Use Screws to fix Cross shelf onto the...
- Page 7 Assembly Instructions Step 3 - continued Use Screws to fix Left side 2 , Right side onto the unit. Use Screws to fix the Front castors Castors onto the unit. Note: The Front castors feature a locking arm. We recommend you lock the castors when you have finally positioned the unit in place.
- Page 8 Assembly Instructions Step 5 Fitting the drawer panel Note: It would be useful to ask someone to help you at this stage. Use Screws to fix the Keyboard onto the unit. Step 6 Fitting the shelf Place Shelf supports into the unit. Slide shelf into the unit.
