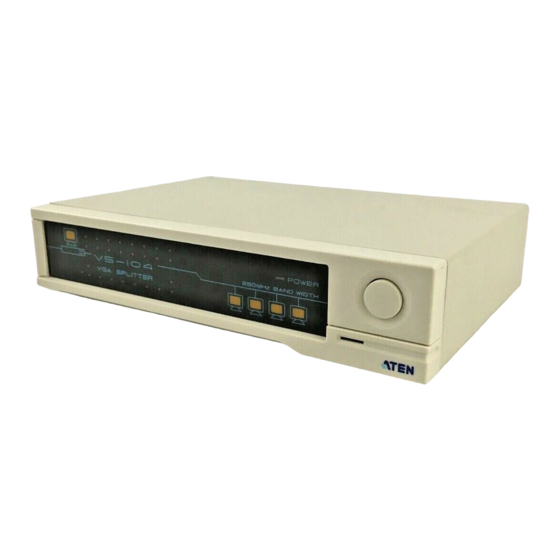

ATEN VS-104 User Manual

ATEN VS-104 User Manual

Video splitter
Hide thumbs Also See for VS-104:

Advertisement

Quick Links

Video Splitter
VS-104 / VS-108
User's Manual
VS-1048
07-11-02
Page 1 of 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VS-104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ATEN VS-104

  • Page 1 Video Splitter VS-104 / VS-108 User's Manual VS-1048 07-11-02 Page 1 of 6...
  • Page 2 1 User's Manual Please read this manual thoroughly and follow the installation procedures carefully to prevent any damage to the AS-154P and/or the devices it connects to. ©Copyright 1997 Aten® International Co., Ltd. Manual Part No. PAPE-1033-400 Printed in Taiwan 09/96 All brand names and trademarks are the registered property of their respective owners.
  • Page 3 The VS-104/VS-108 Video Separator (Splitter) is a boosting device to duplicate the video signal from one source to 4 (VS-104) or 8 (VS-108) outputs, and is ideal for any monitor using analog signals. The VS-104 and VS-108 also extend the transmission distance up to 210 feet making them excellent for public broadcast systems. To get multiple, high quality, VGA, SVGA or Multisync video signals over long distances without hassle, the VS-104 and VS-108 are your best choice.
  • Page 4 Front and Rear Views Note: 1. This product is not suitable for CGA, EGA, or Monochrome type monitors using a digital video signal. 2. UL2919 rated cable is recommended for the best video quality. VS-1048 07-11-02 Page 4 of 6...
  • Page 5 Use DC 9V only. Daisy Chain Installation: Both the VS-104 and VS-108 are suitable for first or lower stage Daisy Chain installation: 1. Connect the Video Splitter's VIDEO OUT port to any VIDEO IN port of the lower stage Video Splitter with a Male to Female HD-15 cable.
  • Page 6: Specifications

    Specifications Function VS-104 VS-108 Connectors Input 1 High Density HD-15 Male Output 4 High Density HD-15 Female 8 High Density HD-15 Female VGA Bandwidth (-3db) 200 MHz 180 MHz VGA Res/Vert Freq. 1600x1200 @70 Hz 1600x1200 @60 Hz Power Consumption DC 9V, 150mA (max.)

This manual is also suitable for:

Vs-108
