- Page 1 Video Splitter USER MANUAL VS-104 / VS-108...
-
Page 2: Fcc Information
FCC Information WARNING!!! This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. -
Page 3: Package Contents

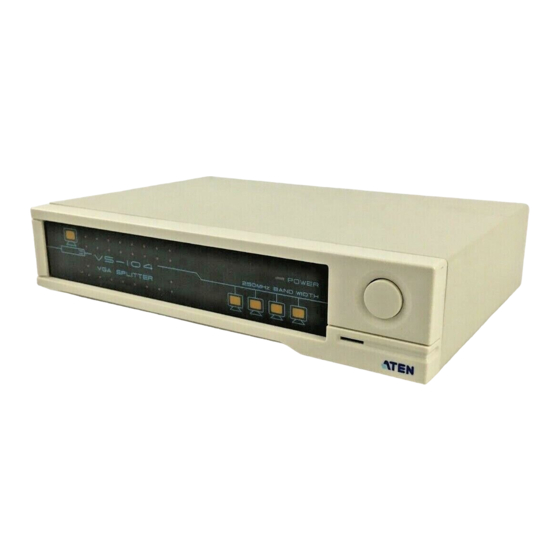

Copyright © 2006 ATEN International Co., Ltd. Manual Part No. PAPE-XXXX-XXXX Manual Date: 2008-06-11 ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners. - 3 -... - Page 4 Overview The VS-104 / VS-108 Video Splitter is a boosting device to duplicate the video signal from one source to 4 (VS-104) or 8 (VS-108) outputs, and is ideal for any monitor using analog signals. The VS-104 and VS-108 also extend the transmission distance up to 210 feet making them excellent for public broadcast systems.
- Page 5 Features One Video Input to 4/8 Video Outputs Transmission Distance: 65m (210ft.) Suitable for SVGA, VGA and Multisync Monitors Daisy Chainable Power Saving Mode: Power LED Flashes to Indicate When Computer Is Off. Supports one XGA or VESA DDC Port (Video Out 1) DDC Compatible Requirements If you connect a DDC type monitor to Video Out 1, all...
-
Page 6: Front And Rear Views
Front and Rear Views Note: 1. This product is not suitable for CGA, EGA, or Monochrome type monitors using a digital video signal. 2. UL2919 rated cable is recommended for the best video quality. - 6 -... -
Page 7: Standalone Installation
Gain (shorter distance operation). Daisy Chain Installation Both the VS-104 and VS-108 can be daisy chained: 1. Connect the Video Splitter's VIDEO OUT port to any VIDEO IN port of the lower stage Video Splitter with a Male to Female HD-15 cable. -
Page 8: Installation Diagram
Installation Diagram - 8 -... -
Page 9: Specifications
Specifications VS-108 Function VS-104 Connectors Input 1 High Density HD-15 M Output 4 High Density HD-15 F 8 High Density HD-15 F VGA Bandwidth (-3db) 250 MHz 200 MHz VGA Res/Vert Freq. 1920 x 1440 @60 Hz 1600 x 1200 @60 Hz Power Consumption DC 9V, 180mA (max.) -
Page 10: Pin Assignments
HD-15 Pin Assignments Video In Assignment Assignment Red video input No pin Green video input Logic ground Blue video input ID bit Ground Serial data line (SDA) Ground H. Sync / H+V Ground V Sync (VCLK for DDC) Ground Data clock line (SCL) Ground Video Out Assignment... -
Page 11: Limited Warranty
Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY EXCEED THE PRICE PAID FOR THE PRODUCT FROM THE DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THE PRODUCT, DISK OR ITS DOCUMENTATION. The direct vendor makes no warranty or representation, expressed, implied, or statutory with respect to the contents or use of this documentation, and specially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
