Installing the Control System
2.2

Interfaces and cables

Position of the interfaces and elements

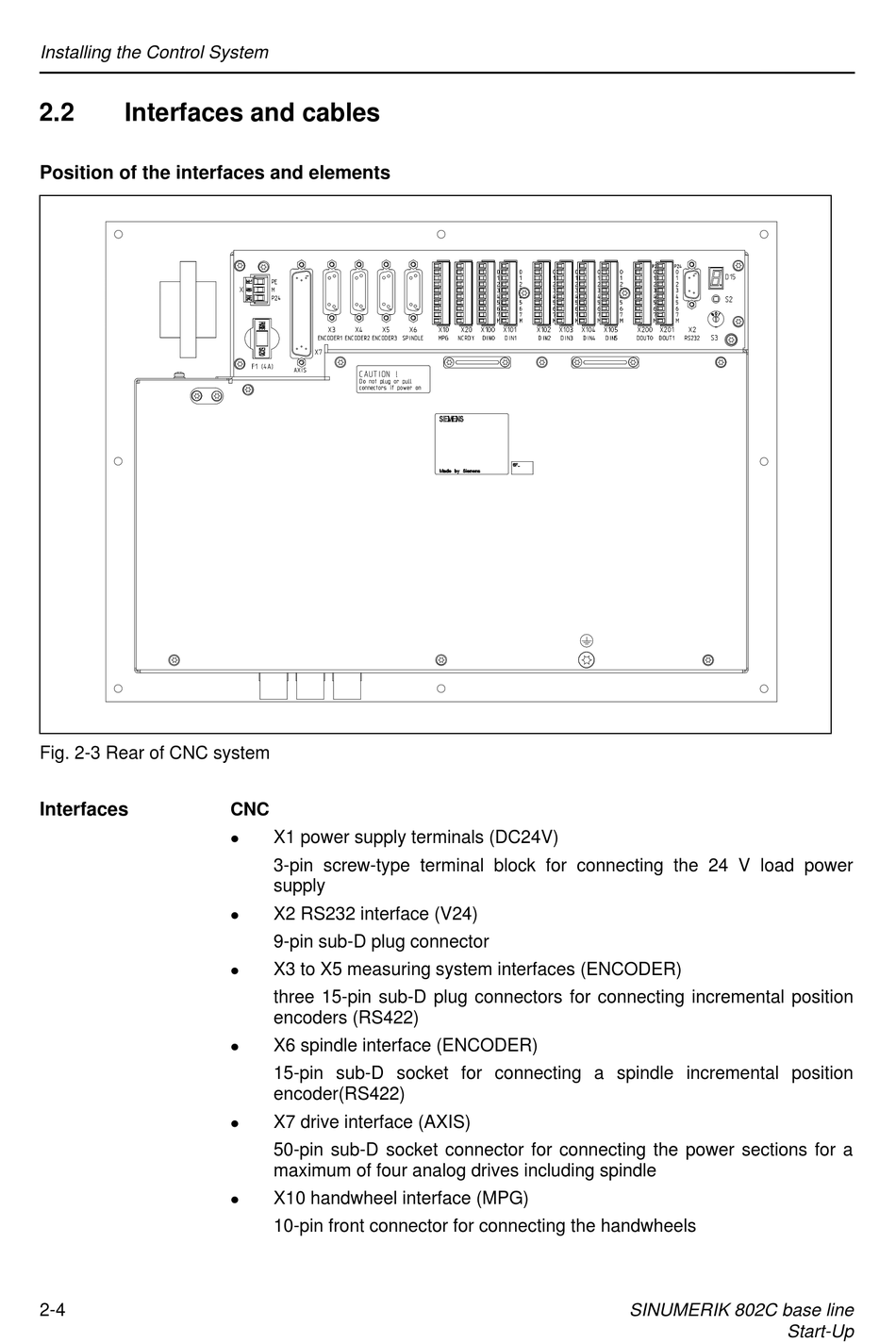

Fig. 2-3 Rear of CNC system
Interfaces
2-4
CNC
X1 power supply terminals (DC24V)
z
3-pin screw-type terminal block for connecting the 24 V load power
supply
X2 RS232 interface (V24)
z
9-pin sub-D plug connector
X3 to X5 measuring system interfaces (ENCODER)
z
three 15-pin sub-D plug connectors for connecting incremental position
encoders (RS422)
X6 spindle interface (ENCODER)
z
15-pin sub-D socket for connecting a spindle incremental position
encoder(RS422)
X7 drive interface (AXIS)
z
50-pin sub-D socket connector for connecting the power sections for a
maximum of four analog drives including spindle
X10 handwheel interface (MPG)
z
10-pin front connector for connecting the handwheels
