- Page 1 JIGSAW Model No. CJS380 PART NO: 6462182 OPERATING & MAINTENANCE INSTRUCTIONS GC07/13...
-
Page 2: Introduction
INTRODUCTION Thank you for purchasing this CLARKE Jigsaw. Before attempting to use the machine, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION .................. 2 GUARANTEE ..................2 ENVIRONMENTAL PROTECTION ............2 TABLE OF CONTENTS ................3 GENERAL SAFETY RULES ..............4 JIGSAW SAFETY INSTRUCTIONS ............6 ELECTRICAL CONNECTIONS .............. 7 OVERVIEW ..................8 INSTALLING/CHANGING BLADES ............9 OPERATION ..................9 MAINTENANCE ................... -
Page 4: General Safety Rules
GENERAL SAFETY RULES WORK AREA 1. Keep the work area clean and well lit. Cluttered and dark areas invite accidents. 2. Do not operate power tools in explosive atmospheres such as in the presence of flammable liquids, gasses or dust. Power tools create sparks which may ignite dust or fumes. - Page 5 5. Dress properly. Do not wear loose clothing or jewellery which may get caught in moving parts. Wear protective hair covering to contain long hair. For best footing, wear rubber soled footwear. Keep floor clear of oil, scrap wood, etc. 6.
-
Page 6: Jigsaw Safety Instructions
2. Using the correct blade. Use the appropriate saw blade for the material being cut. Different blades are available from your Clarke dealer. 3. Use of the mains cable. Keep the mains cable well away from the machine and ensure an adequate electrical supply is close at hand so that the operation is not restricted by the length of the cable. -
Page 7: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electric- ity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 8: Overview

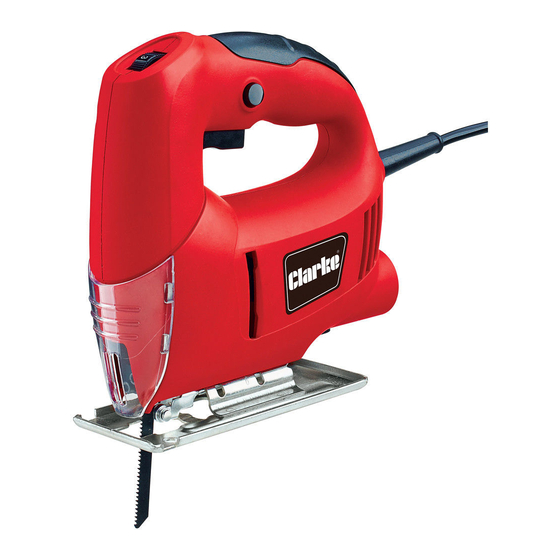

OVERVIEW The CLARKE CJS380 is a variable speed jigsaw fitted with a lock-on button for continuous operation. It has a dust extract port for connection to a vacuum system and is supplied with 1.8 metres of cable and plug. When unpacking, check for damage or shortages etc. Any found should be reported to your CLARKE dealer where the appliance was originally purchased. -
Page 9: Installing/Changing Blades
INSTALLING/CHANGING BLADES 1. With the jigsaw disconnected from the mains supply, slacken off the two blade securing screws, using the hexagonal key stored in the bottom of the jigsaw body. • The key must be inserted through the slots in the blade guard. 2. - Page 10 USING THE JIGSAW 1. When starting, place the sole-plate on the workpiece and let the blade touch the cut line. To make your cut, start the jigsaw and move the saw slowly forward along the cutting line. 2. Ensure the saw blade is not striking on anything below the workpiece and that the power cable is well away from the moving blade before starting the saw.
- Page 11 ADJUSTING THE SOLE-PLATE The sole-plate is adjustable so that bevels of up to 45° may be cut. Loosen the two socket head screws under the sole-plate before adjusting it to the desired angle and re-tightening the screws. Socket head screws However, if absolute accuracy is required you should always check the angle with a protractor whilst carefully tightening the securing screws.
-
Page 12: Maintenance
• Refer to your CLARKE dealer if internal maintenance is required. • Only use the replacement blades specified for this product (consult your CLARKE dealer). -
Page 13: Fault Finding
FAULT FINDING l l i . y l y f i e i l y l l f i t . y l Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Parts List And Diagram
PARTS DIGRAM Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 15 PARTS LIST & Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 16: Consumable Parts
SPECIFICATION Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 17: Vibration Emissions
‘K’, which represents the uncertainty factor, i.e. a value in excess of ‘a’, to which the tool could vibrate under normal conditions. These values appear in the specification panel below. MODEL No: CJS380 DESCRIPTION: JIGSAW Declared vibration emission value in accordance... - Page 18 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
-
Page 19: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
