Camera description

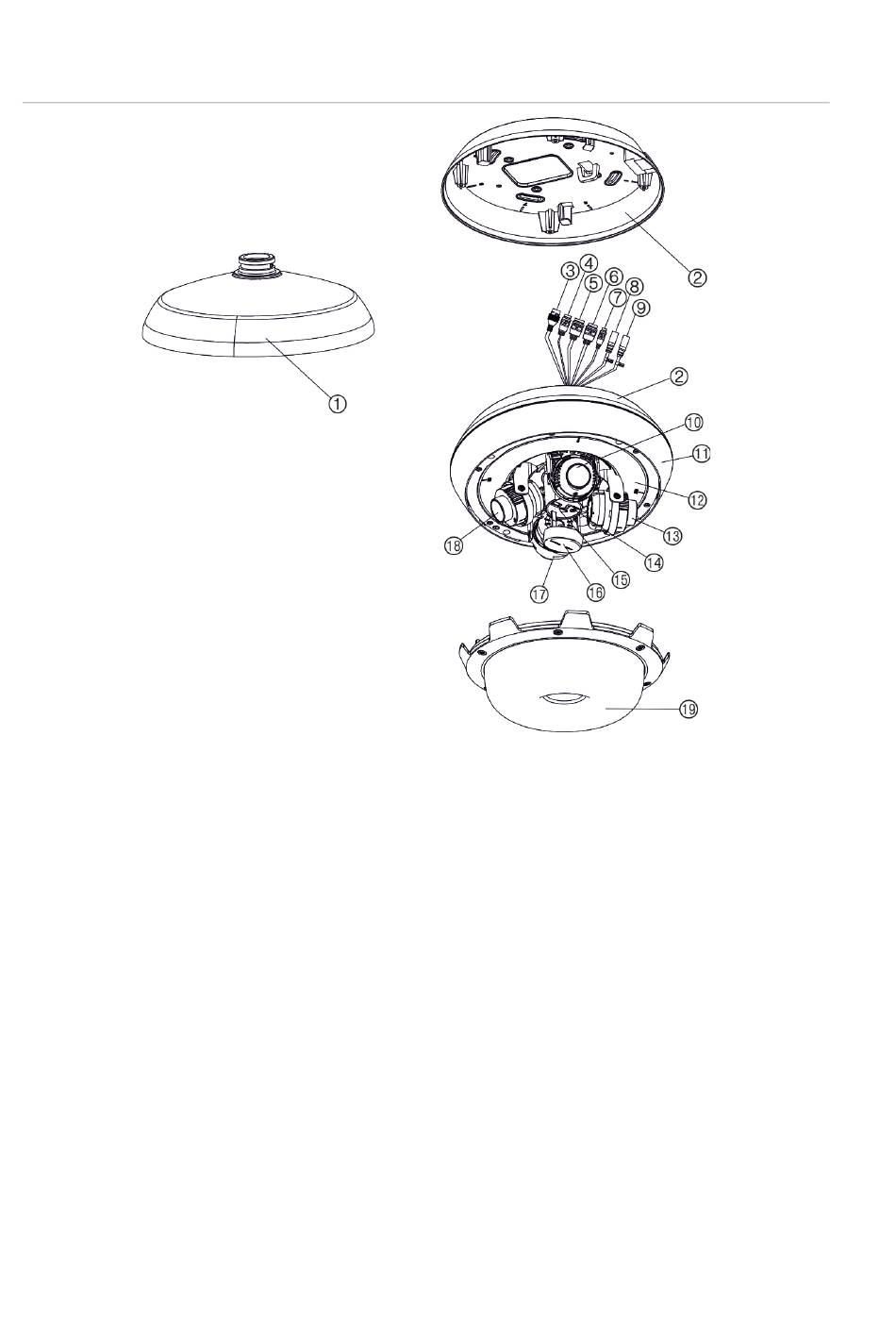

Figure 1: Multi-imager camera
1. Cup base
2. Camera base
3. Hi-PoE and network port
4. Power, 12 VDC
5. Alarm input & output 1
6. Alarm input & output 2
7. RS-485 port
8. Audio out
9. Audio in
10. Lens
6
11. IR transparent cover
12. Camera positioning tray
13. Lens
14. Reset button
15. SD card slot
16. Access cover for SD card slot and
reset button
17. Lens
18. Lens
19. Bubble assembly
