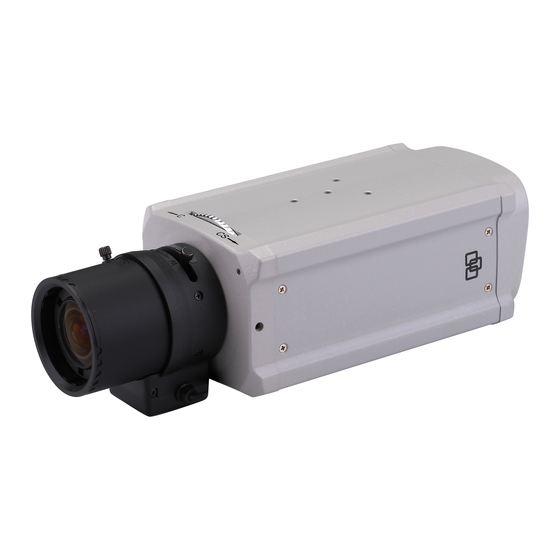

- Page 1 UltraView UVC-6130-1 WDR Box Camera User Manual P/N 1072547C • ISS 27JUL12...
- Page 2 Copyright © 2012 UTC Fire & Security. All rights reserved. Trademarks and The UltraView and Interlogix names and logo are trademarks of patents UTC Fire & Security. Other trade names used in this document may be trademarks or registered trademarks of the manufacturers or vendors of the respective products.
-
Page 3: Table Of Contents
Set the privacy mask area 15 Set motion detection 16 Display the synchronization mode 16 Set the camera ID 17 Select the language 17 Reset camera settings 17 Save changes 18 Specifications 18 Dimensions 19 Menu Map 20 UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 4: Product Overview
Always use a 12 VDC or 24 VAC UL listed Class 2 power supply to power the camera. • Do not use the camera over the temperature range specifications: -10°C to +50°C (14°F to 122°F) UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 5: Product Description
5. 12 VDC / 24 VAC dual power 3. OSD control pad Figure 2: Camera UVC-6130-1-P2 1. Video output 4. D/N trigger pin 2. Audio output 5. AC96V/AC240 universal power 3. OSD control pad UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 6: Osd Control Pad
Moves the cursor downward to select an item. Enter Press the center of the control pad to display the Main menu. If the selected item has its own menu, press the pad to enter a submenu. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 7: Installation
Attach the lens Refer to the instructions that came with the lens you purchased for complete installation instructions of that lens. Note: For optimal performance, use an auto iris lens. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 8: Connect The Power Cable
4. Supply power to the unit by plugging the power supply into a proper source. Note: The power LED illuminates to show that the camera is receiving power. If it does not illuminate, check the terminal block connections and the power source. UltraView UVC-6130-1 WDR Box Camera User Manual... - Page 9 For UVC-6130-1-P2: Connect the power cable of a high voltage camera to either a 230 VAC or a 120 VAC power supply outlet. UltraView UVC-6130-1 WDR Box Camera User Manual...
-
Page 10: Programming
Defines the camera ID displayed on-screen. Language Defines the language of the OSD. Camera Reset Resets the camera to factory default settings. Exit & save Exits the menu and returns to live mode. Saves changes made. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 11: Select The Lens Type
Speed: When the mode is set to Auto, select the convergence speed of the iris between 0 and 255. Set shutter/AGC In the Setup menu, go to Shutter/AGC and select the required light control option: Manual, Auto or Traffic. Auto is default. The selected menu appears: UltraView UVC-6130-1 WDR Box Camera User Manual... - Page 12 Low luminance: Sets the lux level for low light conditions Mode: Only AGC available. Brightness: Select the brightness level to X0.25, X0.50, X0.75 or X1. AGC Max: Adjust the maximum automatic gain control level. The value can range from 0 to 7. UltraView UVC-6130-1 WDR Box Camera User Manual...
-
Page 13: Adjust The Picture Characteristics
In the Setup menu, go to White Bal and select the options to be modified: UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 14: Set Wdr
In the Setup menu, go to and select the options to be modified in the menu. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 15: Set Image Noise Reduction
It prevents the object in the center from appearing too dark. The Clip-level option allows you to black out the bright vehicle headlights in the image. In the Setup menu, go to HLC/BLC and select the options to be modified. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 16: Set Day/Night Mode
Day to Night mode. Lower (Higher) value makes the camera switched from Day to Night at lower (higher) illumination Night→Day: Set the threshold level on how light it should be before switching from Night to Day mode. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 17: Set E-Zoom
Use this function to mask out selected areas of the image. Up to 15 privacy mask areas can be configured, each by size and location on-screen. Area Sel: Up to 15 privacy masks can be set. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 18: Set Motion Detection
Display the synchronization mode In the second Setup menu, go to Sync to open the synchronization menu. Use the Sync menu to display the current synchronization mode. Only one option is available: Internal. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 19: Set The Camera Id
English and Japanese. Reset camera settings Use this menu to reset the camera settings to factory default. In the Setup menu, go to Camera Reset. Press Enter to reset all camera values to factory default. UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 20: Save Changes
96 to 240 VAC Current 300 mA Max. 50 mA Power consumption Max. 3.6 W Max. 4.8 W Operating temperature -10 to +50 °C (14 to 122 °F) Weight 390 g (0.85 lbs) UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 21: Specifications
Power consumption Max. 3.6 W Max. 4.8 W Operating temperature -10 to +50 °C (14 to 122 °F) Weight 390 g (0.85 lbs) Dimensions (Units of measurement = mm) Side view: Front view UltraView UVC-6130-1 WDR Box Camera User Manual... -
Page 22: Menu Map
Menu Map UltraView UVC-6130-1 WDR Box Camera User Manual...
