Forward Facing Camera Installation
Manual
1038137 D January 2013
© 2013 UTC Fire & Security Americas Corporation, Inc.
Content
Wiring 3
Introduction
This is the Installation Manual to the MobileView (TM)
Forward Facing Camera. Read these instructions before
installing or operating this product.
Note:
A qualified service person, complying with all
applicable codes, should perform all required hardware
installation.
This manual provides installation and operation
information. To use this document, you must have the
following minimum qualification:
•
A basic knowledge of CCTV systems and
components; and
•
A basic knowledge of electrical wiring and low-
voltage electrical hookups.
Installation
You can mount the camera from above or from below
(inverted). Some mounting surface might need to be
reinforced to minimize the vibration of the camera. In
these installations, place a tapping plate behind the
mounting surface.
1
Caution:
Do not adjust the setscrew (Figure 1). It is for
factory use only.

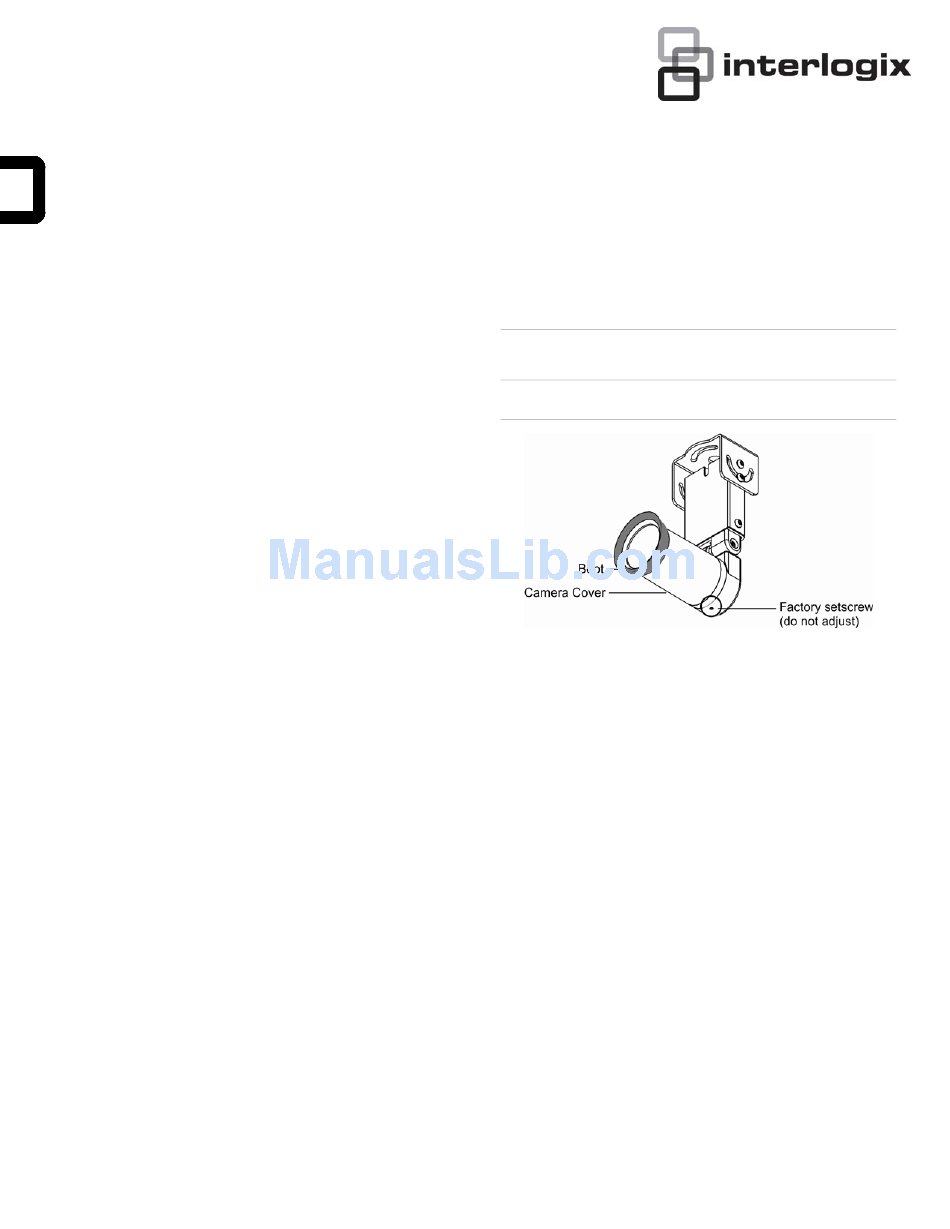

Figure 1: Factory setscrew and cover boot
To mount the camera, do the following:
1. Push the rubber boot onto the camera cover (Figure
1).
2. Position the unit on the mounting surface so that the
lens points toward the area you want to view.
Note:
Consider the camera's (with the boot
attached) proximity to the vehicle's windshield, close
enough to prevent glare and far enough away to not
vibrate the windshield (about 3/4 inch
recommended).
3. Use the provided template (Figure 12 on page 4) to
mark the positions of the mounting and cable entry
holes on the mounting surface.
4. While following your local codes, cut the cable entry
hole and drill and prepare the mounting holes for the
type of surface and fasteners (not provided) being
used.
Note:
We recommend attaching rivnuts and running
10/32 screws to mount the camera.
5. If you are hanging the unit from above, attach the
unit with fasteners (not provided) that are
Forward Facing Camera Installation Manual
Advertisement
Table of Contents
Related Manuals for Interlogix Camera
Summary of Contents for Interlogix Camera
-
Page 1: Table Of Contents
Mounting bracket template 5 To mount the camera, do the following: Introduction 1. Push the rubber boot onto the camera cover (Figure This is the Installation Manual to the MobileView (TM) Forward Facing Camera. Read these instructions before 2. Position the unit on the mounting surface so that the installing or operating this product. - Page 2 Figure 5: Inverting the camera Mounting the camera from below To mount the camera from below so that the camera is inverted, do the following: 1. Attach the unit with fasteners (not provided) that are appropriate for the mounting surface (Figure 3).
-
Page 3: Wiring
9. Insert the lower arm into the upper arm and secure 3. Separate the lower and upper camera arms (Figure the camera arm with the bracket screws (Figure 6 on page 3). Secure the screws with blue Loctite. 4. Remove the connection box screws to remove the connection box cover (Figure 7). -
Page 4: Focusing The Camera
9. Reattach the camera cover. 10. Make final adjustments to the angle of the camera The camera has a varifocal lens (2.9 to 8 mm) and can assembly and secure all screws with blue Locite. also be adjusted for focus. To focus the camera, do the See Adjusting the camera angle. -
Page 5: Contact Information
561-998-6114 latam@interlogix.com Web site: www.interlogix.com/customer-support EMEA: See specific Country listings at: www.utcfssecurityproducts.eu/support Mounting bracket template Use the mounting bracket template to mark the positions of the mounting and cable entry holes on the mounting surface. Forward Facing Camera Installation Manual...
