Summary of Contents for Maquet SERVO-air

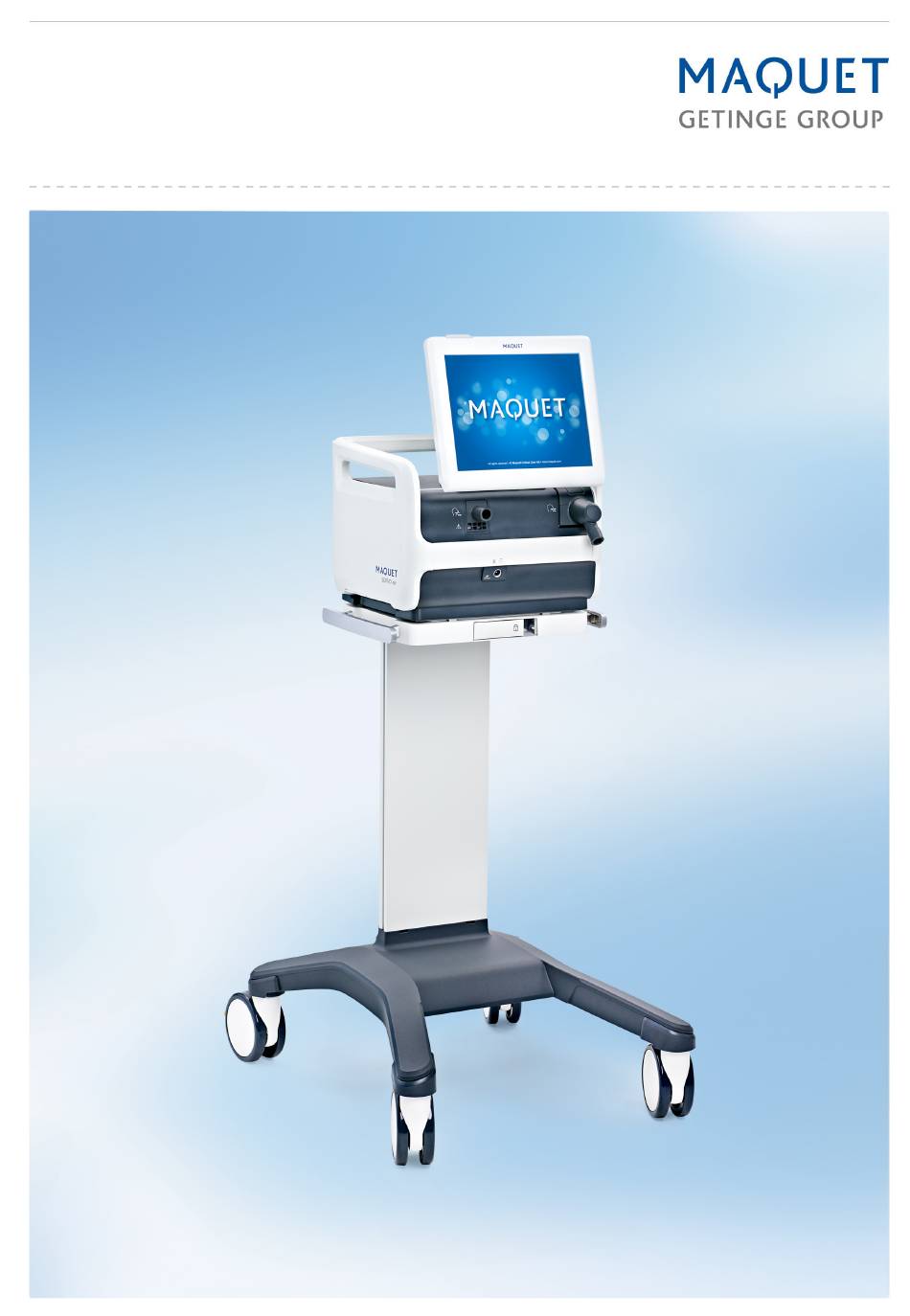

- Page 1 User's Manual SERVO-air Ventilator System Cleaning and Maintenance...
- Page 3 Table of contents Table of contents Introduction Patient unit and user interface Expiratory cassette cell (maintenance) Inspiratory channel (maintenance) Aerogen Pro nebulizer Accessories Recommended intervals and disinfectants SERVO-air Ventilator System, User's Manual Infologic 1.18...
- Page 4 | 1 | Introduction 1 Introduction Table of contents Introduction General information Safety guidelines Symbols SERVO-air Ventilator System, User's Manual...
- Page 5 1.1 Introduction 1.3 Safety guidelines Unless otherwise stated, the information in WARNING! Indicates critical information this User's Manual is valid for the SERVO-air about a potential serious outcome to the ventilator system. patient or the user. Here you will find the information needed to...
- Page 6 Normal operation during one year is estimated • Maquet recommends the use of Servo to correspond to approximately 5000 Duo Guard bacterial filter or equivalent hours of operation. The current operating...
- Page 7 Tilt the cassette upwards and remove. - disposable airway adapter - Aerogen Solo nebulizer Important: After removing the expiratory • Remove the expiratory cassette. cassette, do not pour any fluid into the expiratory cassette compartment. Avoid contact with electrical connectors. SERVO-air Ventilator System, User's Manual...
- Page 8 • Note on a log sheet that a routine cleaning has been performed. Refer to hospital routines. SERVO-air Ventilator System, User's Manual...
- Page 9 • Replace dust filter. 2.4.2 Check air inlet filter The air inlet filter must be exchanged once a year during preventive maintenance or more often when necessary. SERVO-air Ventilator System, User's Manual...
- Page 10 | 2 | Patient unit and user interface • Close the lid. SERVO-air Ventilator System, User's Manual...
- Page 11 (<35°C/95°F) can remove particles and washer-disinfector should not exceed reduces the risk of cross-contamination 1.5 bar. between patients. • The maximum water flow should not exceed 10 l/min. • The water must have free passage through the cassette. SERVO-air Ventilator System, User's Manual...
- Page 12 Rinse the parts thoroughly in water to remove all traces of disinfectant. Let the water flow through the parts. • Carefully shake and tilt the cassette, turn upside down and repeat at least 5-7 times. SERVO-air Ventilator System, User's Manual...
- Page 13 12-24 hours, depending on surrounding conditions. Notes: • Never dry the cassette by applying high-pressure air as the internal tubing may be damaged. • Drying may not be necessary if the washer-disinfector has a drying phase. SERVO-air Ventilator System, User's Manual...
- Page 14 Let the water flow through the parts. 3.4.3 Drying before steam autoclaving Before placing the expiratory cassette in a steam autoclave, make sure that no water remains inside the cassette. Refer to section Drying alternatives on page 13. SERVO-air Ventilator System, User's Manual...
- Page 15 • Disconnect the ventilator system from the • Unfasten and turn out the locking latch. power and gas supply. • Disconnect the O cell connector. SERVO-air Ventilator System, User's Manual...
- Page 16 Put the lower part of the front cover in position. • Press the upper part of the front cover into position. • Connect the O cell connector. • Perform a pre-use check. • Put the O cell in position. SERVO-air Ventilator System, User's Manual...
- Page 17 (<35°C/95°F). page 15. • Let the water flow through the parts. 5.2.1 Remove inspiratory channel and tube Important: Immediate rinsing in water (<35°C/95°F) can remove particles and reduces the risk of cross-contamination between patients. SERVO-air Ventilator System, User's Manual...
- Page 18 Clean the inspiratory channel and tube • Put a new bacterial filter in position and the same way as the expiratory cassette. connect the filter to the tube. • Refer to section Disinfection on page 11. SERVO-air Ventilator System, User's Manual...
- Page 19 Refer to section Assembling on page 16. • Note on a log sheet that an extended cleaning of the inspiratory channel has been performed. • Insert the expiratory cassette. • Perform a pre-use check. Refer to the ventilator system User's Manual. SERVO-air Ventilator System, User's Manual...
- Page 20 (70%). - Rinse using thermal disinfection cycle at 93 °C (199.4 °F) for 10 minutes. • Mains water and without the use of a detergent. Load the components in the washer-disinfector. SERVO-air Ventilator System, User's Manual...
- Page 21 24. Only the Aerogen Pro nebulizer unit, T piece Important: Follow the disinfectant and neonate adapters can be autoclaved. manufacturer’s recommendations and Refer to section Recommended intervals and instructions. disinfectants on page 24. SERVO-air Ventilator System, User's Manual...
- Page 22 STERRAD® 100S Sterilization System for specific instructions regarding its proper operation. 6.5 Assembling Assemble the nebulizer. Perform a function test of the Aerogen Pro nebulizer after the cleaning. Refer to the ventilator system User's Manual. SERVO-air Ventilator System, User's Manual...
- Page 23 Shelf base Refer to the cleaning routines in the operating • Hook and Y piece holder manual for the Fisher & Paykel Humidifier. • Cable holder Refer to section Recommended intervals and disinfectants on page 24. SERVO-air Ventilator System, User's Manual...
- Page 24 100 autoclaving cycles with 3 minutes sterilization time at 134ºC (273ºF). • 30 autoclaving cycles with 18 minutes sterilization time at 134ºC (273ºF). cell cell Replace the O cell when it is requested by the ventilator system. SERVO-air Ventilator System, User's Manual...
- Page 25 134°C (270°F - 275°F) for 20 minutes with drying cycle (sometimes referred to as a “Prion cycle”). Note: This cycle may cause some areas of the nebulizer to become discolored. This does not affect the performance of the nebulizer. SERVO-air Ventilator System, User's Manual...
- Page 26 Wipe the surface with a soft cloth moistened in soap and water or in disinfectant. In case of more contaminated surfaces, use ethyl alcohol (70%) or isopropyl alcohol (70%) together with lint free cleaning wipes. SERVO-air Ventilator System, User's Manual...
- Page 28 Manufacturer: Maquet Critical Care AB Röntgenvägen 2 171 54 Solna, Sweden Phone: +46 (0) 10 335 73 00 www.maquet.com For local contact: Please visit our website www.maquet.com Getinge Group is a leading global provider of innovative solutions for operating rooms, intensive-care units, hospital wards, sterilization departments, elderly care and for life science companies and institutions.
