Summary of Contents for Car Solutions QROIX

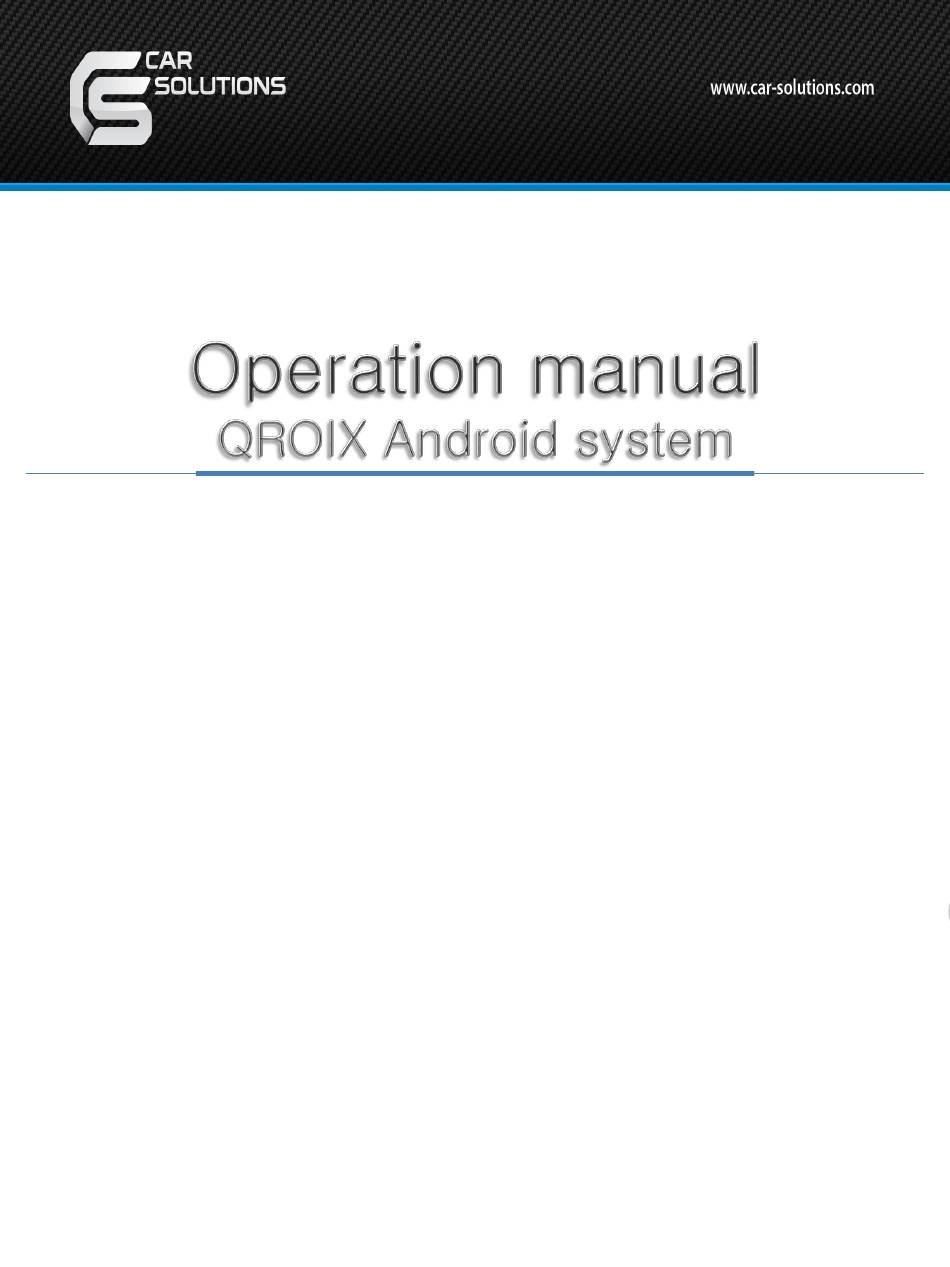

  • Page 1 car-solutions.com support@car-solutions.com...

  • Page 2: Warning / Precautions

    Warning / Precautions! Installation must be done at designated QROI A/S center. Do not dismantle, modify and install the product in the unauthorized places. In case of product Warning failure while installing the product in the unauthorized places warranty will be void ...
  • Page 3 1. Features • Android 8.1 (OREO) •Powerful RAM and Internal Storage spec (RAM 4GB LPDDR3 & 32GB eMMC) • Powerful CPU (ARM Cortex-A72 + Cortex-A53@2.0GHz (HEXA CORE) ARM Mali-T860 (QUAD CORE) ) • Allows installing and updating various application via Android Play Store •...

  • Page 4: Specification

    2. Specification CATEGORY SPECIFICATION OS Version 8.1 (OREO) ARM Cortex-A72 + Cortex-A53@2.0GHz (HEXA CORE) ARM Mali-T860 (QUAD CORE) - for GPU 4GB LPDDR3 INTERNAL STORAGE 32 GB eMMC Memory EXTERNAL microSD slot (MAX 128GB) STORAGE WI-FI 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) Internally on board with Antenna BLUETOOTH 4.0 (Internally on board with Antenna) Network...

  • Page 5: How To Use

    3. How to use 3.1 Main page ※ When QROIX is turned on, the main page is displayed as below ① Status bar Dragging down the status bar to view the information in details ② Main icons QROIX provides four main icons on the first page.
  • Page 6 3. How to use 3.2 Change shortcut icons 1. Click the app with long press to make the shortcut on the main page. 2. Select the place to put in between GPS and MULTIMEDIA. car-solutions.com support@car-solutions.com...

  • Page 7: Bottom Menu Bar

    3. How to use 3.3 Bottom Menu bar ※ Menu bar helps to use QROI in a easier way. (Multi key): Find, open and close recent apps •Once the button is pressed, the recent apps will be displayed as shown on the left •...
  • Page 8 3. How to use 3.3 Bottom Menu bar ※ Menu bar helps to use QROI in a easier way. : On maps, these are the functions for zoom in and zoom out : Going to WiFi setting directly : Going to Android setting directly car-solutions.com support@car-solutions.com...
  • Page 9 3. How to use 3.4. How to use PIP function Please tap this multi-key icon 2. Please select and hold the app which you want to make PIP. 3. On the left side, the message shows that ‘Drag here to use split screen’. car-solutions.com support@car-solutions.com...
  • Page 10 3. How to use 3.4. How to use PIP function 4. Please drag the app to the left side. 5. Then PIP screen will be operated without any problems. car-solutions.com support@car-solutions.com...
  • Page 11 4. Settings 4.1 QROI SETTINGS Device Settings *Please tap Device Setting on App list. *The Passwords are 0603. *Can check AP and FW versions. *Can do FW Update with plugging USB memory stick *AP Update is automatically activated by plugging USB memory stick.
  • Page 12 4. Settings 4.1 QROI SETTINGS Device Settings * LVDS Timing Setting : adjustableLVDS Picture : Please tap the LVDS button. Then below picture shows on the screen. Move the position along with the arrows. Reset Save & Exit : Saving the changed setting values and going out of LVDS setting page.
  • Page 13 4. Settings 4.1 QROI SETTINGS Device Settings *Cooling Fan Mode : Please tap Mode select. car-solutions.com support@car-solutions.com...
  • Page 14 4. Settings 4.1 QROI SETTINGS Device Settings *Interface Setting: Select Interface Touch Protocol After selection, please tap Save RESET button, in order to save the chosen Interface protocol. car-solutions.com support@car-solutions.com...
  • Page 15 4. Settings 4.1 QROI SETTINGS Device Settings *SPK BOOST: When Tap it, there are two options. When SPK BOOST Enable is selected, Speaker volume Gain will be increased. car-solutions.com support@car-solutions.com...
  • Page 16 4. Settings 4.2 Touch Calibration App list ▶ Touch Calibration •Touch Calibration. •Press each target position by a finger. •Completed. car-solutions.com support@car-solutions.com...

  • Page 17: System Info

    4. Settings 4.4 System Info Settings ▶ System ▶ About QROIX *Can check the Android Version, Build Number and AP Version, as well as Released date car-solutions.com support@car-solutions.com...
  • Page 18 4. Settings 4.5 System Reset Settings ▶ System ▶ Reset Options car-solutions.com support@car-solutions.com...
  • Page 19 1. Please copy and paste FW.QVL on USB memory stick root. 2. Please connect the USB memory stick to QROIX USB port. (Please don’t connect it to OPTION port.) 3. Please go to Device settings. 4. Then please click FW UPDATE button on the menu.
  • Page 20 1. Please copy and paste update.zip file on USB memory stick root. 2. Then please insert it to QROIX USB port. (Please don’t use OPTION Port.) 3. After that, please turn on QROIX again. 4. Automatically, update process is activated.
