  • Page 2: Warning / Precautions

    Warning / Precautions!  Do not modify, dismantle or unintended operation this system outside Q-ROI After Sales. Damage occurred by unintended operation may cause Q- Warning ROI After Sales service void.  Always wear seatbelt. When the vehicle is suddenly stop can cause injury.

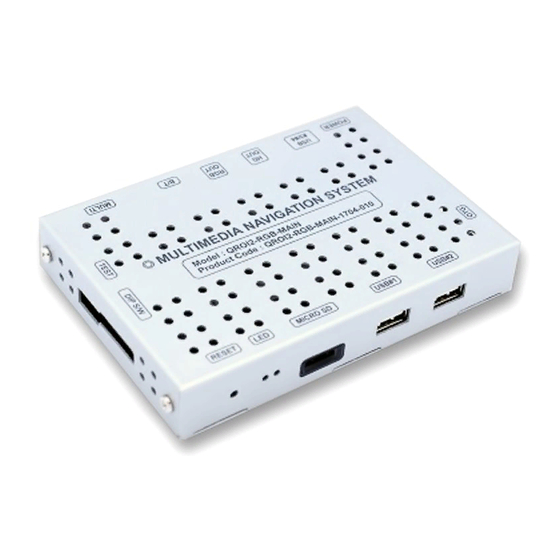

  • Page 3 1. Feature • Android Operating system 4.2.2 (Jelly Bean) • Powerful CPU (1GHz Cortex A9 Dual-Core CPU ) • Support Android Play-Store (Various applications supported) • High quality video Display (800 x 480, 480 x 234, Composite(CVBS)) • Various Multimedia ports (2*Video Input, 1*MIC, 1*SPK) •...

  • Page 4: General Spec

    2. General Spec Android 4.2.2 (Jelly Bean) Telechips TCC8930 (1GHz Cortex A9 DualCore) Display OEM LCD Internal Memory DDR3 1GB RAM + 8GB eMMC External Memory SDHC Slot Support (up to 64GB) Video Input x 2, Mic x 1, Function External Speaker x 1 (mono), External Audio Out x 1(Car Aux), RGB (thru Sub-Board)

  • Page 5: System Diagram

    3. System Diagram eMMC Flash Memory DDR3 USB Devices - USB Memory - Hard Disk Touch Touch - Wifi Dongle Screen Screen - 3G /LTE Dongle Controll - Other USB Devices Application Processor (Dual Core 1GHz) Display Interface Output Image - LCD Monitor Setting Switch...
  • Page 6 4. Components Microphone cable * 1ea USB cable * 2ea RGB Out * 1ea TOUCH IN cable * 1ea Power(Multi) * 1ea (MICPHO0001) HRGBCA0016 HTOUCH0022 (HARETC 0099) (HARETC0078 MODE switch cable* 1ea Speaker * 1ea GPS Antenna * 1ea SD 연장 케이블 * 1ea (HARETC0001) (SPEAKE0001) (GPSANT0006)
  • Page 7 5. System Diagram Speaker Toggle S/W Touch Screen POWER CABLE GPS 5V GPS-RX GPS-TX Toggle GND Toggle N. C N. C AUX OUT(L) AUX OUT(L)GND AUX OUT(R)GND AUX OUT(R) RGB IN GND(-) SPK-L(+) NAVI-R NAVI-R GND V-OUT1 V-OUT1 GND V-OUT2 GND V-OUT 2 V-IN 1 GND V-IN 1...
  • Page 8 5. System Diagram Connect to QHI Interface touch Connect one wire into the most right pin hole of RGB Out cable. It’s Q-ROI RGB Uart wire. Connect the Uart cable* to CAP T/S Out from QHI Interface. *The pink wire among...

  • Page 9: Home Screen

    6. How to use (Q-Launcher) 6.1 Home Screen ※ When Q-ROI system booted up, this screen below appears. ① Status alter bar ② Q-ROI Setting ③ Main Icon : In the main screen of Q-Launcher, there are mainly 6 Icons (applications) that driver will be used to use while driving, user can change preferred applications for these icons.)
  • Page 10 6. How to use (Q-Launcher) ④ Navigation Bar : (Recent App) : User can see running applications and manage them. : (Home Key): Back to Home screen, (Long press and dragging to right) Google Now Launching. : Back : Sound setting ⑤...
  • Page 11 6. How to use (Q-Launcher) 6.2 Main Apps change 1. Long press your desired app in app drawer 2. App change window ① Selected app name appears at the top of window. ② Choose one icon of main icon that your target app wants to be linked with.
  • Page 12 6. How to use (Q-Launcher) 6.3 Side Bar Usage Navigation Bar : User can see running applications and manage them. • Once user press this button, all running apps appear. • User can choose an app to switch • User can remove apps by dragging up : Short Press –...
  • Page 13 6. How to use (Q-Launcher) (Back Key) : Return to previous screen 4. : : Q-ROI Volume control and On/Off setting of Q-ROI external speaker • Once press this button, Sound window pops • User can set on and off of external Speaker...
  • Page 14 7. Setting 7.1 Wi-Fi ON / OFF ※ Q-ROI gets Internet via Wi-Fi dongle from Wi-Fi AP or Mobile Hot Spot. App drawer ▶ setting ▶ Wi-Fi Or simply press Setting button in the main screen ▶ Wi-Fi ① Wi-Fi ON/OFF ②...
  • Page 15 7. Setting 7.2 Display App drawer ▶ setting ▶ Display Or simply press Setting button in the main screen ▶ Display • Auto-rotate screen : the screen automatically updates when you rotate the phone ☞ Tap Auto rotate screen to enable or disable the setting •Application Rotation : user can choose displayed application rotation as Landscape, Landscape(Full Screen)

  • Page 16: Touch Calibration

    7. Setting 7.3 Touch Calibration App drawer ▶ setting ▶ QROi Settings ▶ Touch Calibration Long press toggle switch for 5seconds. •Touch Calibration. •Press each target position by a finger nail. •Completed.
  • Page 17 7. Setting 7.4 RGB App drawer ▶ setting ▶ Q-ROi Settings ▶ Display setting ☞ Please make sure to select save and exit after you set up color or position or size.

  • Page 18: Application Management

    7. Setting 7.5 Application Management App drawer ▶ setting ▶ Apps Or simply press Setting button in the main screen ▶ Apps •User can manage (Force stop, Uninstall) applications.

  • Page 19: System Update

    7. Setting 7.6 System update Apps ▶ Settings ▶ About QROI Or Press ▶ About QROI •Select ‘About QROI’. •Select ‘System update’. • Select ‘Install system update’. (update.zip)
  • Page 20 7. Setting 7.6 System update •Select where update file is (Default : From External SD Card) •Select ‘Install now’ •Update will be started after power off.
  • Page 21 7. Setting 7.6 System update •Check the version of Kernel.

  • Page 22: Dip Switch

    ON : Low resolution OFF : QDIS HDMI Interface touch protocol(LR15) Touch ON : FOSP Touch protocol OFF : Q-ROI RGB Timing Timing ON : No use ※ Please make sure to disconnect the power cable of the interface and reconnect the power cable again to apply the dip switch setting whenever changing DIP switch.

  • Page 23: Quality Warranty

    8. Quality Warranty This product has been tested and have passed under our strict quality control. If the failure occurred due to the carelessness of workmanship within one year after the purchase, we are responsible to repair free of charge. Please bring this warranty to dealer whom you purchased this product from at the repair time.
  • Page 24 •Revision History Date History Page - Dip switch setting 21page 2016.03.08 - QHI LR Uart touch connection added 8page...
