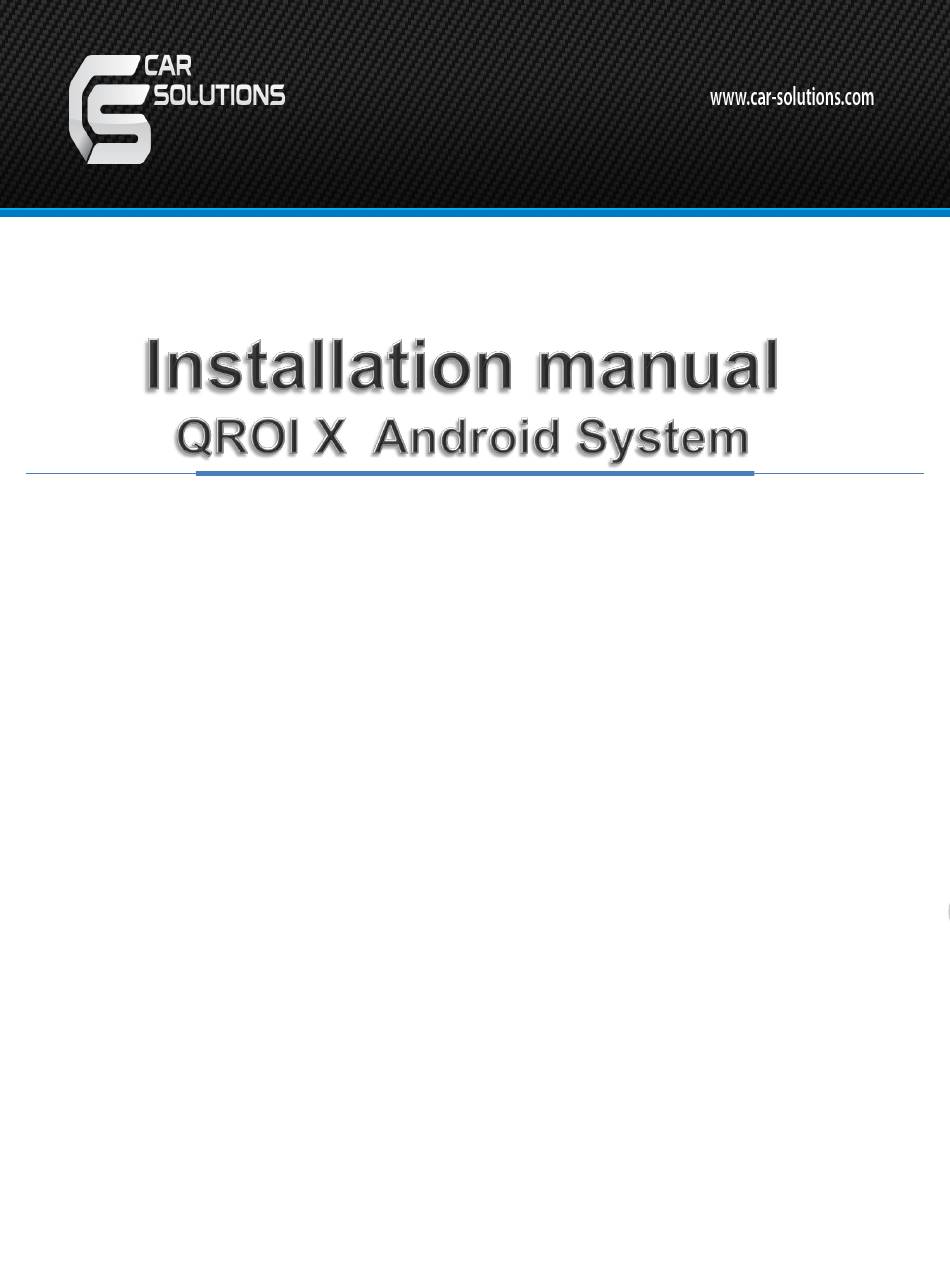

- Page 1 car-solutions.com support@car-solutions.com...
-
Page 2: Warning / Precautions
Warning / Precautions! Installation must be done at designated QROI A/S center. Do not dismantle, modify and install the product in the unauthorized places. In case of product Warning failure while installing the product in the unauthorized places warranty will be void ... - Page 3 1. Features • Android 8.1 (OREO) •Powerful RAM and Internal Storage spec (RAM 4GB LPDDR3 & 32GB eMMC) • Powerful CPU (ARM Cortex-A72 + Cortex-A53@2.0GHz (HEXA CORE) ARM Mali-T860 (QUAD CORE) ) • Allows installing and updating various application via Android Play Store •...
-
Page 4: Product Dimensions
2. Product Dimensions 28mm car-solutions.com support@car-solutions.com... -
Page 5: Specification
3. Specification CATEGORY SPECIFICATION OS Version 8.1 (OREO) ARM Cortex-A72 + Cortex-A53@2.0GHz (HEXA CORE) ARM Mali-T860 (QUAD CORE) - for GPU 4GB LPDDR3 INTERNAL STORAGE 32 GB eMMC Memory EXTERNAL STORAGE microSD slot (MAX 128GB) 802.11 a/b/g/n/ac (2.4 GHz / 5 GHz) Internally on board with Antenn WI-FI BLUETOOTH 4.0 (Internally on board with Antenna) - Page 6 4. Components POWER * 1ea MULTI * 1ea (HPOWER0245) (HAERTC0321) Mainboard * 1ea GPS * 1ea HDMI Cable * 1ea (HAGPS0013) (HARETC0067) USB extension Resistive touch * 1ea MIC * 1ea SPKEAR * 1ea cable * 1ea (MICPHOC0003) (HTOUCH0022) (SPEAKER007) (HARETC0078) Capacitive Touch * 1ea Touch Board * 1ea...
-
Page 7: Product Exterior
5. Product Exterior Dipswitch settings Power cable Multi cable Capacitive Resistive touch Cable touch Cable Option GPS cable Micro SD card (option) car-solutions.com support@car-solutions.com... -
Page 8: Dip Switch
6. Dip switch *Resolution type selection 1280 x 720 Resolution 1600 x 600 Resolution (For Wide monitor) *Touch Type Selection UART & Cap Touch Use Resistive Touch Use *Cap Touch Selection Benz 8inch and 8.4inch Cap touch panel (XWC2800) Benz 12.1inch Cap touch panel Universal 7inch Cap touch panel (XWC2821) Audi A3, Q2 7inch Cap... - Page 9 6. Dip switch *Cap Touch Selection Universal 6.5inch Cap Touch panel (XWC1873) Lexus NX 7inch Cap touch panel (XWC3941) Audi A4, A5, Q7 8inch Cap touch panel (XWC3536) Audi A4, A5, Q7, Q2, A3 7inch Cap touch panel (XWC3534- Q2 & A3, XWC3535) Benz 7inch Cap Touch Panel (XWC2433) Benz A, B Class 7inch Cap Touch Panel...
-
Page 10: Installation Diagram
7. Installation diagram USB extension cable LVDS IN Interface 12V GND ACC GPS connection car-solutions.com support@car-solutions.com... - Page 11 8.1 Capacitive touch installation *Capacitive touch cable is included in Cap touch Panel set. (option) Capacitive touch Panel Capacitive touch cable C-Touch B/D FPC connection Dip Switch No.4 should be Up. PIN No. 1 : VCC3V3_SYS PIN No. 2: CAP Touch Reset ⑦...
- Page 12 8.2 Resistive touch installation Interface Dip Switch No.4 should be Down. PIN No. 1 :X+ PIN No. 2: Y+ ④ ① PIN No. 3: X- PIN No. 4: Y- PIN MAP car-solutions.com support@car-solutions.com...
- Page 13 8.3 Uart touch installation *When HDMI OUT uses, Uart Touch wire should be connected to Video interface. *When LVDS OUT uses, no need to connect Uart touch wire. Interface UART Cable GND (Black) TX (White) RX (Red) car-solutions.com support@car-solutions.com...
-
Page 14: Installation
installation LVDS to RGB Converter *LVDS TO RGB Converter is Option. *This Converter is needed to connect to only RGB-In Interface LVDS TO RGB Converter RGB Cable tagged HRGCA0024 QDIS RGB Interface *LVDS TO RGB Converter Dip No.2 Should be DOWN. car-solutions.com support@car-solutions.com...
