- Page 2 INFORMATION PRECAUTIONS ① This product is assistive devices that help the driving safely. Do not drive by rely solely on this product. ② The rated voltage of this product is DC 12. And it requires the correct wiring connections and mounting. Please install only by a qualified technician. ③...
-
Page 3: Checking The Components

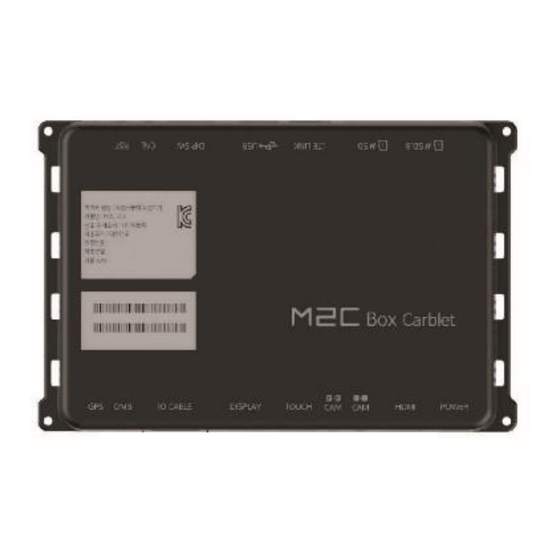

Please check the following components after opening the package. (Component images may differ from actual components.) Basic Components R-Touch Gender & POWER CABLE 4P-Touch Cable 6P-Touch Cable C-Touch Gender M2C-200 Main Body I/O Interface HDMI Cable External speaker External MIC cable External GPS Screws... -
Page 4: Installation
PRODUCT INSTALLATION NAME OF EACH PARTS DIP switch Micro SD 1 Touch calibration Micro SD 2 Reset GPS Antena Power LVDS (HDMI) 4P-Touch Rear Monitor DMB Antena (HDMI INPUT) I/O Cable DIP Switch setup Resistive touch mode. UART Touch in HDMI CABLE (LVDS) - Touch work by 19pin map in HDMI Cable. -
Page 5: Wiring Diagram
PRODUCT SETUP WIRING DIAGRAM ※ Power Cable ※ R Touch(4pin) ※ I/O interface cable ※ Network connect ※ HD-LINK connect <interface> <interface> Made by Artview smart car division... -
Page 6: Home Panel
PRODUCT LAYOUT HOME 1. SYSTEM BAR Displays the notification contents and status of the device. You can drag down to see a list of quick settings and notifications. 2. SEARCH Search the contents of a device such as a file, a function, an app, or input the contents to the Internet You can search and find the information you want. -
Page 7: Screen Layout
PRODUCT SCREEN LAYOUT ALL APPS LIST SCREEN Touch the All Apps button in the Favorites tray on the Home screen to navigate. On the All apps list screen, you can see a list of all apps installed on your device. Touch the app icon to launch the app or touch and hold it on the Home screen. - Page 8 PRODUCT SCREEN LAYOUT VOLUME Touch the volume icon to the left of the navigation bar You can see the volume control popup. The volume control pop-up resizes the current volume Or touch the mute switch to You can block. The buttons on the bottom of each output On / Off switch that can be set to Off You can block the sound to the corresponding device.
-
Page 9: Touch Setting
PRODUCT TOUCH SETTING CONFIGURATION If touch is not working well, you can calibrate touch recognition through touch settings. The touch setting menu is included in the menu "Run" → "Display". ※ Touch Sensitivity Setting If you move the touch direction differently from the Under Display Settings, touch the Touch Sensitivity menu. - Page 10 PRODUCT USING Using multi-windows Starting with Android 7.0, you can use the built-in multi-window functionality to display two different applications on the same screen You can use it. If your app is multi-windowed and your app is As multi-window is running, right-click on the running, Touch and hold the button.
- Page 11 PRODUCT USING Using voice search search The M2C Caliber has a built-in search function for Google Voice, a built-in search function, You can search for it. With the M2C Carbritt's voice recognition, you can experience more convenient smartphones in your car. (From the Home screen or from the All Apps screen), touch the Voice search icon and you will be ready to hear your voice.
- Page 12 PRODUCT USING How to use hotspot · To connect the M2C Cablet to your smartphone for wireless data communication, You need to set up hotspots. · How to set the hotspot on the smartphone you want to connect may vary slightly depending on the smartphone.
- Page 13 PRODUCT USING Firmware online download ‘M2C Carblet’ can search for and upgrade the latest firmware from online servers. Scroll down to the bottom of the Device menu, select (From the home screen or from the All Apps screen) the Information menu, touch the Settings icon Run.
-
Page 14: Specifications
PRODUCT SPECIFICATION AND CHARACTERISTIC Specifications MediaTek Cortex-A72 Super Quad-core 2GHz PowerVR GX6250 OpenGLES 3.0 Android 7.0 Nougat Operating Temperature -10℃ ~ 50℃ Wi-Fi Wi-Fi : 802.11 a/b/g/n/ac Display LVDS / HDMI (rear monitor supported) RAM/ROM LPDDR3 2GB (1GB x 2), 16GB eMMC U-Blox 8 Size 165.9 x 105.3 x 21.0 mm... - Page 15 PRODUCT M2C-200-iW Made by Artview smart car division...
