  • Page 1 HTRS230V(30) THERMOSTAT - FULL USER MANUAL...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1. Introduction ................................4 1.1 Product Compliance ..................................4 1.2 Safety Informations ..................................4 1.3 Product Overview ..................................5 2. Montage ..................................6 2.1 Package content ....................................6 2.2 Proper thermostat location ................................6 2.3 Wall mounting ....................................6 2.4 Connection description ..................................7 I A - 4 wire installation with KL08NSB wiring centre ......................8 I B - 4 wire installation with KL06 wiring centre .........................10 II - 3 wire installation with KL08NSB wiring centre ......................12 III A - work with RM-16A relay module - heating source control ..................14...

  • Page 4: Introduction

    1. Introduction 1.1 Product Compliance This product complies with the essential requirements and other relevant provisions of Directives 2014/53/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com. 1.2 Safety Informations •...

  • Page 5: Product Overview

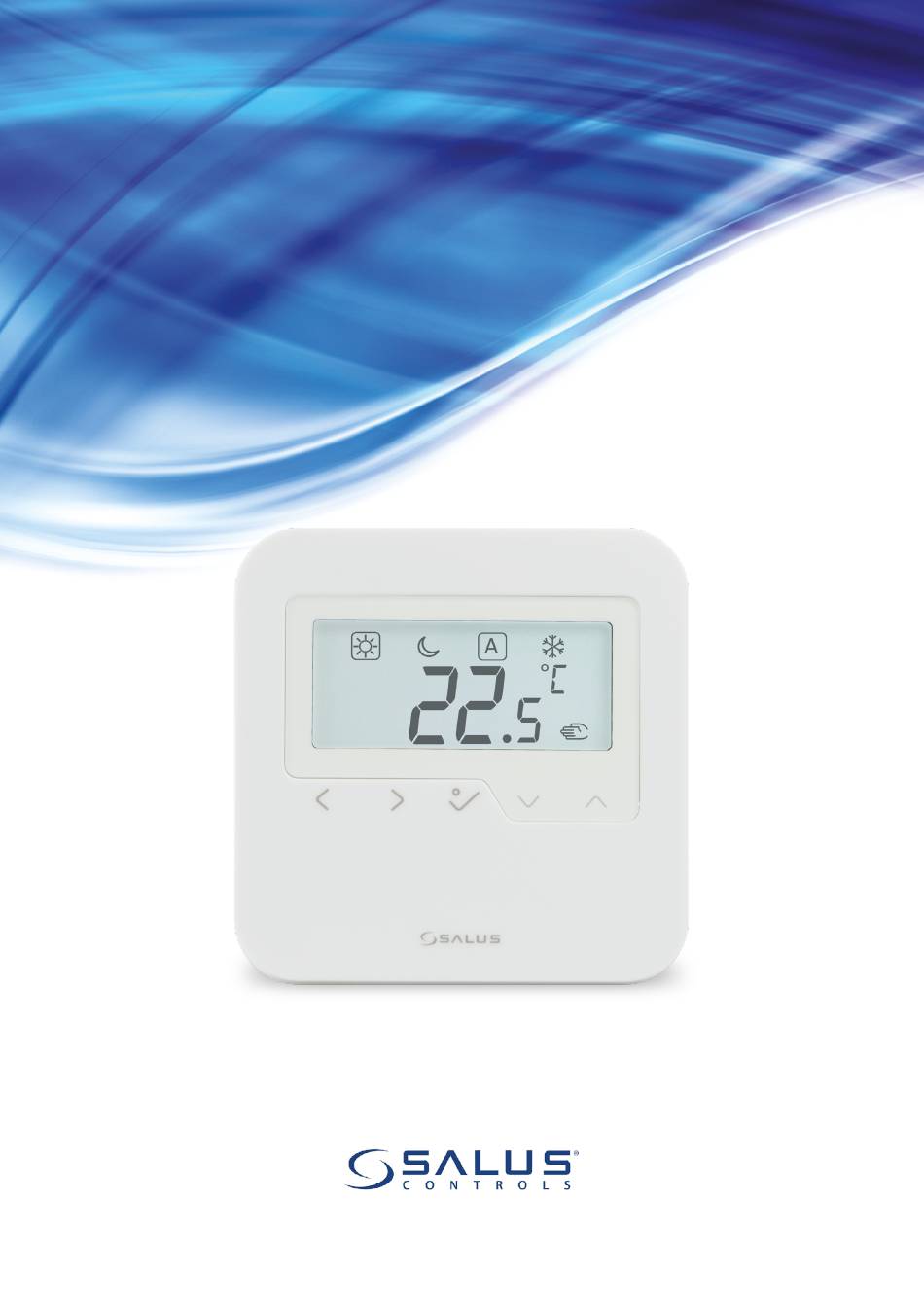

    1.3 Product Overview The HTRS230V(30) from SALUS Controls is a digital, wired and surface-mounted (or on a flush-box) non programmable room thermostat, dedicated for surface heating / cooling control, characterized by high thermal inertia. It is connected to the wiring centre. The thermostat does not have the function of creating schedules - it lowers the set temperature via wiring centre after receiving the NSB signal from the weekly thermostat.

  • Page 6: Montage

    2. Montage 2.1 Package content 1) HTRS230V(30) thermostat 2) Short instruction 3) Mounting screws 2.2 Proper thermostat location Please note: The ideal position to thermostat mounting is about 1,5m under floor level far from heating or cooling sources. Thermostat can’t be exposed to sunlight or any extreme conditions like for example draft.

  • Page 7: Connection Description

    2.4 Connection description Wejście NSB NSB input T30NC HTRS 230 HTRS Legend: Thermal actuator Symbols explanation: L, N - power supply 230V - NSB - Night temperature reduction (230V output) - SL - 230 V AC input signal CO - Switching jumper between heating and cooling (input 230V AC)

  • Page 8: I A - 4 Wire Installation With Kl08Nsb Wiring Centre

    I A - 4 wire installation with KL08NSB wiring centre HTRS230V(30) works mainly as a SLAVE thermostat (group thermostat) which means that it can be controlled by a MASTER thermostat e.g. HTRP230V(50). MASTER thermostat controls SLAVE thermostat only when SLAVE thermostat is in AUTO mode. Comfort (SUN) and economy (MOON) setpoint temperatures are set individually on each thermostat but switching between those temperature is based on time schedule taken from HTRP230(50) thermostat which works like a group controller.
  • Page 9 MASTER SLAVE e.g. e.g. VS30 RT200 RT520 HTR230V(20) HTRS230V(30) HTRP230V(50) KL08NSB 1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy 1-8 Zones 1-8 Zones 1-8 Zones Power Pump Boiler BOILER CONNECTION* max 6 max 6 max 6 T30NC T30NC T30NC...

  • Page 10: I B - 4 Wire Installation With Kl06 Wiring Centre

    I B - 4 wire installation with KL06 wiring centre MASTER SLAVE HTRS230(30) e.g. HTR230(20) e.g. HTRP230(50) Power Supply 230V AC 4 wires x 0.75 mm2 KL06 PL07 PL06 Actuators wires Pump control wires Boiler control wires 2 x 0.75 mm2 2 x 1 mm2 2 x 1 mm2 T30NC230...
  • Page 11 MASTER SLAVE e.g. e.g. HTRP230V(50) RT10 // RT20 HTRS230V(30) RT10 // RT20 RT520 RT520 HTR230V(20) KL06-M KL06-M 1 - 6 Strefy 1 - 6 Strefy 1 - 6 Strefy PL06 1 - 6 Strefy PL06 1-8 Zones 1-8 Zones 1-8 Zones Power Power max 6...

  • Page 12: Wire Installation With Kl08Nsb Wiring Centre

    II - 3 wire installation with KL08NSB wiring centre 3 wire installation with KL08NSB wiring center. Description of the operation rule: - HTRS230V(30) thermostat’s functionality is limited because of 3 wire installation. NSB function is disabled and HTRS230V(30) thermostat doesn’t work as a SLAVE group thermostat - no effect from potential MASTER thermostat, which means that it can be just a simple pump, boiler or actuator controller) PLEASE NOTE! The same operating rules apply to wiring center KL06.
  • Page 13 VS30 RT200 RT520 HTRS230V(30) HTRS230V(30) HTRS230V(30) KL08NSB 1 - 8 Strefy 1 - 8 Strefy 1 - 8 Strefy 1-8 Zones 1-8 Zones 1-8 Zones Power Pump Boiler BOILER CONNECTION* max 6 max 6 max 6 T30NC T30NC T30NC per zone per zone per zone AC 230V...

  • Page 14: A - Work With Rm-16A Relay Module - Heating Source Control

    III A - work with RM-16A relay module - heating source control VS30 RT52 HTRS230V(30) N SL (input) (wejście) (wejści RM-16A RM-16 AC 230V AC 230V Connection of a 230 V AC voltage thermostat to a boiler (or other device) with an ON - OFF contact. VS30 091FL III B - work with RM-16A relay module - connection to a solid fuel boiler controller...

  • Page 15: C - Work With Rm-16A Relay Module - Connecting An Electrical Device With A Higher Power

    III C - work with RM-16A relay module - connecting an electrical device with a higher power than the thermostat relay allows RM-16A RM-16A AC 230V AC 230V PLEASE NOTE! The maximum current consumption of an electrical device shouldn’t exceed 16A. VS30 091FL HTRS230V(30)

  • Page 16: Before You Start (First Power Up)

    3. Before you start (first power up) 3.1 LCD icon description 1. Heating mode ON 6. Automatic mode 2. Cooling mode ON 7. Frost protection mode Current active mode 8. Temperature unit 4. Comfort temperature 9. Current / set temperature 5.

  • Page 17: First Power Up Sequence

    3.3 First power up sequence To power on the thermostat you ...display will show all icons... have to connect it to the 230V power supply then..then thermostat will display the After all, the main screen will be software version. displayed.

  • Page 18: Work Modes

    4. Work modes HTRS230V(30) offers a few work modes. Frame on a given icon indicates which mode is currently active. In manual mode only one temperature level is maintained. HTRS230V(30) follows MASTER thermostat when AUTO mode is active („A” icon) - please refer to 2.5 connection description chapter. Detailed description of work modes is located below: - Frame - means that the work mode is active (the icon of the work mode must be in the center of the frame).

  • Page 19: User Settings (Basic Settings)

    5. User settings (basic settings) 5.1 Thermostat calibration Thermostat calibration is a function which allows user to recalibrate internal thermostat’s temperature sensor by a given number of degrees (in the range from -3,0 °C to 3,0 °C in 0,5 °C steps). To calibrate thermostat’s temperature sensor please follow steps below: 3 sec.

  • Page 20: Heat/Cool Mode Change

    5.2 Heat/cool mode change The heating / cooling mode for the thermostat can be changed manually or automatically via „CO” terminal. If 230V power is applied to the „CO” terminal - then thermostat automatically switches to cooling mode. If you use this function in automatic mode, set the d18 parameter value to „1”. MANUALLY: 3 sec.

  • Page 21: Installer Parameters

    6. Installer parameters To enter installer parameters please follow steps below. Please refer to parameters table description before any changes. Use buttons to move up or down between all parameters. Every change/selection confirm by button: 3 sec. 3 sec. Hold + buttons for 3 seconds to choose to enter the installer mode.
  • Page 22 Parameter Default Function Description Values Values Enable/Disable. Valve protection function is intended to protect thermostatic valves against Valve Protection getting stuck or jamming (e.g. in summer time when heating system is disa- bled). If thermostat doesn’t send a signal for heating for a period of 7 days, then heating is turned on for a very short period of time just to move the actuators.

  • Page 23: Factory Reset

    7. Factory Reset To RESET HTRS230V(30) thermostat to it’s factory default settings please follow steps below: 3 sec. 3 sec. Hold + buttons for 3 seconds buttons Press button to confirm. to enter the installer mode. to choose code „47”. Select „del”...

  • Page 24: Cleaning And Maintenance

    There are no user serviceable parts within the unit; any servicing or repairs could only be carried out by Salus Controls or their appointed agents. 9. Technical Informations...

  • Page 25: Warranty

    SALUS Controls warrants that this product will be free from any defect in materials or workmanship, and shall perform in accordance with its specification, for a period of five years from the date of installation. SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the...
  • Page 26 SALUS Controls is a member of the Computime Group. Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. Ver. 6 Issued: 21 VII 2020 Soft version: 3.0...
