- Page 1 Wired Digital Thermostat Model: HTRP230 INSTALLER MANUAL...
-
Page 2: Contents Of The Box
Contents of the box Icons used in this manual: Safety Important info Your benefit HRTP230 Thermostat Manual Contents: Box Contents Introduction Wired Digital Thermostat Model: HTRP230 Product Compliance and Safety Information Installation User Interface INSTALLER MANUAL Status/LED indication Installers notes Fixing Screws 1 x Installer Manual Warranty... - Page 3 Product Compliance and Safety Info Product Compliance SALUS Controls hereby declares that the product complies with the essential requirements of the following EC Directives: 2014/30/EU, 2014/35/EU and 2011/65/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.saluslegal.com.
-
Page 4: Product Description

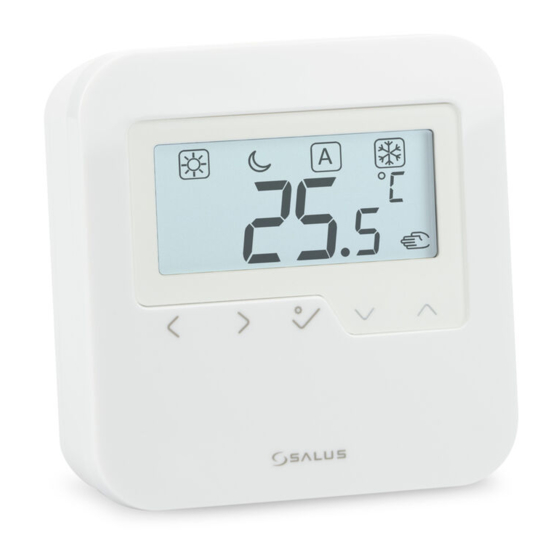

Product Description Thank you for purchasing the Salus HTRP230 Thermostat. This thermostat is a device that lets you customize the heating and cooling of your home as needed. The HTRP230 device from Salus Controls is a stylish and accurate digital room thermostat that is fitted with a large easy to read LCD screen and one touch buttons. -
Page 5: Mounting The Thermostat
1. Mounting the Thermostat Gently remove front housing. Without floor sensor With floor sensor HTRP230 Instruction Manual... -
Page 6: Terminal Connection
2. Terminal Connection Note: You can wire the thermostat directly to the KL08NSB wiring centre or to an actuator (purchased separatly). OPTIONAL EXTERNAL PROBE ACTUATOR OUTPUT E.G. TO MULTIPLE HEAT DEVICES PUMP OUTPUT 230VAC 50Hz HTRP230 Instruction Manual... - Page 7 3. Thermostat Icons BOX means to select mode. e.g. means Hi temp is selected means the Hi temp is not selected. Sunny: Hi comfortable temperature Moon: Low comfortable temperature Indicates AUTO ON or AUTO OFF Indicates that the Party Mode is active Indicates that the Holiday Mode is ON.
- Page 8 4. Thermostat Icons Continued Cool Mode indicator: The icon is flashing when cooling mode is active Temperature indicator • Display the room temperature • Display the set temp Temporary override indicator: The hand will appear until the next programs starting Programs number indicator.
-
Page 9: Button Functions
5. Button Functions Mode selection. Long press to return home without saving. OK key. Short press to confirm selection. Long press to save and return home. Long press to enter Temperature offset Heat/Cool. Decrease or increase Setpoint Temperature. Note: LCD backlight is activated by pressing any key. HTRP230 Instruction Manual... -
Page 10: Setting Date And Time
When you first power up your device you 6. Setting Date and Time will have to set up the date and time. Press Press confirm. choose 12/24 hr then press to confirm. HTRP230 Instruction Manual... - Page 11 6. Setting Date and Time Set the hour Set the minutes by using by using Press confirm. Set the date using the . Press to confirm. Note: You can access the date and hour by long pressing . After that press to confirm.
-
Page 12: Setting Your Programs
You can customise your programs by long 7. Setting Your Programs pressing when on the program screen. Set the hour using Select the desired . Press program to confirm. Repeat by pressing the procedure for Press to confirm. setting the minutes. Note: If you want to select another Program Profile (from the available 5), please enter in Installer Mode, choose option d17 and after that select the desired program. - Page 13 You can select and customise 7. Setting Your Programs any of the following programs: Program Profile 1 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program Heat set Cool set Program Program Heat set Cool set Time point point Time...
- Page 14 7. Setting Your Programs Program Profile 2 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program Heat set Cool set Program Program Heat set Cool set Time point point Time point point 6:00 Sunny Sunny 7:00 Sunny Sunny 22:30 Moon...
- Page 15 7. Setting Your Programs Program Profile 3 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program Heat set Cool set Program Program Heat set Cool set Time point point Time point point 5:00 Sunny Sunny 7:30 Sunny Sunny 8:00 Moon...
- Page 16 7. Setting Your Programs Program Profile 4 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program Heat set Cool set Program Program Heat set Cool set Time point point Time point point 6:00 Sunny Sunny 7:30 Sunny Sunny 9:00 Moon...
- Page 17 7. Setting Your Programs Program Profile 5 5 days (Monday to Friday) 2 days (Saturday to Sunday) Program Program Heat set Cool set Program Program Heat set Cool set Time point point Time point point 6:00 Sunny Sunny 7:30 Sunny Sunny 10:00 Moon...
- Page 18 8. How to reset the thermostat Press to confirm. Press the indicated keys Select P47 if you want to together for 3 seconds. reset to factory settings. Press to confirm. HTRP230 Instruction Manual...
-
Page 19: Installer Mode
9. Installer Mode Press the indicated Select P49 if you keys together for want to enter 3 seconds. Installer Mode. You have reached Press the Installer Mode. to confirm. Select your option by using Press to confirm. Note: This function allows you to customise your thermostat as you desire. In order to do this please consult the tables on the next pages. - Page 20 10. Functions explained Parameter/ Default D setting function Definition Values value PWM (Pulse-width modulation) Heating Control ON-OFF: 0.5C (± 0.25ºC) ON-OFF: 1.0C (± 0.5ºC) Room temp. offset -3.0oC to + 3.0oC Offset room temp measuring error (in 0.5ºC) 0.0ºC Out sensor probe not connected OUT sensor probe (S1/S2) Out sensor probe connected A: if d03 = 0, IN sensor controls Tr...
- Page 21 10. Functions explained 12hr 12/24 Hour Format 24hr Daylight Saving Time (DST) d12 Maximum limitation of 35ºC 5ºC - 35ºC heating setpoint d13 Maximum limitation of 5ºC 5ºC - 40ºC cooling setpoint d14 Floor sensor protection limit Turn off relay output when floor sensing temp > 27ºC 11ºC - 45ºC (heating high limit-HL)
- Page 22 10. Functions explained Select one of these 5 default programs. Once selected, default program will overwrite present program. Preset program selection Selected default program can be edited by the user in the User Setting Mode. Heat/Cool Mode Selection 0 or 1 0: No connection 1: Connection 0: Cooling allowed Cooling Blocked...
-
Page 23: Party Mode
12. Party Mode Press Press to select select the time for Party Mode. Party Mode. The maximum If you want to exit Party Mode, press time allowed on to move the (box) to a different program. the Party Mode Once Party Mode ends the countdown is 9 h 50 min and automatically resets to 0. -
Page 24: Vacation Mode
13. Vacation Mode Press Press to select select the number Vacation Mode. of vacation days. Note: Vacation Modes ends when it reaches day 0. After that the device goes back to Auto Mode. 14. Frost Mode Press if you want to Press change the Frost to select Frost... -
Page 25: Temperature Offset
15. Temperature Offset Long press in order Press to enter Press in order to to enter Settings Mode. Setting Mode. set the Temperature Offset. The Temperature Offset can be set at any value between -3ºC and +3ºC. Press to confirm. HTRP230 Instruction Manual... -
Page 26: Technical Specification
Technical Model: HTRP230 Voltage 230 V AC, +-10%, 50/60 Hz Specification Operating performance 230 V: 1,8 W Temperature setback Adjustable Temperature range 5°C – 35°C Span +/- 0,5°C Storage temperature -20°C to +60°C Ambient temperature 0 °C up to 45 °C Degree of protection IP 30 CE conformity according to... -
Page 27: Warranty
SALUS Controls sole liability for breach of this warranty will be (at its option) to repair or replace the defective product. - Page 28 SALUS Controls is a member of the Computime Group Maintaining a policy of continuous product development SALUS Controls plc reserve the right to change specification, design and materials of products listed in this brochure without prior notice. For PDF Installation guide please go to www.salus-manuals.com...
