Dräger Primus Disassembly/Assembly

Primus® Family*
Breathing System
Disassembly/Assembly

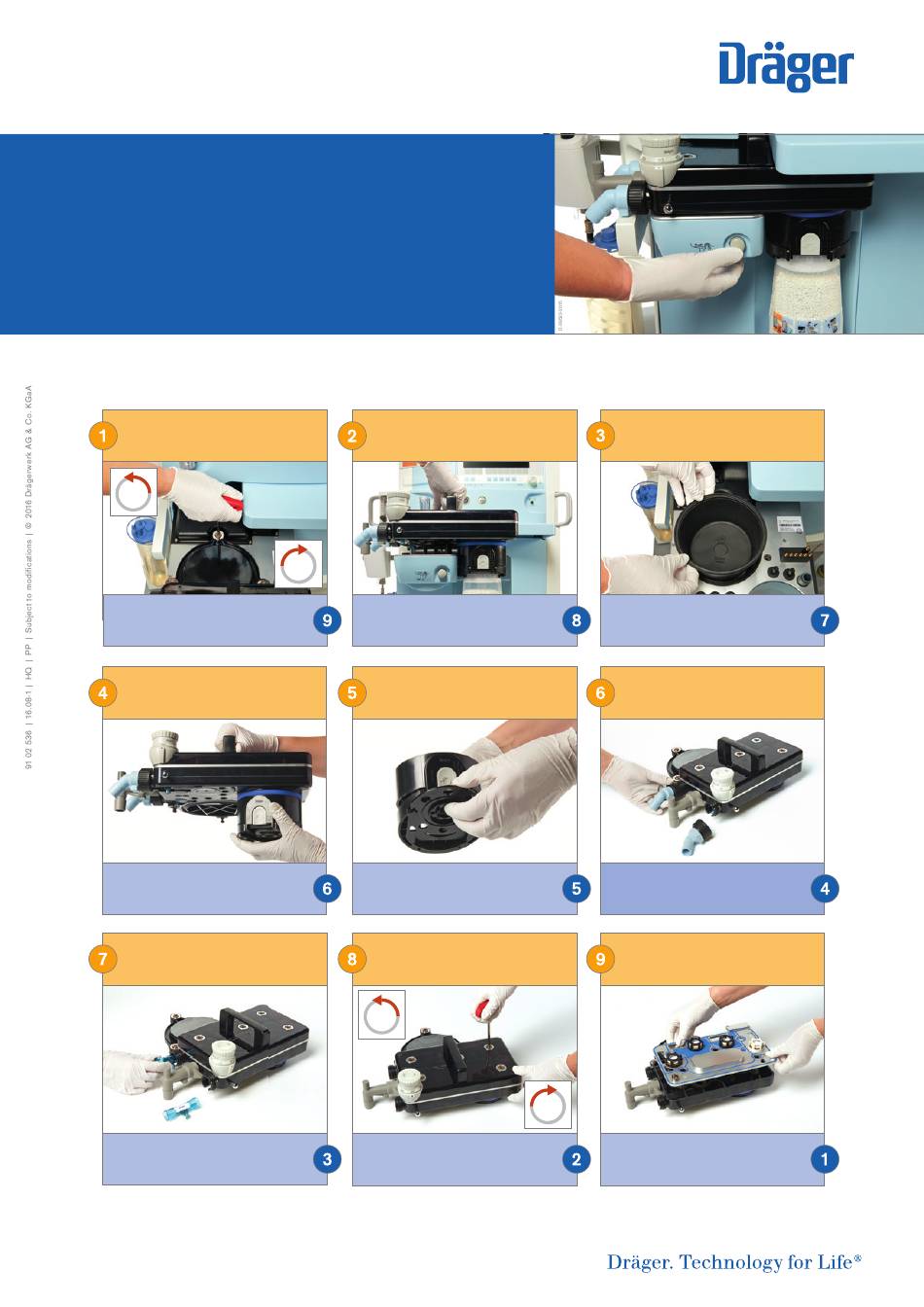

Disassembly
Loosen the three screws of the
ventilator with a hexagon key.
90°
Tighten the three screws of the
ventilator with a hexagon key.
Remove the CLIC CO
Unscrew the CLIC adapter
(optional).
Screw on the CLIC adapter
(optional). Insert the CLIC CO
Remove both flow sensors.
Insert both flow sensors.
* Primus Infinity Empowered, Primus, Pallas, Apollo
Pull the breathing system up
and out by the handle.
90°
Use the handle to insert
the breathing system into
absorber. Insert the cleaning disk into
2
the adapter. Close the adapter
until it clicks into place.
Remove cleaning disk from
the adapter. Close the adapter
2
absorber. so that it can click into place.
Loosen the five screws of the
breathing system with a screw-
driver and remove the cover.
90°
Place the cover on the breathing
system and tighten the five
screws with a screwdriver.
the mounting fixture.
90°
Remove the upper ventilator
diaphragm.
Insert the ventilator diaphragm
so that the Dräger inscription
is visible from above.
Loosen the inspiration and
expiration nozzles and pull
them off.
Put on the inspiration nozzle
and expiration nozzle and
turn to tighten.
Lift up the middle part
of the breathing system.
Place the middle part of the
breathing system on the bottom
part of the housing.
Assembly
