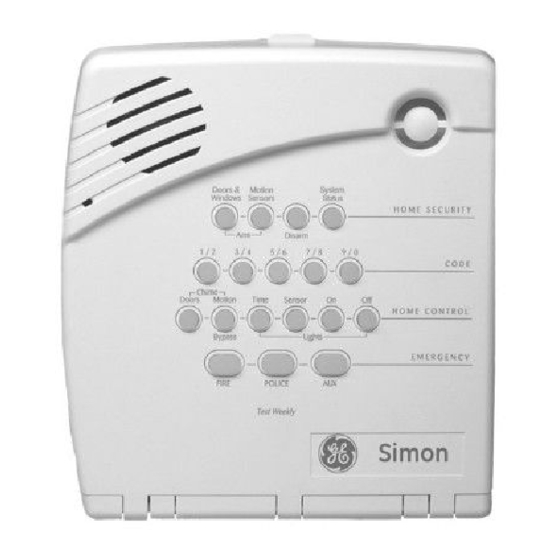

Interlogix Simon 3 User Manual
  1. Manuals
  2. Brands
  3. Interlogix Manuals
  4. Security System
  5. Simon 3
  6. User manual

Interlogix Simon 3 User Manual

Hide thumbs Also See for Simon 3:
Table of Contents

Advertisement

Quick Links

6LPRQ
 6HFXULW\ 6\VWHP
®
Document Number: 466-1871 Rev. B
August 2001
Contents
Security System Components ........................ 1
Control Panel .................................................. 1
Remote Handheld Touchpad........................... 2
Keychain Touchpad ........................................ 2
Telephone........................................................ 2
How to Use Your Control Panel.......................... 2
Home Security ................................................ 2
Code ................................................................ 3
Home Control ................................................. 3
Emergency ...................................................... 4
Panel Voice Messages ..................................... 5
Status Beeps .................................................... 5
Alarm Sirens and Lamp Modules ................... 5
Panel Indicator Lights ..................................... 5
Numeric Pager ................................................ 6
Canceling Accidental Alarms ........................ 6
How to Use an Off-Site Phone............................. 6
Phone Commands ........................................... 7
How to Use Your Touchpads ............................... 7
Remote Handheld Touchpad .......................... 7
Keychain Touchpad ....................................... 7
Programming Your System ................................. 8
Programming Instructions............................... 8
Access Codes ................................................. 9
Light Control .................................................. 9
Programming Options ...................................... 10
Option 01 - Panel Beeps .............................. 10
Option 02 - Panel Voice............................... 10
Option 03 - Latchkey Time ...........................11
Start and Stop Times .....................................11
Option 41 - Voice Chime ............................. 12
Option 42 - Speaker Level ........................... 12
Option 43 - Pager Phone Number ................ 12
Option 55 - Status Sounds ........................... 13
Trouble Beeps .................................................... 13
AC Power Failure ........................................ 13
System Battery Failure ................................ 14
Sensor Failure .............................................. 14
Sensor Low Battery ..................................... 14
Fail-To-Communicate .................................. 14
Sensor Open ................................................. 14
Sensor Tampered .......................................... 14
Option 50 Detected ...................................... 14
Siren 1 or 2 Failure ...................................... 14
System Access Alarm .................................. 14
Testing ................................................................ 14
Testing Sensors ............................................ 14
Testing Communication ............................... 15
Setting the Clock ......................................... 15
Alarm System Limitations ............................... 15
Service ......................................................... 16
Planning for Emergencies ................................ 16
Emergency Planning .................................... 16
Your Floor Plan ............................................ 16
Quick Reference Table ..................................... 18
ITI Part No. 60-875
8VHU·V 0DQXDO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Simon 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Interlogix Simon 3

Summary of Contents for Interlogix Simon 3

  • Page 1: Table Of Contents

    ITI Part No. 60-875 6LPRQ  6HFXULW\ 6\VWHP ® Document Number: 466-1871 Rev. B August 2001 8VHU·V 0DQXDO Contents Access Codes ..........9 Light Control ..........9 FCC Notices Programming Options ........10 Option 01 - Panel Beeps ......10 Introduction to Your Security System ....

  • Page 2: Fcc Notices

    Certification Number: B4Z-USA-46042-AL-T REN: .1B ITI and Simon 3 are registered trademarks of Interactive Technologies, Inc. 22 6 6 Se co n d S t r ee t N or t h No r t h Sa i n t Pa u l M n...

  • Page 3: Introduction To Your Security System

    Introduction to Your Security Sensors System Indoor Motion Sensors detect motion in a protected indoor area. When motion is detected the panel may Your security system uses wireless technology to warn respond by sounding chimes or an alarm. your family about intrusion, carbon monoxide and fire. It may also be used to control lights and appliances within Outdoor Motion Sensors detect motion in a protected your home.

  • Page 4: Remote Handheld Touchpad

    Remote Handheld Touchpad Exit Delay Exit Delay is the amount of time the system gives you to This touchpad gives you the option to enter commands exit the home before the system is armed (between 5 and from any room in your house. You can enter commands 254 seconds).

  • Page 5: Code

    Press Arm Doors & Windows button. Panel announces, System disarmed and the Disarm light will be lit. Enter Access Code (if needed). WARNING! If you enter your home and you hear alarm sirens, or Panel announces any protected doors or windows that are if controlled lights that should be off are on, an open.

  • Page 6: Home Control

    HOME CONTROL Turn Time Activated Lights off: S p e c i a l Press Time Lights button. D o o r s M o t i o n T i m e S e n s o r O f f N T R O Panel will announce, time activated light off.

  • Page 7: How Your System Communicates To You

    Status Beeps Press FIRE, POLICE, or AUX for 2 seconds (or press twice quickly) to call the central monitoring station and Exit delay and Entry delay beeps sound 4 notify them of a non-medical call for help. Doors/ times every 5 seconds and 4 times per Windows second during the last 10 seconds (if Silent &...

  • Page 8: Numeric Pager

    Panel Indicator Lights Canceling Accidental Alarms You may have up to 254 seconds (programmable by your Button When the installer) to cancel an accidental alarm. See your installer When the Button Button Light is to find out what time is programmed. If the programmed Flashes time has passed, you must call the central monitoring sta- tion to cancel the alarm.

  • Page 9: Phone Commands

    panel, you may be required to enter your access code to arm the system. Phone Commands Panel Function Phone Command Disarm Press Disarm button once and enter your access code DISARM * + CODE + 1 using the NUMERIC buttons to turn security protection off.

  • Page 10: Programming Your System

    Programming Your System Press Down The programming decals are visible when you open the panel cover (see Figure 1.). These decals are designed to make system programming easier for you. Always begin by entering your access code. Then, choose an operation from the START MENU.

  • Page 11: Access Codes

    After pressing a button on the START MENU the The panel voice responds with Master Code, press system voice will prompt you to then use the MAIN again for next access code or DONE to select or MENU. CANCEL to quit. Press the access code button again to hear the next access code.

  • Page 12: Programming Options

    The panel voice prompts you to Select from MAIN When entering a single digit option number (1-9), you MENU. Press the Light Control button on the must type a zero before the number (i.e. 01, 02, ..). All MAIN MENU. option numbers must be 2 digits.

  • Page 13: Option 03 - Latchkey Time

    Option 36: Sensor Activated Light Lockout Start Press Option #. Panel announces, Option 1, press again for next option or done to select. Time Press 02. Panel announces, Option 2 press again for Add enables sensor activated light lockout start time (mid- next option or done to select.

  • Page 14: Option 41 - Voice Chime

    Open panel cover. Panel announces, Use numbered Enter Access Code using the numbered keys. Panel keys to enter ID. announces, Please select from Start Menu. Enter Access Code using the numbered keys. Panel Press Add from the Start menu. Panel announces, announces, Please select from Start Menu.

  • Page 15: Option 55: Status Sounds

    Open panel cover. Panel announces, Use numbered Press Add from the Start menu. Panel announces, keys to enter ID. Select from main menu Enter Access Code using the numbered keys. Panel Press Option #. Panel announces, Option 1, press announces, Please select from Start Menu. again for next option or done to select.

  • Page 16: System Battery Failure

    System Battery Failure Siren 1 or 2 Failure This condition occurs if the emergency backup battery has Call your security system dealer. failed. Status beeps will start and the SYSTEM STATUS button will light. Press the SYSTEM STATUS button to System Access Alarm hear the trouble message.

  • Page 17: Testing Communication

    unsuccessful, the SYSTEM STATUS button will light and within 10 minutes the panel will announce Phone commu- nication failure. If a phone test fails, call your security sys- Testing Sensors tem dealer. Device Do This Note Door/Window Open the secured door or window. If your system is not connected to a central monitor- Sensor ing station and you don’t use a pager, you won’t be...

  • Page 18: Service

    If telephone lines are out of service. phone. Inadequate maintenance is the most common cause of alarm failure. Therefore, test your system at least once per A s m o k e d e t e c t o r s h o u l d week to be sure sensors, sirens, and phone communica- b e l o c a t e d o n e a c h l e v e l .

  • Page 20: Quick Reference Table

    Quick Reference Table Quick Reference Table Quick Reference Table Remote Handheld Key Chain Remote Remote Handheld Remote Handheld Key Chain Key Chain Remote Remote How to … How to … How to … Control Panel Control Panel Control Panel Touchpad Touchpad Touchpad Touchpad...
