Color

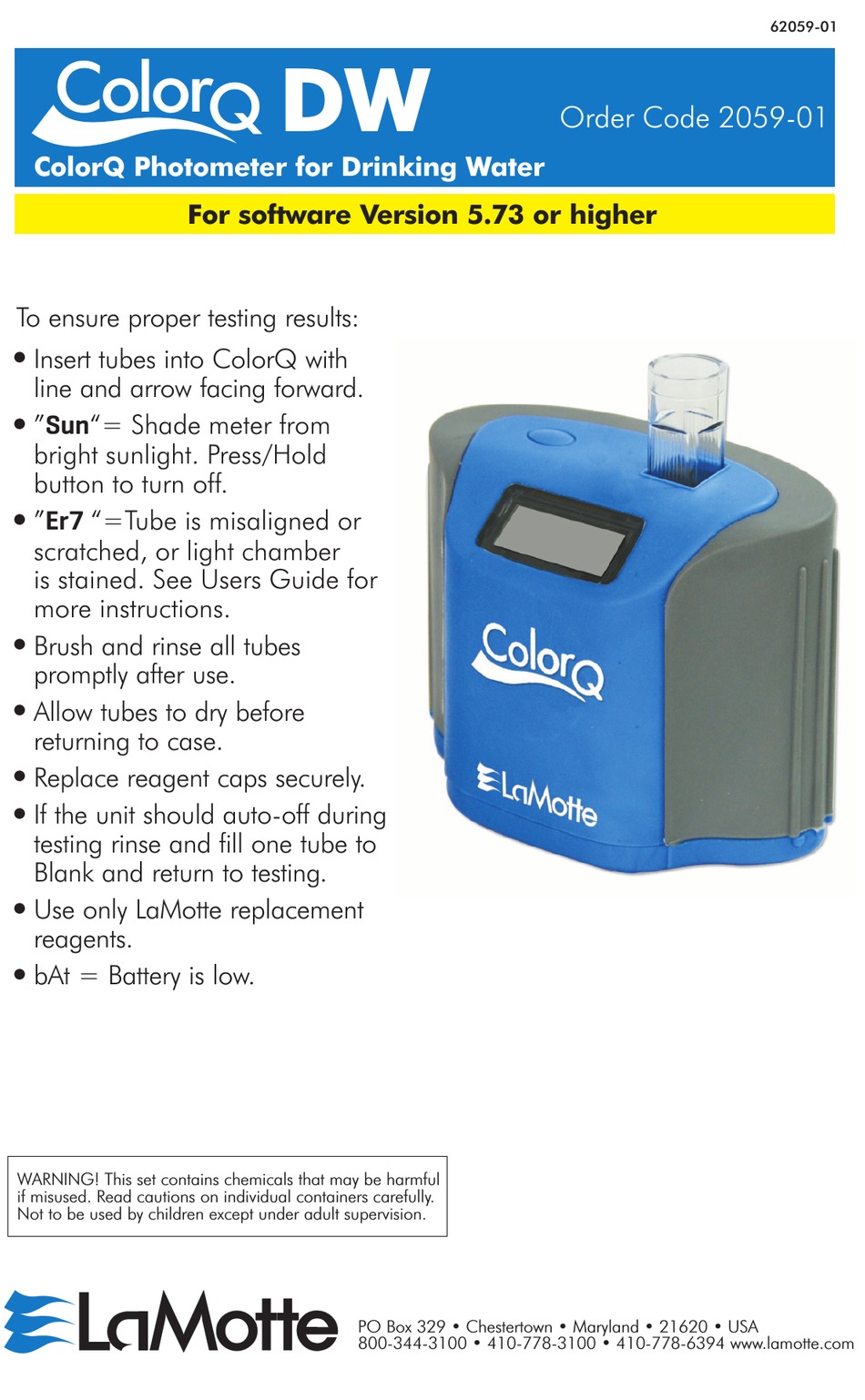

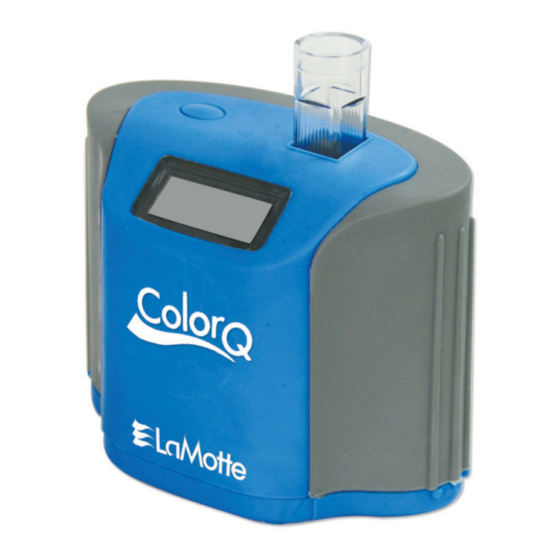

ColorQ Photometer for Drinking Water
To ensure proper testing results:
!
Insert tubes into ColorQ with
line and arrow facing forward.
!
Sun
"
"= Shade meter from
bright sunlight. Press/Hold
button to turn off.
!
Er7
"
"=Tube is misaligned or
scratched, or light chamber
is stained. See Users Guide for
more instructions.
!
Brush and rinse all tubes
promptly after use.
!
Allow tubes to dry before
returning to case.
!
Replace reagent caps securely.
!
If the unit should auto-off during
testing rinse and fill one tube to
Blank and return to testing.
!
Use only LaMotte replacement
reagents.
!
bAt = Battery is low.
WARNING! This set contains chemicals that may be harmful
if misused. Read cautions on individual containers carefully.
Not to be used by children except under adult supervision.
DW
Q
For software Version 5.73 or higher
PO Box 329 • Chestertown • Maryland • 21620 • USA
800-344-3100 • 410-778-3100 • 410-778-6394 www.lamotte.com
Order Code 2059-01
62059-01
Advertisement
Table of Contents
Related Manuals for LaMotte ColorQ DW
Summary of Contents for LaMotte ColorQ DW
- Page 1 WARNING! This set contains chemicals that may be harmful if misused. Read cautions on individual containers carefully. Not to be used by children except under adult supervision. PO Box 329 • Chestertown • Maryland • 21620 • USA 800-344-3100 • 410-778-3100 • 410-778-6394 www.lamotte.com...
- Page 2 2. Cap. Invert 3 times to mix. Insert tube into ColorQ. 3. Press button to read “pH” pH. Remove tube. *Potential health hazard. Read SDS at lamotte.com. Emergency information for all LaMotte reagents is available from Chem-Tel (US: 1-800-255-3924) (International: call collect, 813-248-0585).
- Page 3 HARDNESS ColorQ Range: 0-41 GPG *Hardness 1 Buffer: Code 7045-G Hardness 2 Indicator: Code 7046-G Color Color 1. Press button to go to “Hd” Hardness. 2. Fill a clean tube to the 5 mL line with water sample. 3. Add 5 drops Hardness 1 Buffer Hardness 2 Indicator to same tube.
- Page 4 IRON ColorQ Range: 0.0-3.0 ppm *Ir - Code 3725A-H Color Color 1. Press button to go to “Ir” Iron. 2. Fill a clean tube to the 5 mL line with water sample. 3. Add 1 IRON Tablet. Crush with tablet crusher. 4.
- Page 5 FREE CHLORINE / TOTAL CHLORINE ColorQ Range: 0.0-10.0 ppm Chlorine Fcl / +cl DPD 1 - Code 6903A-H DPD 3 - Code 6197A-H Color Color Free Chlorine and Total Chlorine 1. Press button to go to “FCL” Free Chlorine. 2. Fill a clean tube to the 5 mL line with water sample. 3.
- Page 6 SULFIDE ColorQ Range: 0.0-3.0 ppm * Sulfide Reagent A: Code V-4458LWT-G * Sulfide Reagent B: Code V-4459-E Sulfide Reagent C: Code 4460LWT-G Color Color 1. Press button to go to “SuL” Sulfide. 2. Fill a clean tube to the 5 mL line with water sample. 3.
- Page 7 NITRATE-NITROGEN ColorQ Range: 0-15 ppm *Nitrate - Code 3884A-H Color Color 1. Press button to go to “nit” Nitrate. 2. Fill a clean tube to the 5 mL line with water sample. 3. Add 1 NITRATE Tablet. Crush with tablet crusher. Immediately slide tube into Protective Sleeve.
- Page 8 Support Section then Reagent replace TWO AA style batteries. Replace Refills/Shelf Life at www.lamotte.com. screws securely but do not over-tighten Low pH Low pH levels can significantly screws which can tear the rubber base.
