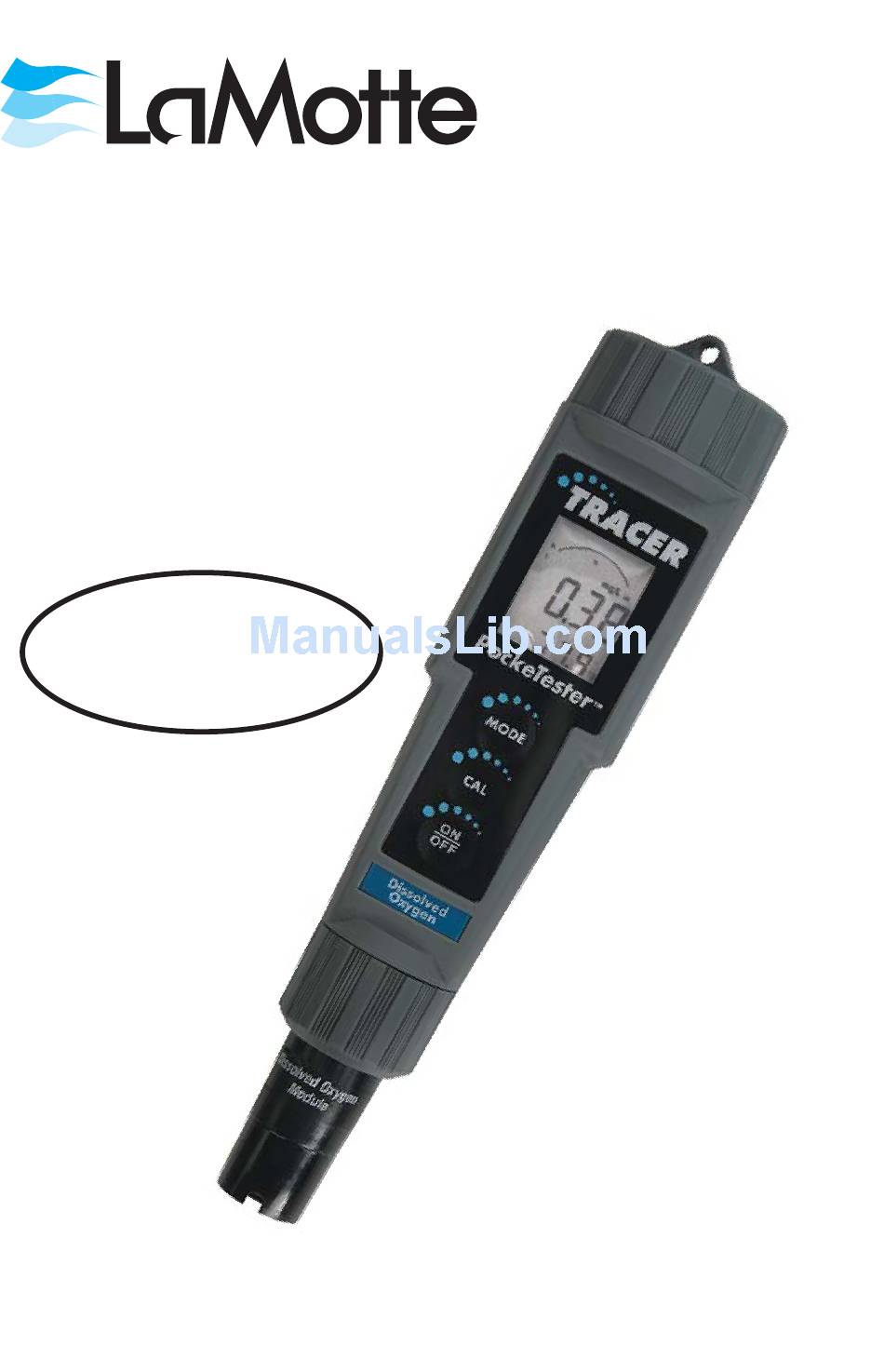

DISSOLVED OXYGEN TRACER POCKETESTER See Short form Instruction on the back cover. Read the entire manual before use. CODE 1761... - Page 2 WARNING! This set contains chemicals that may be harmful if misused. Read cautions on individual containers carefully. Not to be used by children except under adult supervision...
-
Page 3: Table Of Contents
TRACER DISSOLVED OXYGEN • CODE 1761 Table of Contents Introduction ....... . Specifications . -
Page 4: Introduction
INTRODUCTION Congratulations on your purchase of the Dissolved Oxygen/Temperature Tracer. Units of measure are % saturation, mg/L or ppm for dissolved oxygen and °C or °F for temperature. Advanced features include data hold, 25 point memory, auto shut off, automatic temperature compensation, and salinity/altitude compensation. -
Page 5: Contents
CONTENTS Dissolved Oxygen TRACER Kit Code 1761 Includes: DO TRACER Body DO Bonded Membrane Cap Assemblies (2) Electrolyte Solution Code D0600-EL Sample cup Lanyard PARTS & ACCESSORIES DO Replacement Sensor Kit (sensor module, Code1762 membrane cap assembly, electrolyte solution) DO Membrane Cap Kit (6 membrane cap Code 1761M assemblies, electrolyte solution, Polishing Strips) DO Extension Cable, 1 meter (with probe guard... -
Page 6: Meter Description
METER DESCRIPTION Front Panel Description Battery compartment cap LCD display MODE/HOLD button – change mode, hold data, store data CAL/RECALL button – calibration, change temperature units, recall data ON/OFF button Electrode retaining collar Dissolved oxygen sensor Bonded membrane cap assembly Membrane Cathode (Note: The electrode storage cap is not shown.) Bottom View of Electrode... -
Page 7: Set Up
SET UP Polarization It will take 2-3 minutes for the probe to polarize. When the meter is first turned on very high oxygen readings will be displayed. However, these readings will drop to a steady state as oxygen that was absorbed in the electrolyte solution, while the meter was turned off, is reduced. -
Page 8: Measuring Dissolved Oxygen
The electrode membrane must be clean and dry or the calibration will be incorrect. Moisten the sponge in the electrode storage cap with distilled or tap water. The sponge should be moist but not soaked. Place the electrode storage cap on the meter. When the reading is stable, press and hold the CAL/RECALL button for 2 seconds until CAL appears on the display. -
Page 9: Changing The Temperature Units
Turn-On Diagnostics When the meter is turned on, the “SELF” and “CAL” will be displayed and the meter will enter into a diagnostic mode. During this time the meter will recall the User Calibration data, perform self-diagnostics and initialize the circuitry. -
Page 10: Data Hold
% saturation dissolved oxygen, mg/L dissolved oxygen, ppm Release the MODE/HOLD button when the desired mode is displayed. The meter will return to the measurement mode. Note: The measurement units cannot be changed while the HOLD function is on. If “HOLD” is displayed in the lower left corner of the display, briefly press the MODE/HOLD button to turn the HOLD function off. -
Page 11: Clearing Stored Memory
MODE/HOLD button. If there is no data stored in the memory, “END” will be displayed briefly and the meter will return to the previous mode. Clearing Stored Memory Turn the TRACER on. Press and hold the ON/OFF button for 4 seconds. The display will briefly display “clr”... -
Page 12: Calibration
When the reading is stable. Press and hold the CAL/RECALL button for 2 seconds until CAL appears on the display. Release the button. The display will blink until it is stable. 101.7% and “SA” will appear on the display. When the calibration is complete, “END” will appear on the display and the meter will return to the measurement mode. -
Page 13: Operational Matrix
OPERATIONAL MATRIX Function/Resulting Power Mode Button Press Action Sequence On/Off On or Momentary press of ON/OFF button Water Saturated Air Place electrode in Calibration calibration cap. Press and hold CAL/RECALL button for 2 seconds Zero Calibration Place electrode in zero solution. - Page 14 Function/Resulting Power Mode Button Press Action Sequence Enter Salinity Press and release Compensation CAL/RECALL button twice. Displays SAL Change Salinity Momentary press of Compensation MODE/HOLD button. Each press increases by 1 ppt from 0 to 50 ppt. Exit Salinity Press and release Compensation CAL/RECALL button for 2 seconds to enter...
-
Page 15: Maintenance
Function/Resulting Power Mode Button Press Action Sequence Override Auto Momentarily press CAL/RECALL button Power Off then simultaneously press and hold ON/OFF and MODE/HOLD until oFF is displayed. Defeat Override Simultaneously press ON/OFF, CAL/RECALL, and MODE/HOLD momentarily. dFLt will be displayed. MAINTENANCE Battery Replacement Twist off the battery compartment cap. -
Page 16: Electrode Cleaning Recommendations
Electrode Cleaning Recommendations Contaminant Cleaning Solution Procedure Salt build-up Deionized water Soak in 20% or weaker Acetic Acid solution for 1 minute. Rinse thoroughly with DI water. Warm water and Clean with mild household detergent detergent solution. Rinse thoroughly with DI water. - Page 17 Remove a new membrane cap assembly from the red storage container. Do not touch the membrane part of the assembly as skin oils with interfere with the oxygen permeability rate of the membrane. Set the membrane cap assembly on a flat surface. Fill the membrane cap assembly with Electrolyte Solution (DO600-EL) to the bottom of the threads on the inside of the cap.
-
Page 18: Troubleshooting
TROUBLESHOOTING Problem Cause Action Power on but no display Batteries Insert batteries or remove tab Batteries Verify correct polarity Batteries Replace low or dead batteries “BAT” message Batteries Replace weak batteries Unstable readings Insufficientor Replace electrolyte, and depleted membrane cap assembly if electrolyte needed Readings drift down... -
Page 19: Warranty
The electrode is guaranteed to be free from defects in material and workmanship for a period of six (6) months from the original purchase date. In the event that a defect is found during the warranty time frame, LaMotte Company agrees that it will be repaired or replaced without charge except for the transportation costs. -
Page 20: Short Form Instructions
Turn meter off. Rinse electrode with deionized water. Replace cap. LaMOTTE COMPANY Helping People Solve Analytical Challenges ® PO Box 329 • Chestertown • Maryland • 21620 • USA 800-344-3100 • 410-778-3100 (Outside U.S.A.) • Fax 410-778-6394 Visit us on the web at www.lamotte.com 1761-MN · 10.08...
