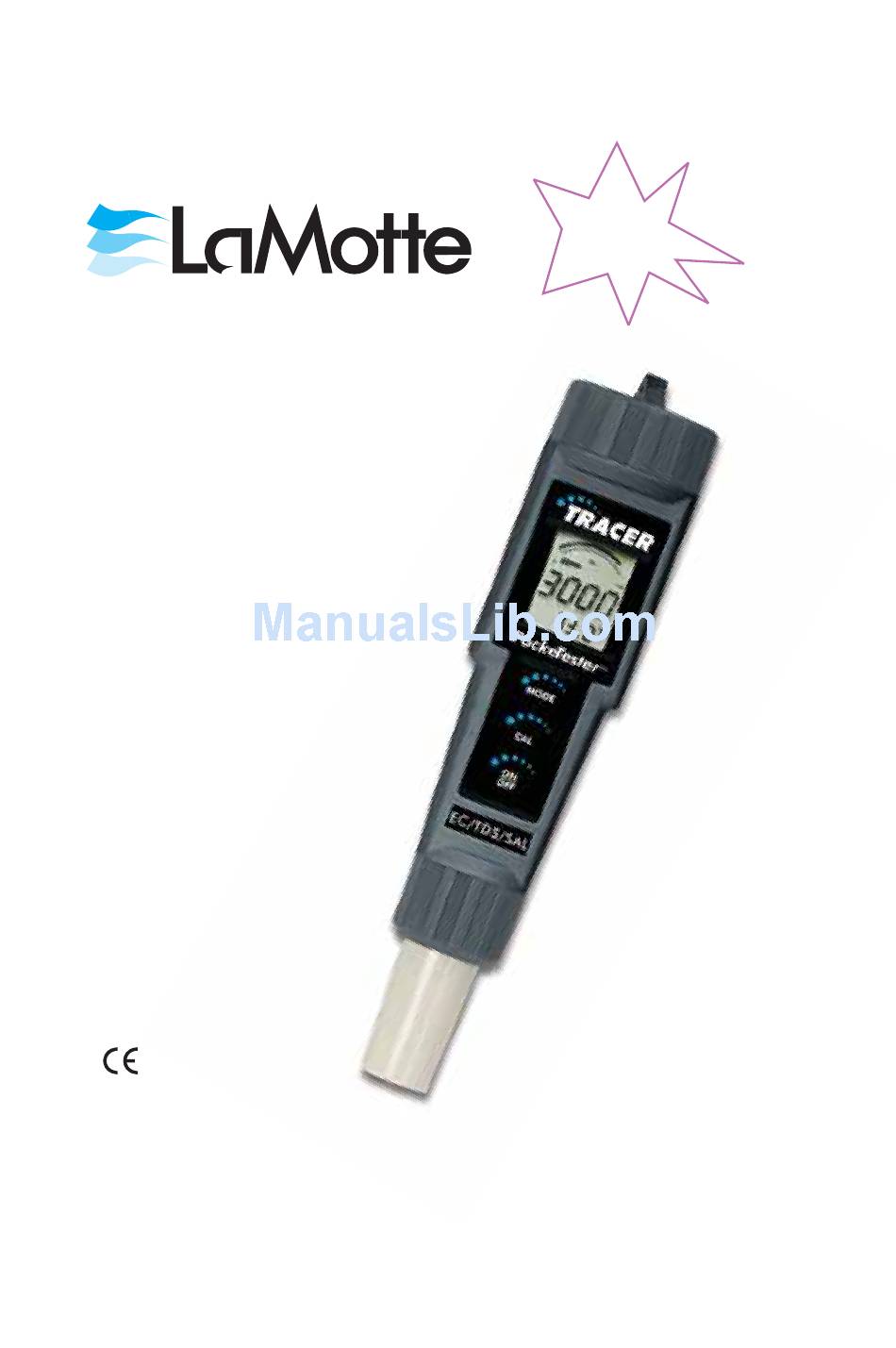

  • Page 1 NEW! Direct Reading TDS and Salt! EC/TDS/SAL TRACER POCKETESTER CODE 1749 Conductivity/TDS/Salinity/Temperature/Meter...
  • Page 2 WARNING! This set contains chemicals that may be harmful if misused. Read cautions on individual containers carefully. Not to be used by children except under adult supervision...

  • Page 3: Table Of Contents

    TRACER EC/TDS/SAL POCKETESTER • CODE 1749 TABLE OF CONTENTS Introduction ......4 Specifications .

  • Page 4: Introduction

    INTRODUCTION Congratulations on your purchase of the EC/TDS/SAL (Electro Conductivity/Total Dissolved Solids/Salinity) TRACER PockeTester. The TRACER is a revolutionary, first of its kind measurement device that offers direct reading of conductivity, TDS and salinity with one electrode. Careful use and maintenance will provide years of reliable service.

  • Page 5: Contents

    CONTENTS EC/TDS/SAL TRACER PockeTester Kit Code 1749 Includes: Conductivity Standard, 12,880 µS Code 6317-G Sample Cup w/cap † † Not sold individually. See below. PARTS & ACCESSORIES EC/TDS/SAL Replacement Electrode Code 1765 Weighted Stand w/Sample Cups (5) Code 1746 Sample Cups w/caps (24) Code 1745 Conductivity Standard, 84 µS...

  • Page 6: Meter Description Front Panel Description

    METER DESCRIPTION Front Panel Description 1. Battery compartment cap 2. LCD Display 3. MODE/HOLD button - change mode, hold data, store data 4. CAL/RECALL button - calibration, change temperature units, recall data 5. ON/OFF button 6. Electrode Collar 7. Electrode (Note: The Electrode cap is not shown) TRACER Display 1.

  • Page 7: Basic Operation Powering The Tracer

    BASIC OPERATION Powering the TRACER The Tracer uses four CR2032 Lithium Ion batteries. If the batteries are weak, the BAT indicator will appear on the display. Press the ON/OFF key to turn the TRACER on or off. The auto power off feature will shut the TRACER off automatically after 10 minutes after the last button push.

  • Page 8: Changing The Displayed Tempreature Units

    Changing the Displayed Temperature Units To change the displayed temperature units between °F or °C: 1. With the TRACER off, press and hold the CAL/RECALL button. 2. With the CAL/RECALL button pressed, momentarily press the ON/OFF button. When SELF CAL appears in the display, release the CAL/RECALL button.

  • Page 9: Testing Getting Started

    TESTING Getting Started 1. Remove the cap from the bottom of the TRACER to expose the electrode. 2. Before the first use, rinse the electrode in deionized water and dry. 3. For best results, calibrate for conductivity with a standard in the expected range of the sample.

  • Page 10: Measurement

    Measurement 1. Fill a sample cup to the 20 mL line with the test sample. Sample depth must be greater than or equal to 1.5 inches. 2. Immerse the TRACER electrode in the sample. Make sure the electrode is completely submersed. 3.

  • Page 11: Storing Readings

    7. Press the ON/OFF button to turn the TRACER on. Make sure the meter is in the TDS mode. 8. Immerse the electrode in the filtrate. Make sure the tip of the electrode is completely immersed. 9. Stir the filtrate with the electrode to create a homogeneous solution. 10.

  • Page 12: Calibration

    Clearing the Stored Memory Turn the TRACER on. Press and hold the ON/OFF button for 4 second the display will briefly desplay “clr” when the memory is cleared. CALIBRATION For the most accurate results, allow sufficient time for the temperature of the probe to reach the temperature of the sample before calibrating.
  • Page 13 NOTE: Each time the calibration mode is entered all calibration range indicators will be cleared, but only the calibration data for the currently selected range will be replaced. The calibrations for the other two ranges will be saved even though the indicators for those ranges are no longer displayed.

  • Page 14: Operational Matrix

    OPERATIONAL MATRIX Function/Resulting Action Power Mode Key Press Sequence On/Off On or Momentary press of ON/OFF button Calibration Press & hold CAL/RECALL button for 2 seconds until CAL is displayed Store Reading Momentary press of MODE/HOLD button Hold Release Hold Momentary press of MODE/HOLD button Enter Memory...
  • Page 15 Function/Resulting Power Mode Key Press Sequence Action Enter CON/TDS Press and release the Ratio (ppm CAL/RECALL button twice in quick succession. mg/L) Change Press and release the CON/TDS (ppm CAL/RECALL button twice Ratio in quick succession. mg/L) Momentary press of MODE/HOLD button.

  • Page 16: Maintenance Storage

    MAINTENANCE Storage 1. Rinse the electrode in distilled or deionized water. 2. Store the electrode dry with the cap on. 3. Always rinse the electrode in deionized water between measurements to avoid cross contamination. Double rinsing is recommended when high accuracy is required. Battery Replacement 1.
  • Page 17 Electrode Cleaning Recommendations Do not soak the electrode in the solutions for longer than the recommended length of time. To do so may cause a reference potential shift which will cause a degradation in performance or failure. When cleaning the probe, do not scratch or damage the platinized electrode surfaces.

  • Page 18: Troubleshooting

    TROUBLESHOOTING Problem Check Action Reading is frozen HOLD mode Press MODE/HOLD button to exit HOLD mode “BAT” message Batteries low Replace batteries Meter will not Trapped air Tap probe or stir sample to bubbles release air bubbles calibrate in conductivity mode Dirty probe Clean conductivity probe Damaged probe...

  • Page 19: Warranty

    WARRANTY LaMotte Company warrants this instrument to be free of defects in parts and workmanship for 1 year from the date of shipment and the probe to be free of defects in parts and workmanship for 6 months from the date of shipment.
  • Page 20 LaMOTTE COMPANY Helping People Solve Analytical Challenges ® PO Box 329 • Chestertown • Maryland • 21620 • USA 800-344-3100 • 410-778-3100 (Outside U.S.A.) • Fax 410-778-6394 Visit us on the web at www.lamotte.com 1749-MN • 03/10...
