DESCRIPTION

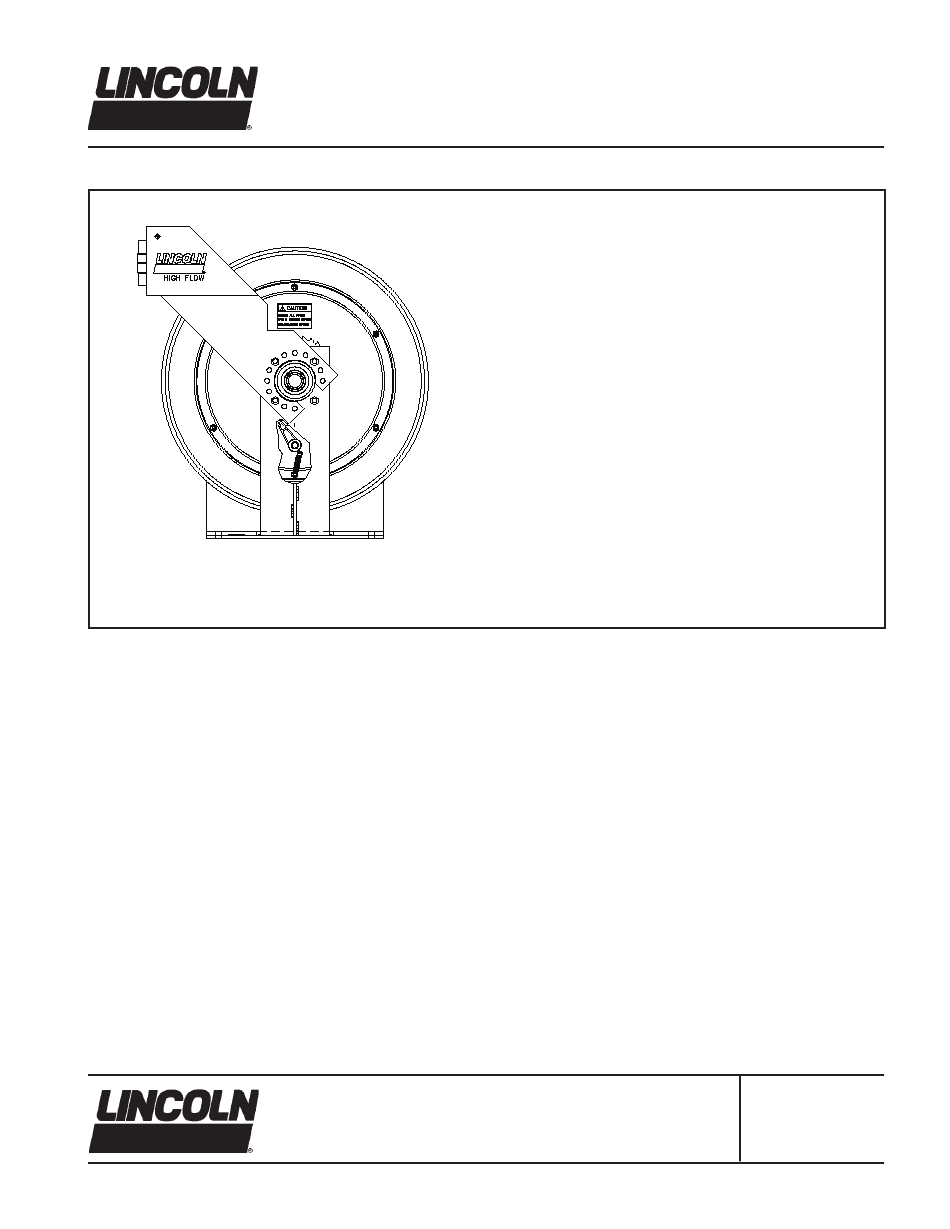

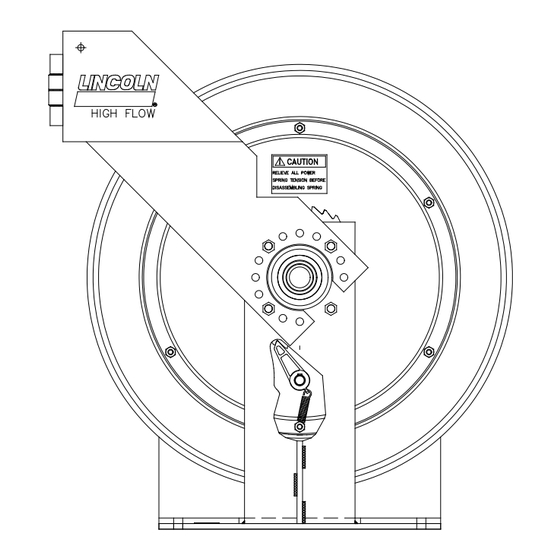

Model 84673 unit is a heavy duty lubreel designed for
bus and truck lubrication or wherever extra heavy duty
construction and longer length delivery hose is required.
The reel can be installed as a single unit or in multiple
configurations.
Reel features include a reel latch that automatically
locks at desired positions as the hose is extended and
releases with a short pull on the hose.
OWNER/OPERATOR RESPONSIBILITY
It is the owner/operator responsibility to properly use
and maintain this equipment.
The instructions and warnings contained in this manual
FEB - 2007
To order call 1-800-548-1191 or visit www.partdeal.com - info@partdeal.com
OWNER/OPERATOR MANUAL
SPECI FICATIONS
Maximum working pressure
Material Inlet
Material outlet
Sheave width
Sheave diameter
Drum diameter
Overall width
Overall height
Overall depth
Maximum hose capacities (Including hang down):
5/8" or 3/4" I.D. Hose
NOTE: Maximum hose capacities are based on SAE speci-
fied hoses. Exceeding these capacities voids warranty. Refer
to DELIVERY HOSE INSTALLATION for proper hose to reel
assembly.
shall be read and understood by the owner/operator
prior to operating this equipment.
If an owner/operator does not understand English, the
contents of this manual shall be explained in the owner/
operator native language to assure the owner/operator
comprehends.
It is the owner/operator responsibility to maintain the leg-
ibility of all warning and instruction labels.
The owner/operator shall retain this manual for fu-
ture reference to important warnings, operating and
maintenance instructions.
One Lincoln Way
St. Louis, MO 63120-1578
Customer Service +1.314.679.4200
Fax +1.800.424.5359
Form 404031
MODEL 84673
BARE REEL
SERIES "C"
2000 p.s.i.
3/4" NPT (Female)
NPT (Female)
3/4"
10"
19-1/4"
12-3/4"
15-1/2"
22-1/2"
21"
75 Ft.
- E35
Section
- 43D
Page
