Lincoln C Series Owner's/Operator's Manual

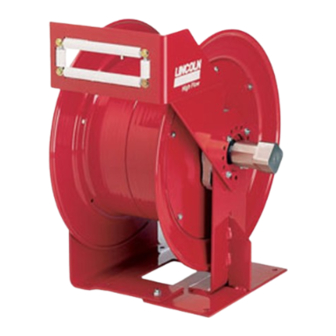

Bare reel

Hide thumbs Also See for C Series:

Download this manual

DESCRIPTION

OWNER/OPERATOR RESPONSIBILITY

June 2002

OWNER/OPERATOR MANUAL

SPECI FICATIONS

Form 422680

The owner/operator shall retain this manual for

future reference to important warnings, operating

and maintenance instructions.

MODEL 84673

BARE REEL

SERIES “C”

3/4”

- E35

Section

- 43B

Page

Table of Contents

Need help?

Do you have a question about the C Series and is the answer not in the manual?

Page 1 MODEL 84673 BARE REEL SERIES “C” OWNER/OPERATOR MANUAL SPECI FICATIONS 3/4” DESCRIPTION OWNER/OPERATOR RESPONSIBILITY The owner/operator shall retain this manual for future reference to important warnings, operating and maintenance instructions. - E35 Section - 43B Page June 2002 Form 422680...
Page 2 ASSEMBLY Page Number - 2 Form 422680...
Page 3: Important Instructions
INSTALLATION DELIVERY HOSE DELIVERY HOSE INSTALLATION (MAXIMUM IMPORTANT SPRING TENSION) INSTRUCTIONS Allow reel to retract two full revolutions and latch reel. Page Number - 3 Form 422680...
Page 4: Adjusting Spring Tension
ADJUSTING SPRING TENSION ATTACHING CONNECTING HOSES Page Number - 4 Form 422680...
Page 5: Limited Warranty
REEL INSTALLATION AND DISASSEMBLY ADJUSTMENT REPAIR LIMITED WARRANTY SAFETY INFORMATION PRESSURE RELIEF PROCEDURE INSPECTION Page Number - 5 Form 422680...
Page 6 272161 272163 272160 (2 Req’d) (4 Req‘d) (2 Req’d) 272040 (22 Req’d) 248494 237673 237671 3/4 NPTF Outlet 48385 (4 Req’d) 242015 (Shim as Req’d) 242000 48217 50016 (4 Req’d) 3/4 NPTF Inlet 237784 272169 84679 242725 242738 237781 68424 51010 (3 Req’d) 50014 (4 Req’d) (Torque to...
Page 7 237695 1 Spring, Extension 272382 1 Clamp, Hose (for 3/4" ID Hose) 237738 6 Bolt, Carriage 1/4-20 x 1/2 GR5 565223 1 Label, Logo Lincoln 237739 1 Bolt, Carriage 1/4-20 x 1 GR5 565253 1 Label, Caution 237769 1 Arbor and ratchet casting...
Page 8 Page Number - 8 Form 422680...

84673
