In Figure's example, we'll associate LED ballasts with short addres 0, 1 and 2 and Emergency light with short
address 5 to existing ballasts (with '<-' button), and add ballasts from short addresses 3 and 4 as new ballasts in
the configuration.
A.12
Figure
Figure above shows the result. Now configured ECG's contains actual ballasts in the installation, each with its own
short addres. At this point, it's possible to:
Remove the ballast from configuration (button '->'). This will move them back to 'DALI Network'
-
area.
Wink the ballast to identify it in the installation (button 'Wink', on each ECG).
-
Get the ballast configuration parameters (button 'Get' on each ECG, or 'Get All' below the window).
-
Warning, getting the configuration of a ballast will overwrite all configured parameters in MAPS config
for that ballast (preset levels, group addressing, scenes, ...)
Set the ballast configuration parameters for each ballast (button 'Set' on each ECG, or 'Set All'
-
below the window).
Check status for each ballast (if it's online, if it reports failure, etc).
-
Finally, pressing button 'Apply' will apply all changes to actual configuration in MAPS, and close the window.
Keep in mind that process done at window DALI commissioning changes configuration of parameters in DALI
network, but it's still necessary to configure further parameters in Intesis and sending configuration file to Intesis
using 'Send/Receive' tab of configuration section.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice

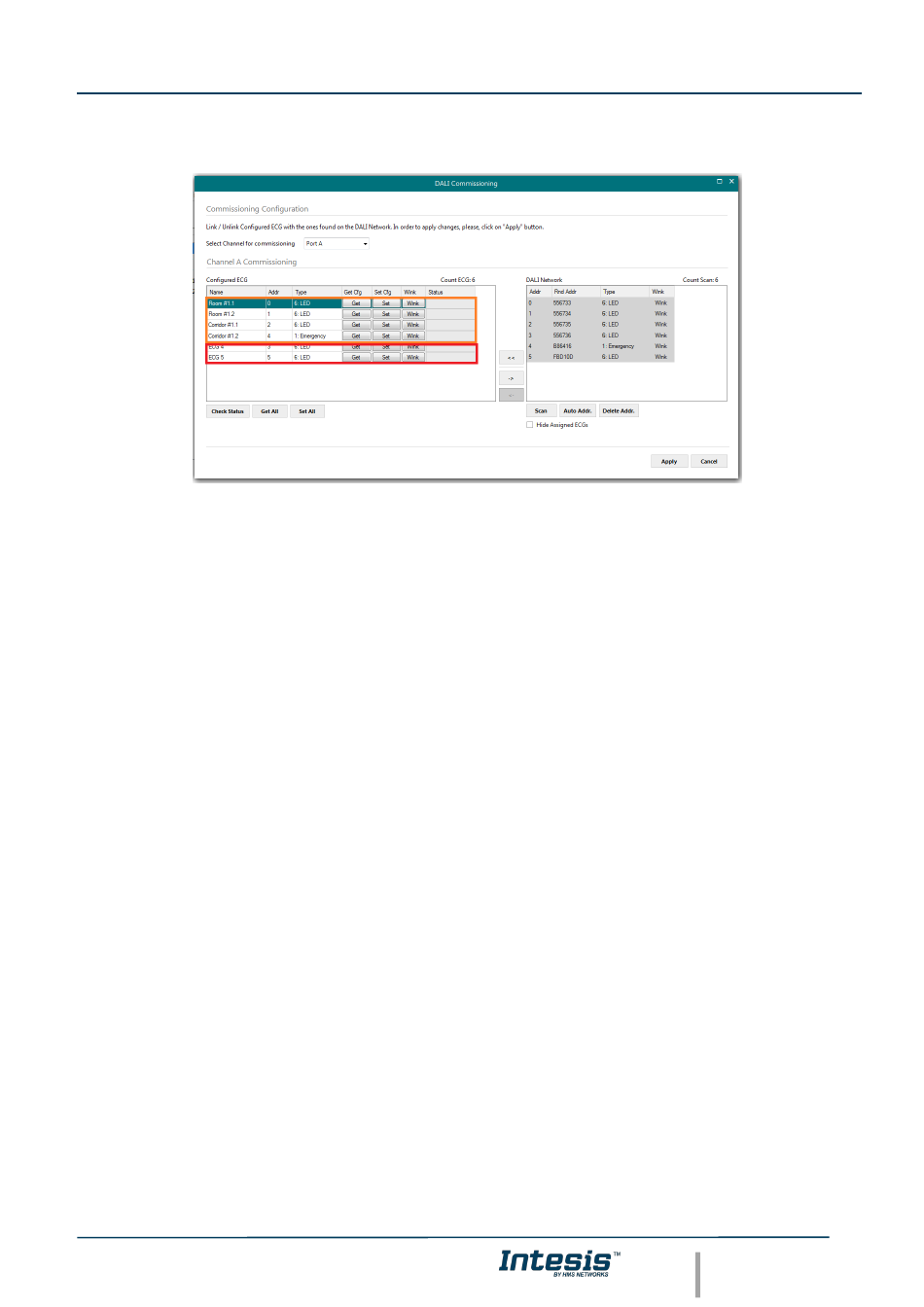

Result after moving scanned ballasts to 'Configured ECG window'
