Finally, click on button 'Connect' in order to establish connection. Bar at the bottom in MAPS main window will
become green, switching from 'Not Connected' to 'Connected'.
Now go back to 'Configuration' tab of MAPS, and click on button 'Commissioning':
Commissioning window will appear:
If having product version / template project supporting 2 DALI channels, channel to commission must be selected
between 'Port A' (top of the device) or 'Port B' (bottom of the device). In case of version supporting single DALI
channel, no selection is possible.
Also, if ballasts have been added to the configuration (see previos section 'ECG declaration in project') a list of
ballasts will appear in Configured ECG.
© HMS Industrial Networks S.L.U - All rights reserved
This information is subject to change without notice
A.6
Figure

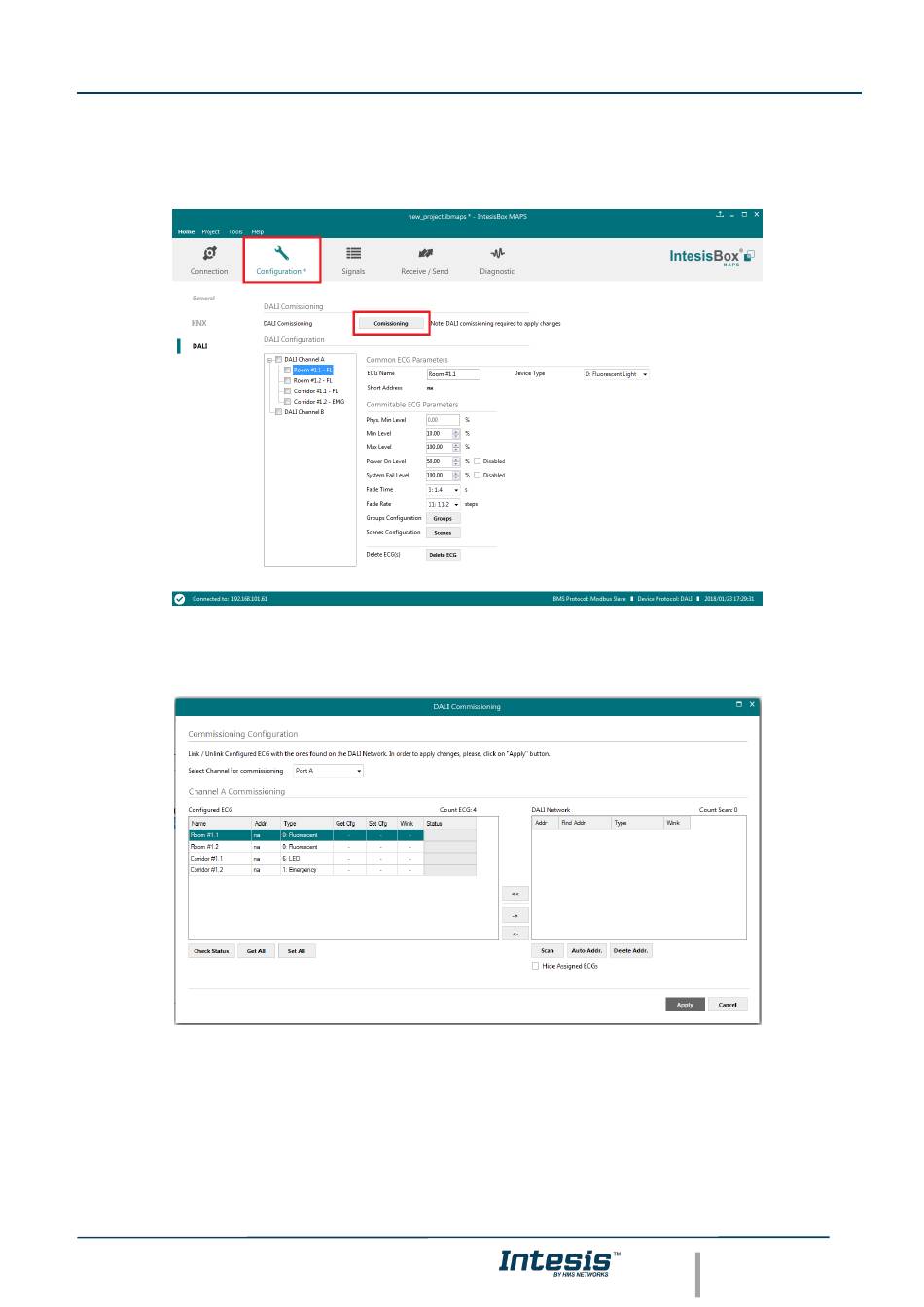

DALI commissioning button
